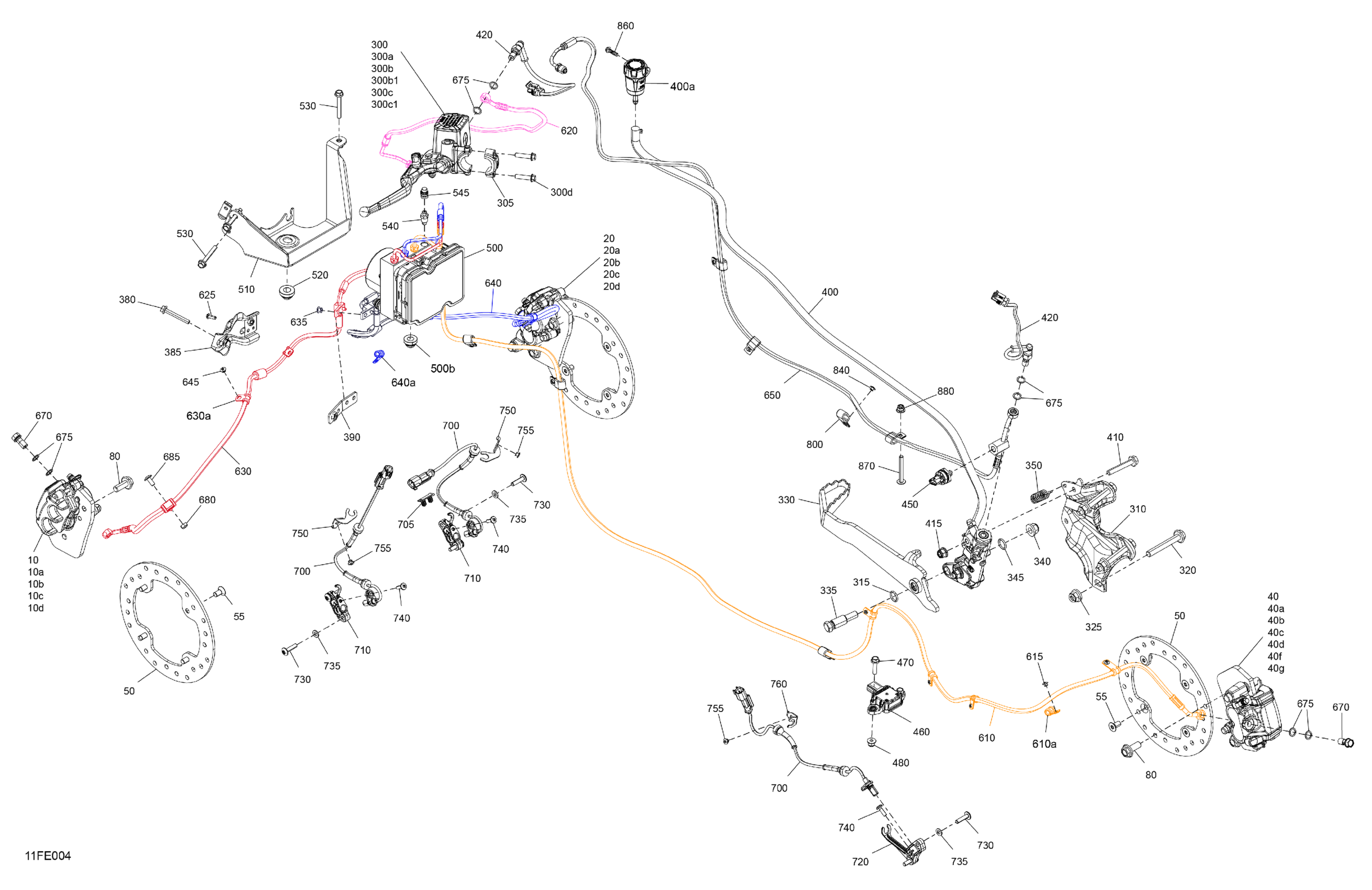

Can-Am CE - OUTL-PRO - 4X4 - XU - HD7 - 1MSF - Compass Green - 2025 Mechanic - Brake System Diagram

LH Front Brake Caliper | Includes 10 to 10d

705601808

$258.43

LH Pad Brake

705602070

Unavailable

Pin Set

705601016

$9.98

Bleeding Screw

705601017

$6.45

Retaining Spring

705601018

$7.98

RH Front Brake Caliper | Includes 20 to 20d

705601809

$256.49

PAD_BRAKE R - Call your local BRP dealership

705602071

Unavailable

Pin Set

705601016

$9.98

Bleeding Screw

705601017

$6.45

Retaining Spring

705601018

$7.98

RH Rear Brake Caliper | Includes 40 to 40d

705601811

$258.43

PAD_BRAKE R - Call your local BRP dealership

705602071

Unavailable

Pin Set

705601016

$9.98

Bleeding Screw

705601017

$6.45

Retaining Spring

705601018

$7.98

PAD_BRAKE R - Call your local BRP dealership

705602071

Unavailable

RH Pads Kit

705602168

$50.74

Disc Brake

705601997

$85.49

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

Hex. Flange Screw M10 X 25

207502546

$1.74

LH Front Brake Master Cylinder | Includes 300 to 300d

705602312

$230.74

Master Cylinder Lever

705602075

$50.74

Clamp And Screw Kit

507032477

$22.79

Hex. Flange Screw M6 X 25

250000447

$2.06

Cap Set

219800096

$20.89

Screw M4 X 20

415129356

$2.17

Hex Flange Screw M6 X 25

229000711

$2.31

Clamp And Screw Kit

507032477

$22.79

Master Cylinder Support

705207200

$32.28

O-Ring Seal

293300286

$3.98

Hex. Flange Screw M10 X 70

207607046

$2.91

Hex. Flange Elastic Nut M10

233201436

$1.74

Brake Pedal

705602192

$54.58

Shoulder Screw M10

250001311

$6.55

Hex. Flange Elastic Nut M10

233201436

$1.74

O-Ring Seal

293300285

$3.98

Brake Pedal Spring

705600792

$9.22

Hex. Flange Screw M6 X 45

207664544

$1.07

Hose Support

705602234

$7.37

Hose Support

705602235

$7.37

Rear Brake Master Cylinder Ass'y | Includes 400 to 400a

705602297

$253.82

Brake Fluid Reservoir

705602137

$226.12

Hex. Flange Screw M8 X 50

207685044

$1.39

Hex. Flange Elastic Nut M8

233281414

$1.14

Brake Switch

705601669

$50.74

Oil Pressure Sensor

705602044

$92.28

Yaw Rate Sensor

710005658

$166.12

Hex. Flange Screw M6 X 25

207662554

$1.48

Hex. Flange Elastic Nut M6

233261466

$1.66

MOD ESP WET PROG & GROMMET KIT | Includes 500 to 500b

703501266

$1,453.82

Vibration Damper

710009090

$10.14

Module Support

705602000

$23.05

Vibration Damper

710009090

$10.14

Hex. Flange Screw M6 X 45

207664544

$1.07

Purge Screw M12 X 1.0

705602133

$11.98

Bleeder Bolt Cap

705601190

$4.28

RH Rear Caliper Hose | Includes 610 to 610a

705602240

$78.43

Clamp

293650256

$4.36

Pop Rivet 3/16 X ,425

293150293

$0.26

LH Front Master Cylinder Hose

705602247

$83.05

Screw-Torx Button Head M5 X 14

235551454

$7.31

LH Front Caliper Hose | Includes 630 to 630a

705602236

$78.43

Clamp

293650256

$4.36

Pop Rivet 3/16 X ,425

293150293

$0.26

RH Front Caliper Hose | Includes 640 to 640a

705602237

$78.43

Clamp

293650256

$4.36

Pop Rivet 3/16 X ,425

293150293

$0.26

Rear Master Cylinder Hose

705601835

$83.05

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

Washer

414920600

$1.52

Elastic Stop Nut M6

232561434

$1.55

Torx Truss M6X14

250000789

$4.41

Speed Sensor

710006981

$78.43

Clip (double dart)

278002910

$11.06

Molded Sensor Support

705402628

$2.98

Molded Sensor Support

705601955

$2.98

Torx Truss Screw M6 X 25

250000807

$1.74

Flat Washer 6 mm

234061410

$1.04

Torx Screw K50 X 16

250000720

$1.39

Sensor Support

705602166

$2.98

Pop Rivet 3/16 X ,425

293150293

$0.26

Sensor Support

705601986

$2.98

Clamp

293650220

$0.85

Pop Rivet 3/16 X ,425

293150293

$0.26

Hex. Flange PT Screw K50 X 20

241152040

$1.74

Torx Screw M6 X 50

250000317

$2.06

Hex. Flange Elastic Nut M6

233261466

$1.66
