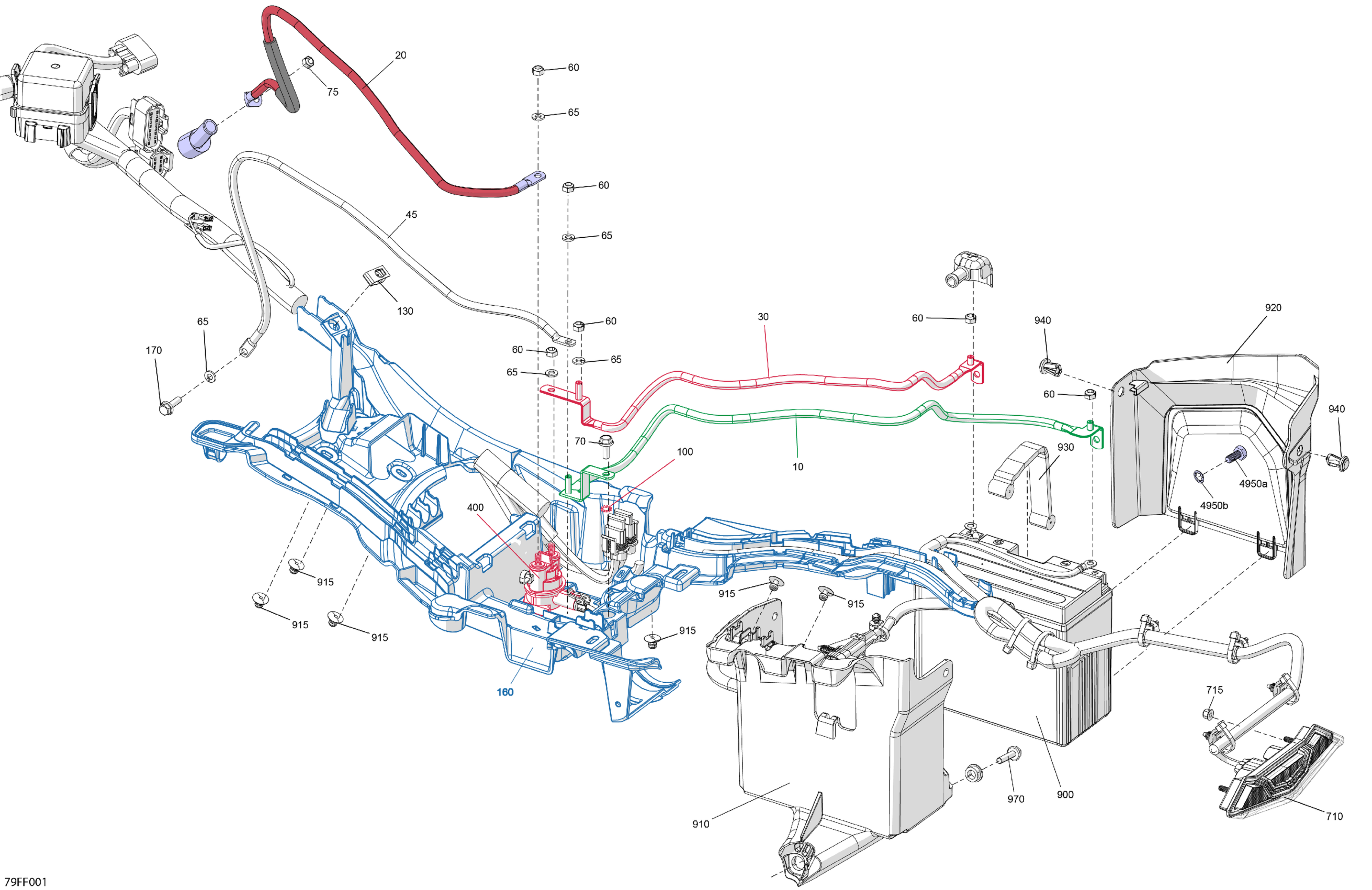

Can-Am CE - OUTL-PRO - 4X4 - STD - HD5 - 1HTD - Northern Lichen - 2026 Electric - Rear Section Diagram

Description

Price

Negative Cable

710009367

$36.89

Positive Cable

710011179

$46.12

Positive Cable

710009368

$46.12

Negative Cable

710007321

$36.89

Elastic Stop Nut M6

232561414

$1.55

Lock Washer Helical M6

234161601

$0.92

Hex. Flange Screw M6 X 16

207661646

$1.00

Elastic Stop Nut M6

232561414

$1.55

100

External Serrated Lock Washer 6 mm

234461608

$0.92

130

Panel Nut M6 X 1.0

250100198

$1.73

160

Starter Relay Support

710009950

$39.97

170

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

400

Starter Relay

278003012

$35.07

710

Tail Light

710006633

$59.97

715

Hex. Flange Elastic Nut M5

233251414

$1.66

900

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$101.37

910

Battery Support

710008195

$46.12

915

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

920

Battery Cover

710011427

Unavailable

930

Fuel Tank Strap

293850087

$17.66

940

Tuflok Plastic Rivet

293150230

$1.21

970

Hex. Flange Screw M6 X 25

207562544

$1.39

4950a

Screw | Not Shown

710009084

$1.52

4950b

Washer | Not Shown

710009082

$1.02
