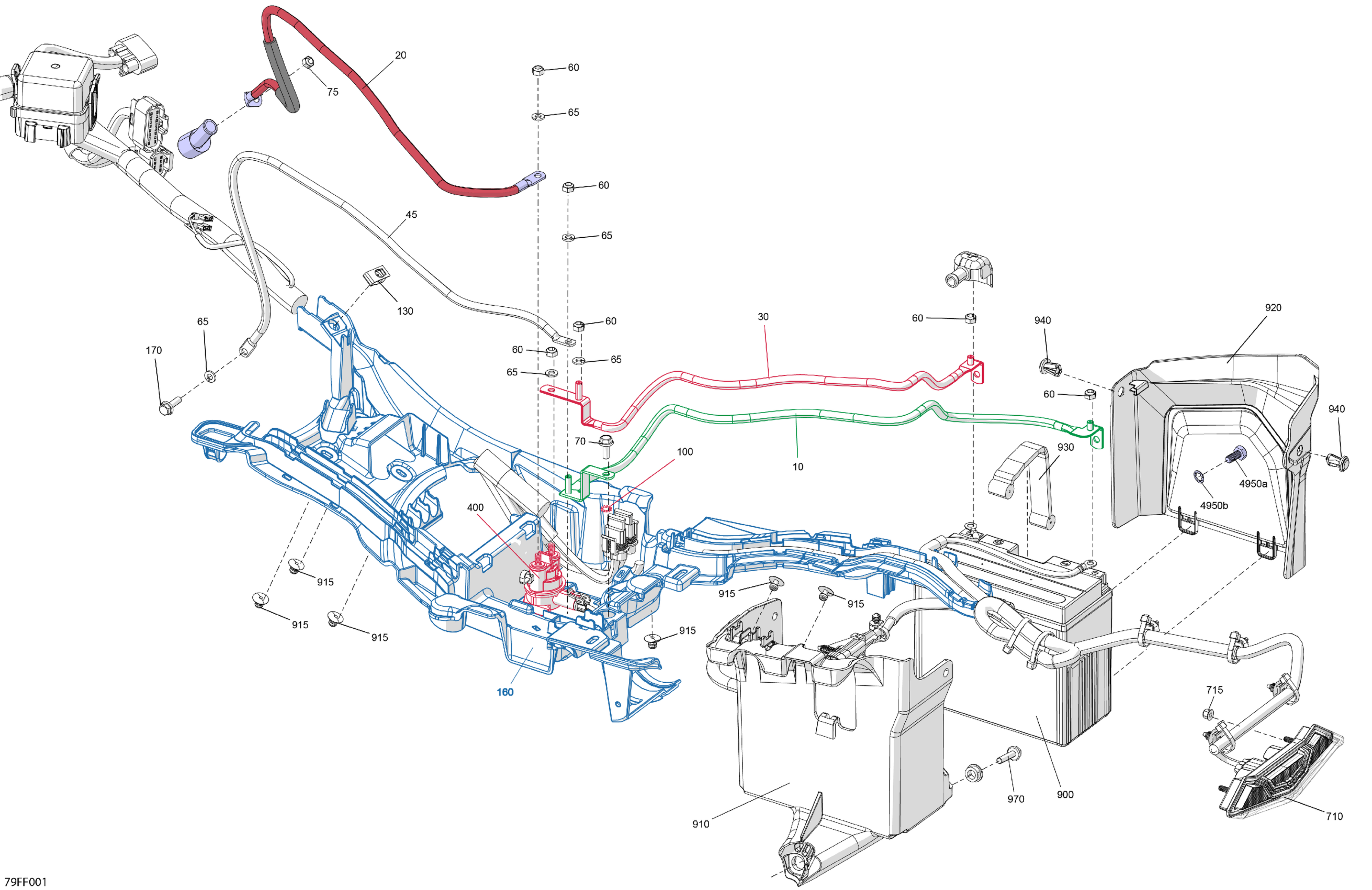

Can-Am Off-Road CE - OUTL-PRO - 4X4 - STD - HD5 - 1HTD - Northern Lichen - 2026 08- Electric - Rear Section Diagram

Description

Price

Negative Cable

710009367

$38.99

Positive Cable

710011179

$48.99

Positive Cable

710009368

$48.99

Negative Cable

710007321

$38.99

Elastic Stop Nut M6

232561414

$0.55

Lock Washer Helical M6

234161601

$1.15

Hex. Flange Screw M6 X 16

207661646

$1.36

Elastic Stop Nut M6

232561414

$0.55

100

External Serrated Lock Washer 6 mm

234461608

$1.15

130

Panel Nut M6 X 1.0

250100198

$2.11

160

Starter Relay Support

710009950

$43.99

170

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

400

Starter Relay

278003012

$42.49

710

Tail Light

710006633

$62.49

715

Hex. Flange Elastic Nut M5

233251414

$1.04

900

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$146.94

910

Battery Support

710008195

$50.99

915

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

920

Battery Cover

710011427

$16.99

930

Fuel Tank Strap

293850087

$19.99

940

Tuflok Plastic Rivet

293150230

$1.47

970

Hex. Flange Screw M6 X 25

207562544

$1.69

4950a

Screw | Not Shown

710009084

$1.59

4950b

Washer | Not Shown

710009082

$1.29
