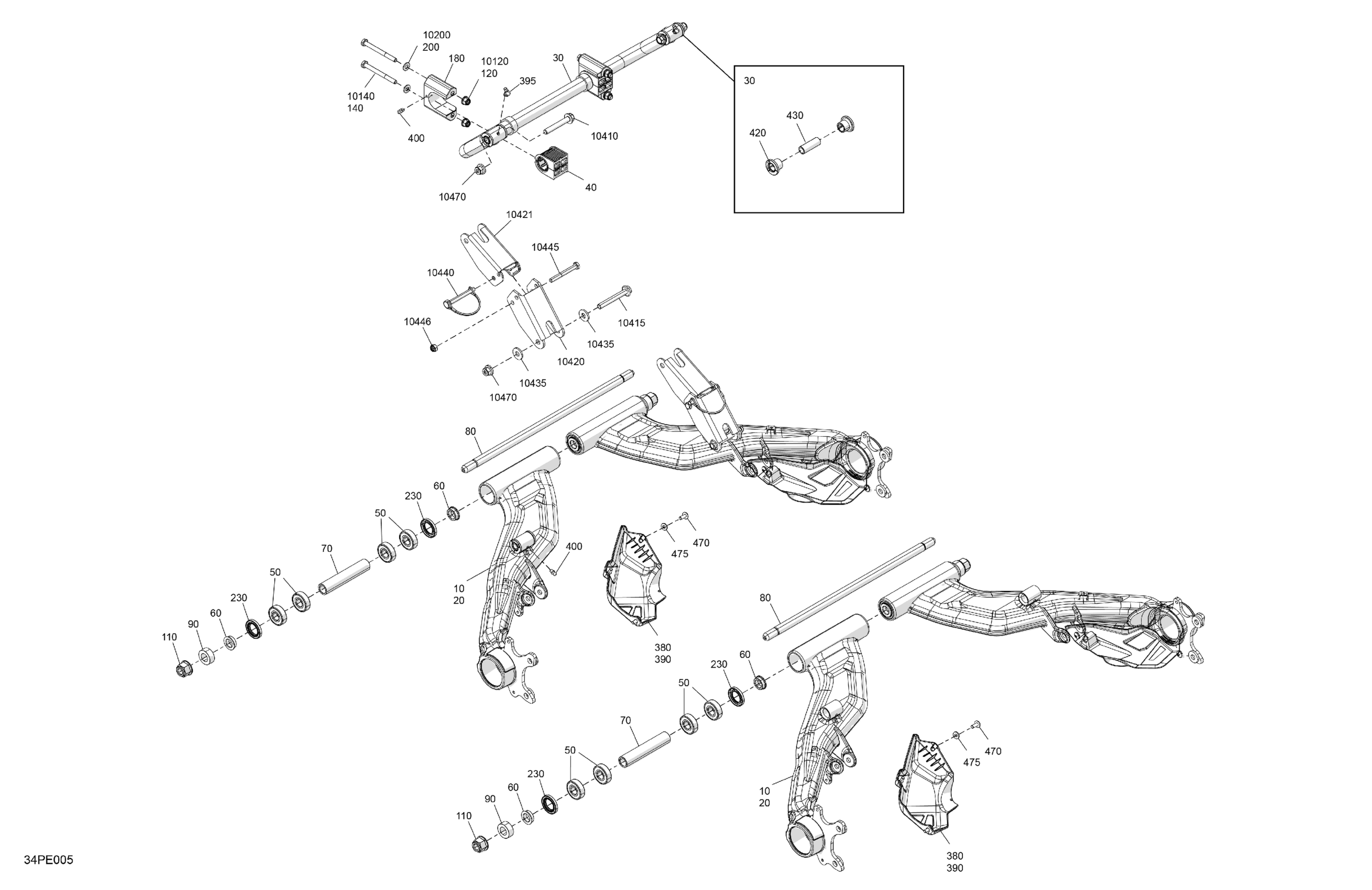

Can-Am CE - OUT-MAX - 6X6 - XU+ - 650 EFI - 2JSA - Tundra Green - 2025 Suspension - Rear Components Diagram

Description

Price

LH Swing Arm

706003041

$276.09

RH Swing Arm

706003042

$276.09

Sway Bar

706003050

$117.13

Stabilizer Bar Bushing

706004641

$9.04

Ball Bearing

293350145

$12.54

Spacer

706001282

$10.37

Spacer

706002259

$26.09

Axial Pivot M16

706001664

$64.90

Flat Washer M17

250200112

$6.34

110

Hex. Flange Elastic Nut M16

233211466

$1.53

120

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Hex. Screw M8 X 85

250001035

$1.46

180

Bushing Holder

706001099

$29.82

200

Flat Washer 8 mm

234081410

$0.69

230

Seal

293200144

$4.52

380

LH Protector | All Except Packages XXC & Hunting Edition

706003052

$14.90

390

RH Protector | All Except Packages XXC & Hunting Edition

706003053

$14.90

395

Grease Elbow Fitting

293550085

$1.04

400

Grease Fitting

250000315

$4.82

420

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

430

Spacer

706204623

Unavailable

470

Tork Screw M6 X 16

250000534

$1.74

475

Flat Washer

250200039

$0.70

10120

Hex. Flange Elastic Nut M8

233281434

$1.74

10140

Hex. Screw M8 X 85

250001035

$1.46

10200

Flat Washer M8

234081430

$1.74

10410

Hex. Flange Screw M10 X 65

207606536

$3.61

10415

Hex. Flange Screw M10 X 75

250001038

$5.54

10420

Linkage Outer Part

706003535

Unavailable

10421

Linkage Inner Part

706003536

Unavailable

10435

Washer

505073634

$2.24

10440

Pin Onto The Shaft

706001602

$13.60

10445

Hex. Screw M8 X 70

207087044

$1.73

10446

Hex. Elastic Stop Nut M8

232581414

$0.47

10470

Hex. Flange Elastic Nut M10

233201436

$1.74
