04- Drive - Middle Drive Unit

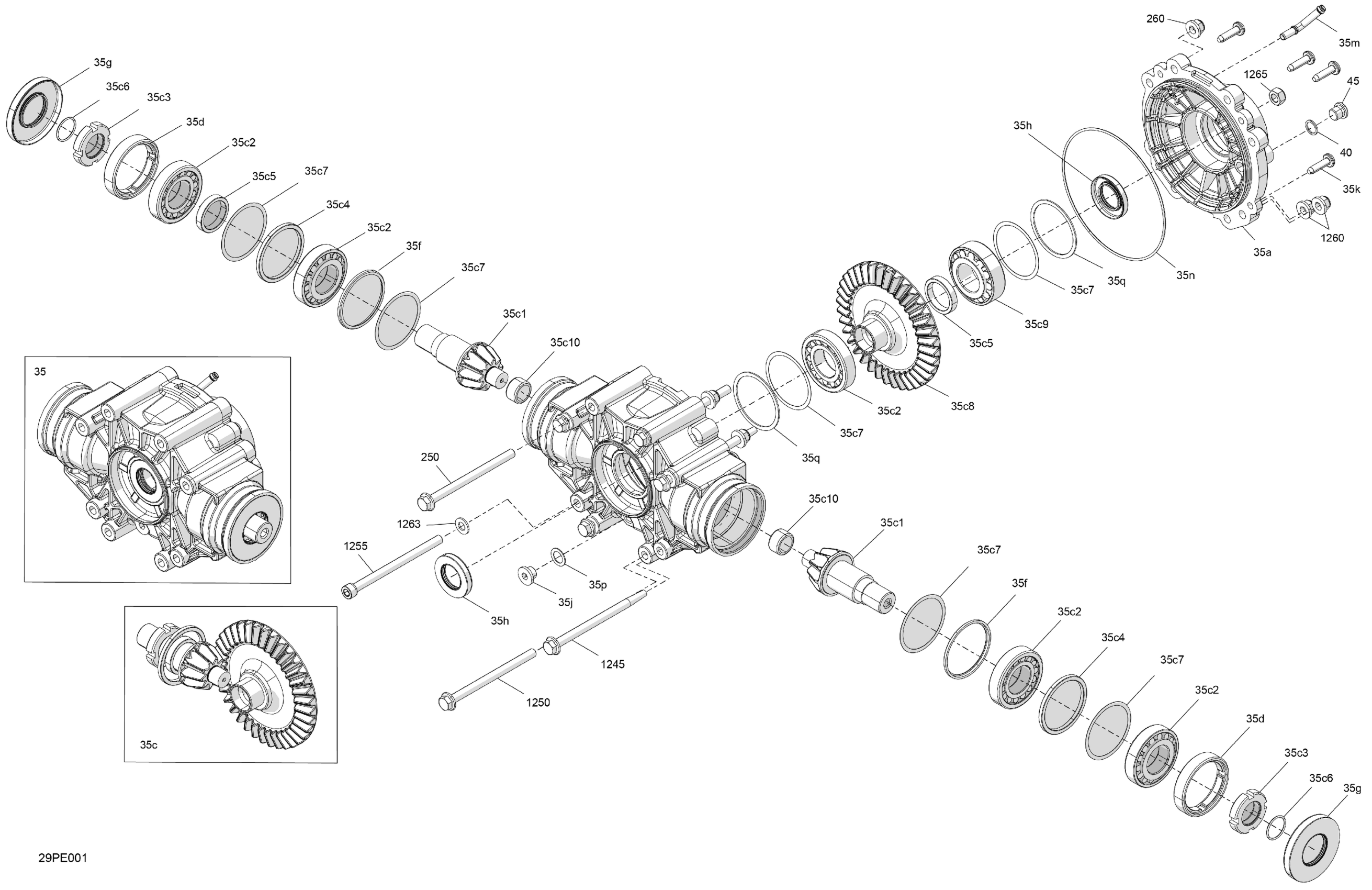

Can-Am CE - OUT-MAX - 6X6 - XU+ - 650 EFI - 2JSA - Tundra Green - 2025 04- Drive - Middle Drive Unit Diagram
#
35
Middle Drive Unit Ass'y | Includes 35 to 35r
705503692
Unavailable
35a
Case Cover | Built Feb 2019 and Up
705503089
Unavailable
35c
Gear Kit - 10/36 teeth | Built Feb 2019 and Up
703501031
Unavailable
35c1
Geart 10 Teeth
705502809
Unavailable
35c2
Roller Bearing
705502174
Unavailable
35c3
Nut
705501550
Unavailable
35c4
Differential Shim
705501552
Unavailable
35c5
Differential Shim
705501553
Unavailable
35c6
O-Ring
705501554
Unavailable
35c7
Differential Shim
705501725
Unavailable
35c8
Gear 36 Tooth
705502810
Unavailable
35c9
Roller Bearing
705502173
Unavailable
35c10
Needle Bearing
705501760
Unavailable
35d
Nut
705501549
Unavailable
35f
Differential Shim
705501586
Unavailable
35g
Oil Seal
705501557
Unavailable
35h
Oil Seal
705501556
Unavailable
35j
Fill Level Plug | 4X4
705500504
Unavailable
35k
Screw
705502063
Unavailable
35m
Breather Tube
705501584
Unavailable
35n
O-Ring
705501711
Unavailable
35p
Copper Washer | 4X4
705500506
Unavailable
35q
Differential Shim
705501555
Unavailable
40
Fill Level Plug | 4X4
705500504
Unavailable
45
Copper Washer | 4X4
705500506
Unavailable
250
Hex. Flange Screw M10 X 135
250001041
Unavailable
260
Hex. Flange Elastic Nut M10
233201436
Unavailable
1245
Hex. Flange Screw M10x145
705502741
Unavailable
1250
Hex. Flange Screw M10 X 135
250001041
Unavailable
1255
Screw Socket HD M10 X 140
250001094
Unavailable
1260
Hex. Flange Elastic Nut M10
233201436
Unavailable
1263
WASHER M10 - Call your local BRP dealership
20005
Unavailable
1265
Elastic Stop Nut M10
232500416
Unavailable
