03- Mechanic - Brake System

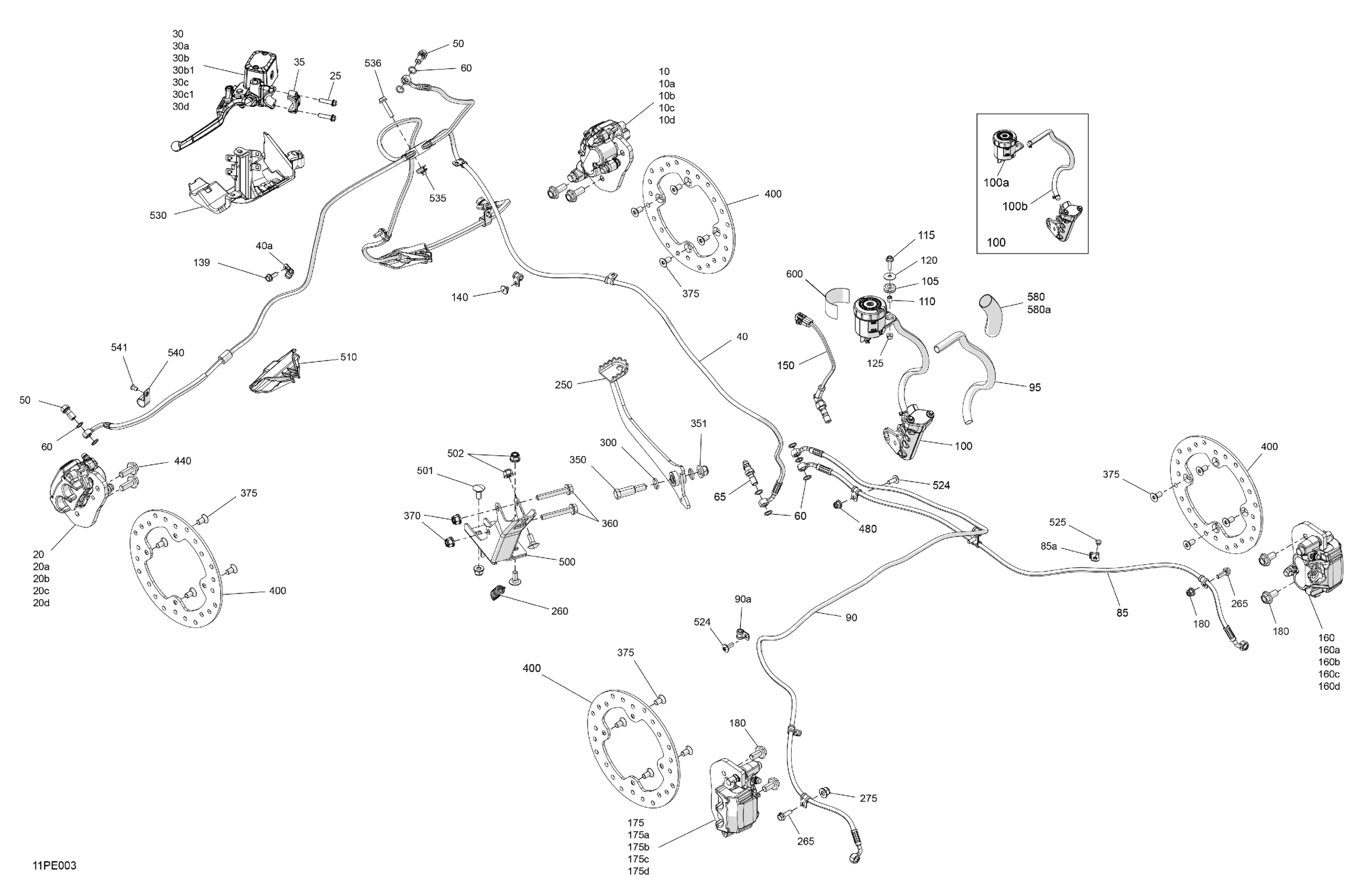

Can-Am CE - OUT-MAX - 6X6 - XU+ - 650 EFI - 2JSA - Tundra Green - 2025 03- Mechanic - Brake System Diagram
#
10
RH Front Brake Caliper | Includes 10 to 10d
705602188
Unavailable
10a
LH Organic Brake Pad Kit
705601015
Unavailable
10b
Pin Set
705601016
Unavailable
10c
Bleeding Screw
705601017
Unavailable
10d
Retaining Spring
705601018
Unavailable
20
LH Front Brake Caliper | Includes 20 to 20d
705602189
Unavailable
20a
RH Organic Brake Pad Kit
705601014
Unavailable
20b
Pin Set
705601016
Unavailable
20c
Bleeding Screw
705601017
Unavailable
20d
Retaining Spring
705601018
Unavailable
25
Hex Flange Screw M6 X 25
229000711
Unavailable
30
Master Cylinder | Includes 30 to 30d
705602314
Unavailable
30a
Lever Set
705601013
Unavailable
30b
Clamp And Screw Kit
507032477
Unavailable
30b1
Hex. Flange Screw M6 X 25
250000447
Unavailable
30c
Cap Set
219800096
Unavailable
30c1
Screw M4 X 20
415129356
Unavailable
30d
Hex Flange Screw M6 X 25
229000711
Unavailable
35
Clamp And Screw Kit
507032477
Unavailable
40
Brake Line | Includes 40 to 40a
705601686
Unavailable
40a
Clamp
293650256
Unavailable
50
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
60
Washer
414920600
Unavailable
65
Bleeding Screw
705601051
Unavailable
85
RH Rear Hose
705601324
Unavailable
85a
Clamp
293650256
Unavailable
90
LH Rear Brake Line | Includes 90 to 90a
705601556
Unavailable
90a
Clamp
293650256
Unavailable
95
Tubing 10 MM 1000MM Long
219704407
Unavailable
100
Rear Master Cylinder Ass'y | Includes 28 to 30
705601776
Unavailable
100a
Oil Tank
705601020
Unavailable
100b
Oil Housing Hose
705601019
Unavailable
105
Grommet
414036300
Unavailable
110
Bushing
293900112
Unavailable
115
Hex.Flange Screw M5 X 20
207652044
Unavailable
120
Flat Washer
224060201
Unavailable
125
Hex. Flange Elastic Nut M5
233251414
Unavailable
139
Hex. Flange Screw M6 X 16
210261640
Unavailable
140
Pop Rivet 3/16"
390406500
Unavailable
150
Brake Switch
705601251
Unavailable
160
RH Rear Brake Caliper | Includes 41 to 45
705602190
Unavailable
160a
LH Organic Brake Pad Kit
705601015
Unavailable
160b
Pin Set
705601016
Unavailable
160c
Bleeding Screw
705601017
Unavailable
160d
Retaining Spring
705601018
Unavailable
175
LH Rear Brake Caliper | Includes 175 to 175d
705602191
Unavailable
175a
RH Organic Brake Pad Kit
705601014
Unavailable
175b
Pin Set
705601016
Unavailable
175c
Bleeding Screw
705601017
Unavailable
175d
Retaining Spring
705601018
Unavailable
180
Hex. Flange Screw M10 X 20
207502046
Unavailable
250
Deep Black, Brake Pedal
705602163
Unavailable
260
Brake Pedal Spring
705600792
Unavailable
265
Hex. Flange Screw M6 X 20
207662044
Unavailable
275
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
300
O-Ring
293300144
Unavailable
350
Shoulder Screw M10
250000513
Unavailable
351
Hex. Flange Elastic Nut M10
233201436
Unavailable
360
Hex. Flange Screw M8 X 55
207685544
Unavailable
370
Hex. Flange Elastic Nut M8
233281414
Unavailable
375
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
400
Disc Brake
705601997
Unavailable
440
Hex. Flange Screw M10 X 25
207502546
Unavailable
480
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
500
Brake Pedal Bracket
705202000
Unavailable
501
Carriage Bolt, M8 X 20
207782044
Unavailable
502
Hex. Flange Elastic Nut M8
233281414
Unavailable
510
Front Hose Guard
705602016
Unavailable
524
Torx Screw M6 X 16
250000755
Unavailable
525
Pop Rivet 3/16"
390402400
Unavailable
530
Front Hose Bracket
705600983
Unavailable
535
Panel Nut M6 X 1.0
250100198
Unavailable
536
Hex. Flange Screw M6 X 30, Scotch Grip
207563044
Unavailable
540
Open Clamp
518321570
Unavailable
541
Pop Rivet 3/16"
390402300
Unavailable
580
Tubing 25 MM 1000MM Long
219704402
Unavailable
580a
Tubing 25 MM 1000MM Long
219704402
Unavailable
600
Heat Shield
705601311
Unavailable
