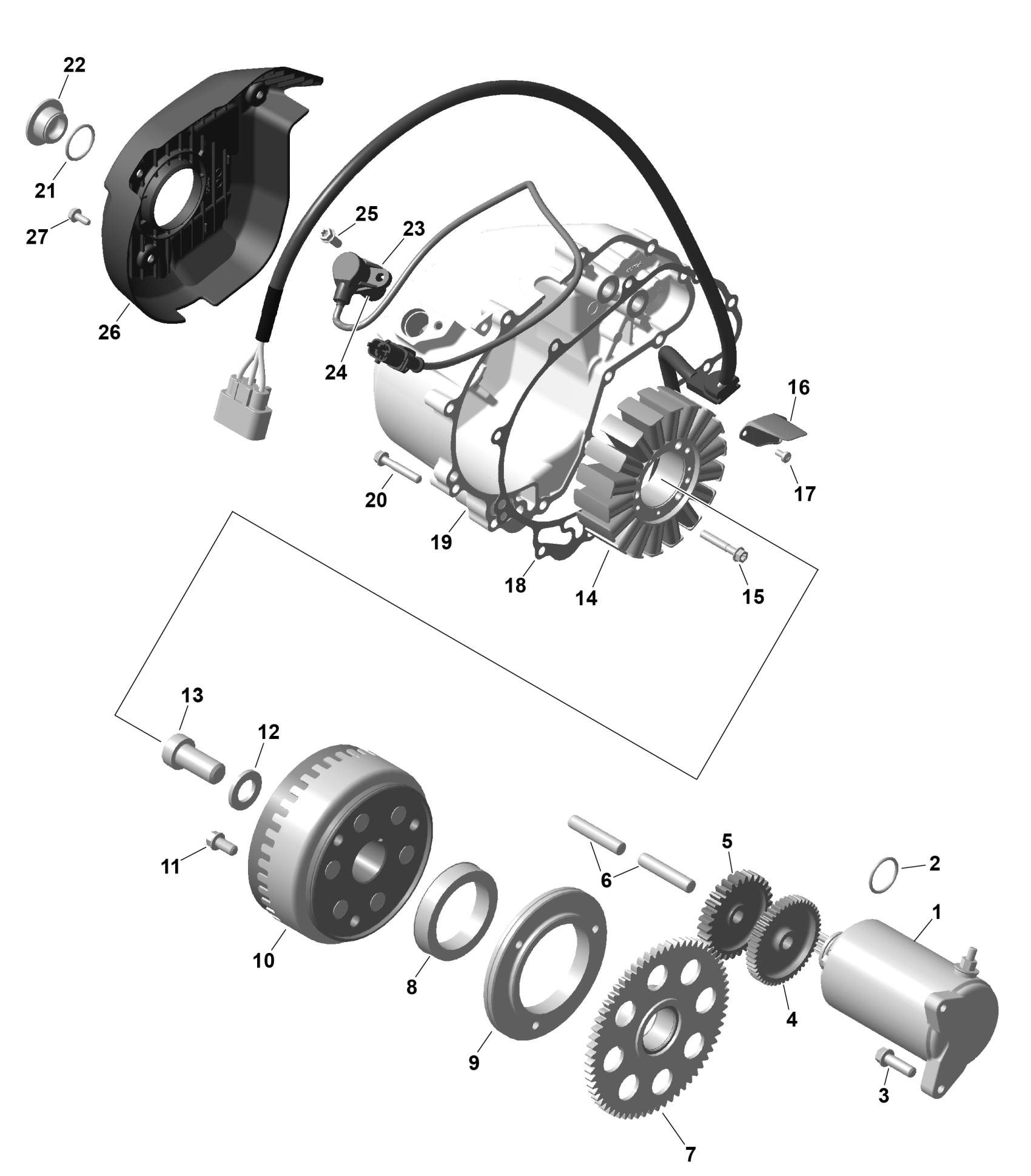

Can-Am CE - OUT-MAX - 6X6 - XU+ - 1000 EFI - 2GSA - Boreal Green - 2025 01- ROTAX - Magneto and Electric Starter Diagram

#

Description

Price

1

Electric starter Ass'y

420684566

Unavailable

2

O-Ring

420250140

Unavailable

3

Torx Flange Screw M8 X 25

420440372

Unavailable

4

Starter Double Gear 11/49 T

420634741

Unavailable

5

Starter Intermediate Gear, 30 Teeth

420634605

Unavailable

6

Location Pin 10 M6x50

420229302

Unavailable

7

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

Unavailable

8

Sprag Clutch

420659111

Unavailable

9

Sparg Clutch Housing

420659263

Unavailable

10

Flywheel With Trigger Wheel 650W | With DPS, European Community, T3

420685704

Unavailable

11

Torx Flange Screw M8 X 16

420440854

Unavailable

12

Shim

420627270

Unavailable

13

Socket Head Screw M16 X 35

420241549

Unavailable

14

Stator Plate | With DPS

420685922

Unavailable

15

Torx Flange Screw M6 X 30

420440647

Unavailable

16

Interior Cable Support Ass'y

420251889

Unavailable

17

Phillips Screw M4 X 8

420240196

Unavailable

18

Gasket

420651203

Unavailable

19

Ignition Cover

420212227

Unavailable

20

Torx Flange Screw M6 X 35

420440274

Unavailable

21

O-Ring

420430782

Unavailable

22

Plug Screw M24X 1.5

420241633

Unavailable

23

Camshft Position Sensor Ass'y

420265727

Unavailable

24

O-Ring

420431580

Unavailable

25

Torx Flange Screw M6 X 16

420440162

Unavailable

26

Cover

420201390

Unavailable

27

TAPTITE SCREW M5 X 12

420941937

Unavailable
