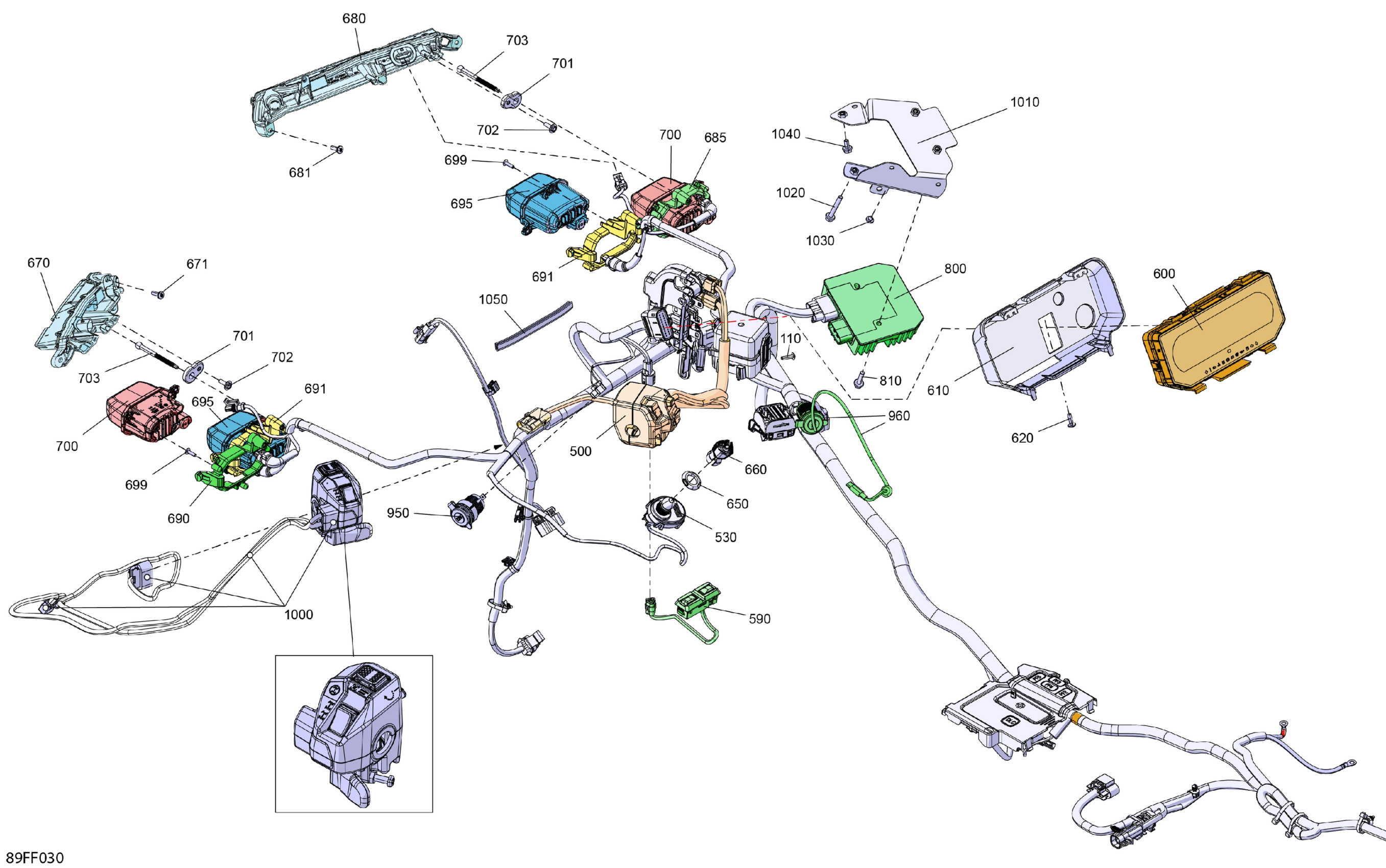

Can-Am CE - OUT-MAX - 4X4 - XTP - 1000R - 4VTC - Mineral Gray Satin - 2026 Electric - Front Section Diagram

Description

Price

110

Torx-Truss Pt K40 X 16

250000759

$1.74

500

LH Front Switch Housing | CARB Vehicle

710007301

$272.28

530

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

590

Multifunction Switch

710009867

$64.58

600

Multifunction Gauge Mid

710008297

$355.35

610

Int Gauge Support

710009602

$6.45

620

Torx Screw K50 X 16

250000720

$1.39

650

Specialized Nut

278004274

$2.72

660

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

670

LH Front Light Marker

710009355

$81.69

671

Torx Screw K50 X 16

250000720

$1.39

680

RH Front Light Marker

710009356

$81.69

681

Torx Screw K50 X 16

250000720

$1.39

685

RH Front Low Beam Headlight Support

710011657

Unavailable

690

LH Front Low Beam Headlight Support

710011656

$27.66

691

LH/RH Front High Beam Headlight Support

710011658

$42.28

695

HIgh Beam Light

710006910

$156.89

699

Torx-Truss Pt K40 X 16

250000759

$1.74

700

Low Beam Light

710008088

$156.89

701

Ball Socket

293900157

$8.45

702

Screw PT Type K-50 X 16

250000959

$1.74

703

Ajustment Screw

710005837

$6.45

800

Voltage Regulator

710010540

$159.87

810

Hex. Flange Screw M6 X 25

207562544

$1.39

950

DC Outlet

710001248

$31.17

960

USB Wiring Harness

710009937

$44.99

1000

Accelerator Hand Lever

710010573

$290.74

1010

Voltage Regulator Support

710009942

$16.12

1020

Hex. Flange Screw M6 X 40

207664044

$2.18

1030

Rubber Stopper

293830229

$6.92

1040

Hex. Flange Screw M6 X 12

207661244

$1.70

1050

Trim 1000Mm Long

219704354

$14.74
