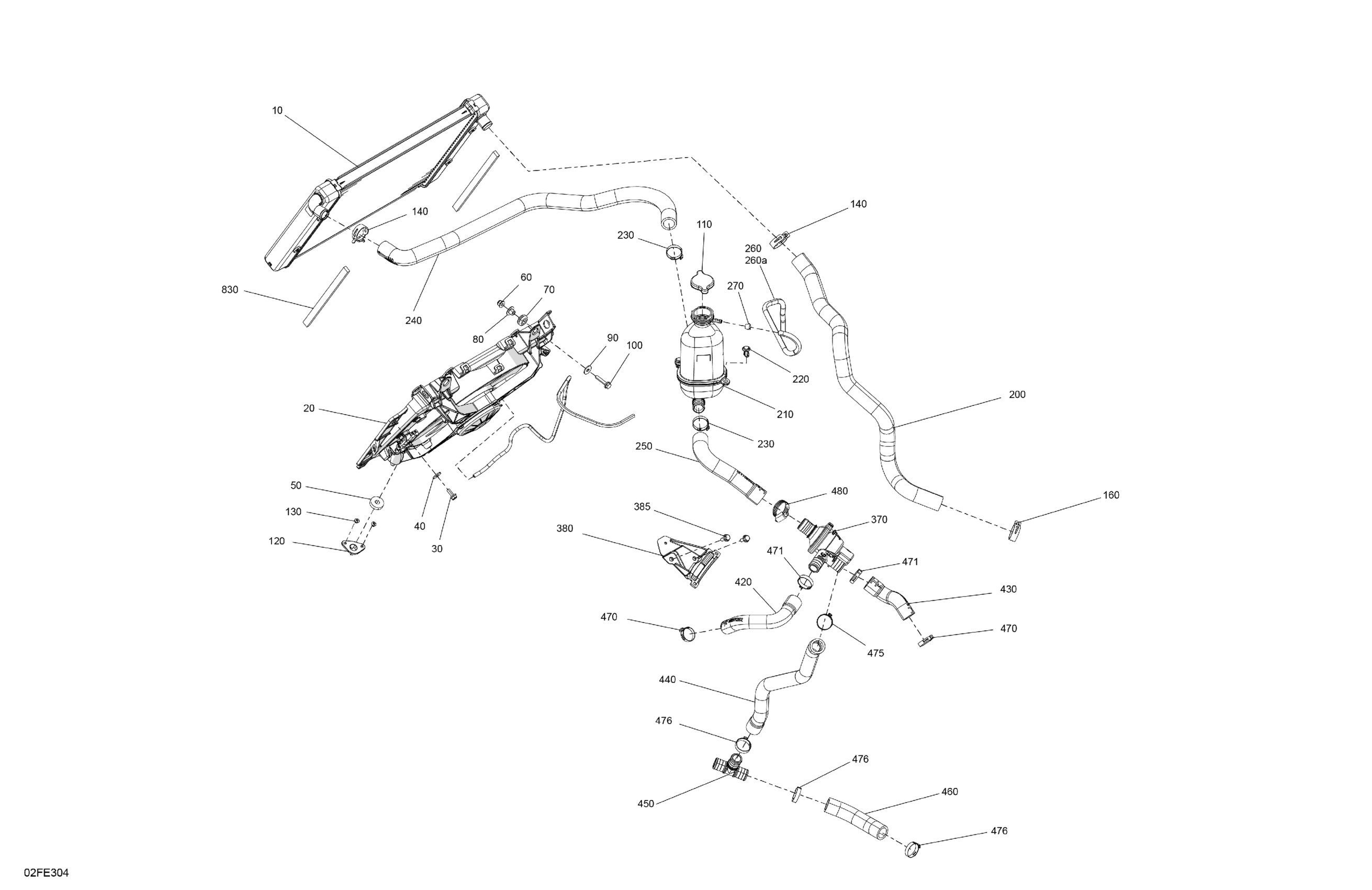

Can-Am CE - OUT-MAX - 4X4 - XTP - 1000R - 4VSD - Mineral Gray Satin - 2025 Engine - Cooling Diagram

Description

Price

Radiator

709201126

$396.99

Cooling Fan

709201622

$231.31

Hex Flange Screw M6 X 16

250000906

$4.39

Flat Washer 6 mm

234062410

$0.64

Grommet

709200948

$7.09

Hex. Flange Elastic Nut M6

233261466

$1.66

Overmolded Grommet

293720130

$4.25

Bushing

709001288

$7.48

Flat Washer

250200082

$0.35

100

Hex. Flange Screw M6 X 30

207663046

$1.42

110

Radiator Pressure Cap

709200207

$18.82

120

Radiator Support

709201149

$6.63

130

Pop Rivet 3/16 X ,425

293150293

$0.26

140

Norma Spring Clamp

293650108

$3.88

160

Norma Spring Clamp

293650108

$3.88

200

Radiator Hose

709201120

$22.36

210

Coolant Tank

715009560

$89.52

220

Tuflok Plastic Rivet

293150230

$1.21

230

Crimp Clamp

293650331

$4.15

240

Radiator Hose

709201119

$22.36

250

Hose

709201121

$22.36

260

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

260a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

270

Spring Clamp

414554800

$0.81

370

Housing

709201279

$88.78

380

Thermostat Support

709201282

$4.09

385

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

420

Thermostat Hose

709201262

$8.60

430

Thermostat Hose

709201263

$8.60

440

Thermostat Hose

709201264

$15.64

450

T-Fitting

709201420

$14.88

460

Water Pump Hose

709201265

$15.64

470

Crimp Clamp

293650099

$3.55

471

Crimp Clamp

293650331

$4.15

475

Crimp Clamp

293650331

$4.15

476

Crimp Clamp

293650331

$4.15

480

Norma Gear Clamp

293650098

$4.15

830

Seal 3000MM Long

219704386

$26.09
