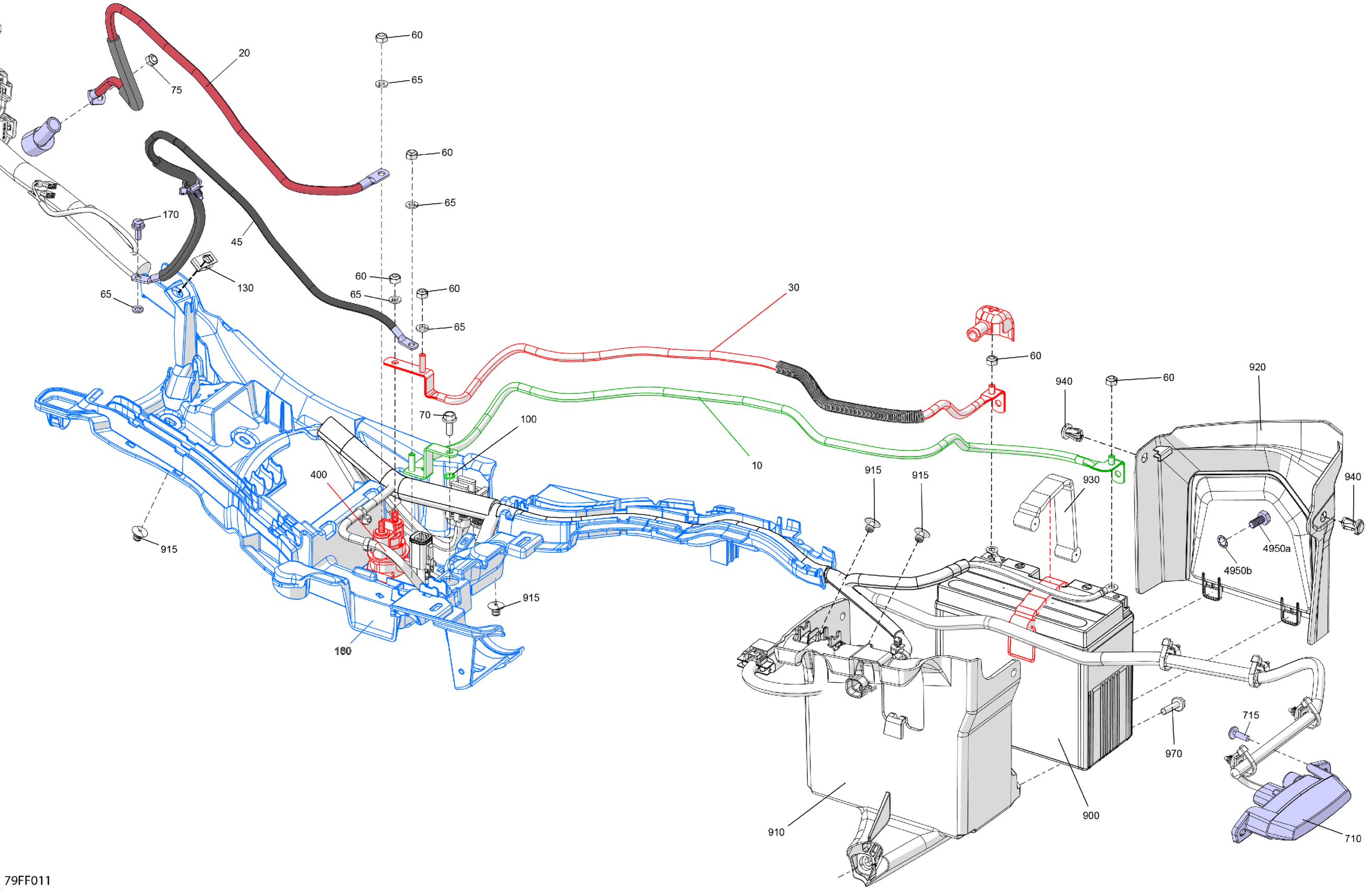

Can-Am CE - OUT-MAX - 4X4 - XT - 850 - 4STF - Fiery Red Metallic - 2026 Electric - Rear Section Diagram

Description

Price

Negative Cable

710009369

$35.04

Positive Cable

710011179

$43.25

Positive Cable

710009370

$43.25

Negative Cable

710009388

$35.04

Elastic Stop Nut M6

232561414

$1.78

Lock Washer Helical M6

234161601

$1.06

Hex. Flange Screw M6 X 16

207661646

$1.15

Elastic Stop Nut M6

232561414

$1.78

100

External Serrated Lock Washer 6 mm

234461608

$1.06

130

Panel Nut M6 X 1.0

250100198

$1.99

160

Starter Relay Support

710009950

$38.78

170

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

400

Starter Relay

278003012

$40.27

710

Tail Light

710010031

$58.18

715

Torx Screw K50 X 16

250000720

$1.60

900

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$115.03

910

Battery Support

710008195

$41.76

915

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

920

Battery Cover

710011427

$14.91

930

Fuel Tank Strap

293850087

$16.39

940

Tuflok Plastic Rivet

293150230

$1.39

970

Hex. Flange Screw M6 X 25

207562544

$1.60

4950a

Screw | Not Shown

710009084

$1.48

4950b

Washer | Not Shown

710009082

$0.99

4950c

Elastic Stop Nut M6, Brass

232561200

$4.03
