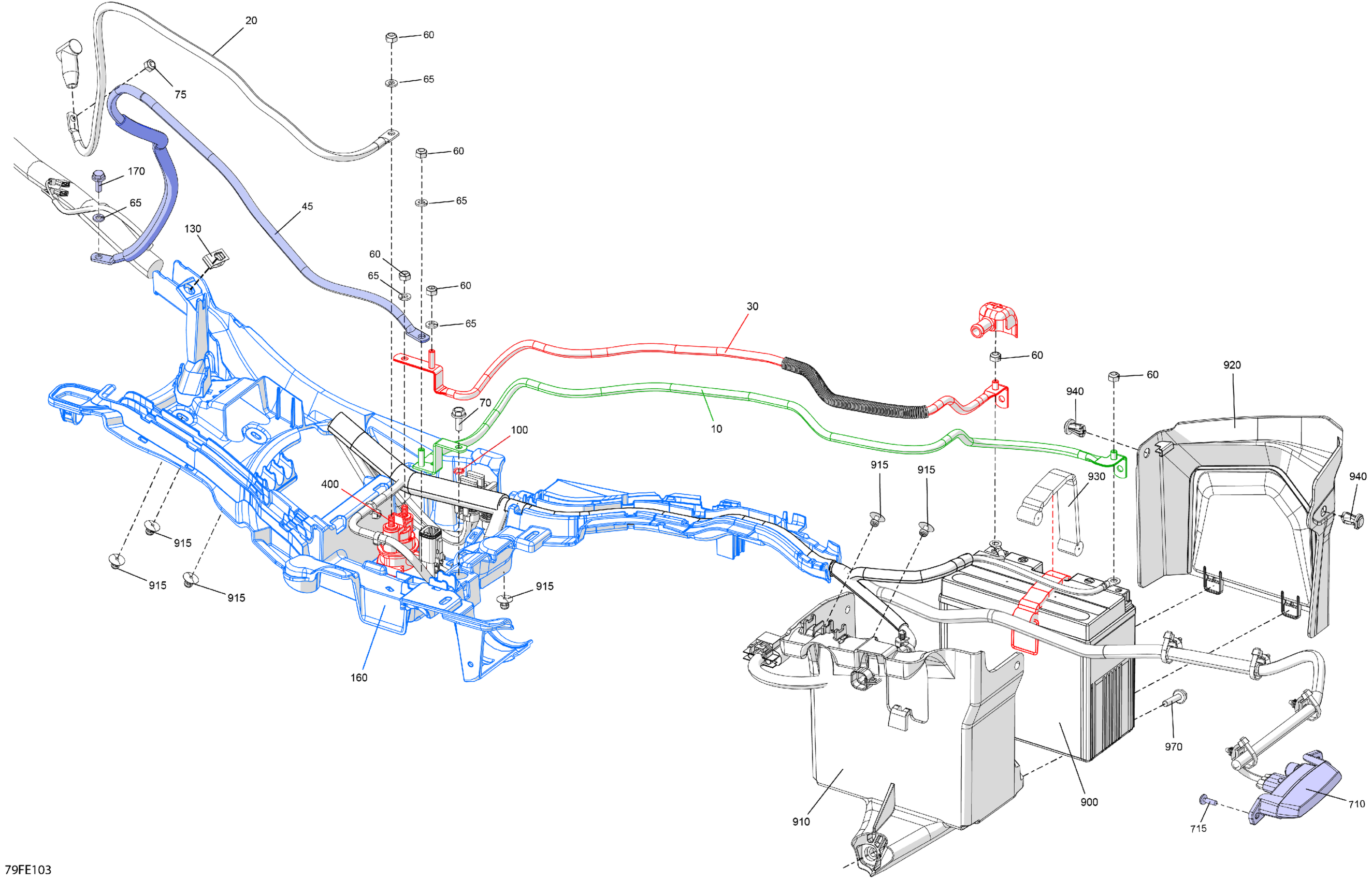

Can-Am CE - OUT-MAX - 4X4 - XT - 850 - 4SSC - Fiery Red Metallic - 2025 Electric - Rear Section Diagram

Description

Price

Screw | Not Shown

710009084

$1.48

Washer | Not Shown

710009082

$0.99

Negative Cable

710009369

$35.04

Positive Cable

710010016

$43.25

Positive Cable

710009370

$43.25

Negative Cable

710009388

$35.04

Elastic Stop Nut M6

232561434

$1.55

Lock Washer Helical M6

234161601

$0.92

Hex. Flange Screw M6 X 16

207661646

$1.00

Elastic Stop Nut M6

232561434

$1.55

100

External Serrated Lock Washer 6 mm

234461608

$0.92

130

Panel Nut M6 X 1.0

250100198

$1.73

160

Starter Relay Support

710009950

$38.78

170

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

400

Starter Relay

278003012

$35.07

710

Tail Light

710010031

$58.18

715

Torx Screw K50 X 16

250000720

$1.39

900

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$101.37

900a

Battery Bolt Kit

715500541

$3.39

910

Battery Support

710008195

$41.76

915

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

920

Battery Cover

710008267

$14.91

930

Holding Strap

293850112

$14.27

940

Tuflok Plastic Rivet

293150230

$1.21

970

Hex. Flange Screw M6 X 25

207562544

$1.39
