Description

Price

200

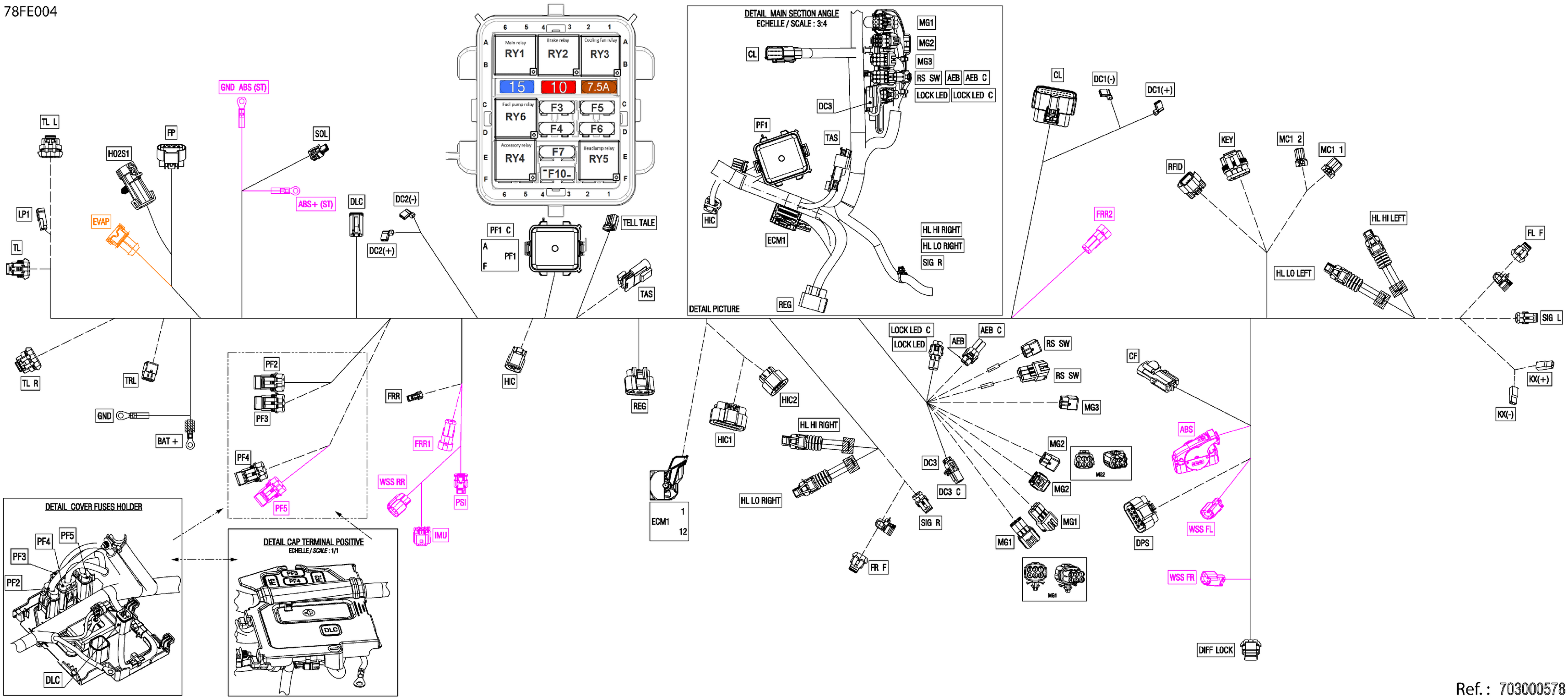

Main Wiring Harness

710010289

$870.12

ABS

Cover With CPA

710008720

$18.63

ABS

Connector Bosch Female 46 Cavities

710008719

$42.51

ABS

Housing Fill Plug 2.8

710008725

$23.85

ABS

Plug 1.2

710008730

$7.63

ABS

Connector Seal Bosch1.2

710008729

$42.51

ABS

Connector Seal Bosch 4.8

710008722

$42.51

ABS

Bosch Female Terminal 1.2

710008726

$7.04

ABS

Bosch Female Terminal 4.8

710008721

$7.04

ABS+ (ST)

Terminal

710000913

$5.30

AEB

Sumitomo Female Connector 2 Cavities

710008152

$8.87

AEB

Wire Seal

710000402

$4.28

AEB

Female Terminal

409012100

$4.28

AEB C

Connector Sumitomo Male 2 Cavities

710008151

$7.33

AEB C

Cap

710000080

$6.28

BAT (+)

Open Barrel Terminal

278001392

$4.00

CF

Clip

710001038

$4.96

CF

Female Housing, 2 Circuits

278000217

$8.72

CF

Wire Seal

278000218

$4.00

CF

Male Terminal

409004300

$5.30

CL

Female Housing 20 Circuits

278002858

$22.98

CL

Sealing Cap

278002860

$1.63

CL

Female Terminal

515178018

$0.90

D2

Diode

409012700

$10.51

DC1

Female Terminal

409010300

$4.00

DC2

Female Terminal

409010300

$4.00

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Female Terminal

515175231

$4.00

DC3 C

Male Housing, 2 Circuits

710000667

$7.25

DIFF LOCK

Connector Delphi Female 6 Cavities

710006038

$74.60

DIFF LOCK

Lock Connector

710006039

$3.43

DIFF LOCK

Seal

278001482

$2.93

DIFF LOCK

Female Terminal

278001481

$2.93

DLC

Female Housing 6 Circuits

710002706

$18.63

DLC

Lock

710002705

$4.15

DLC

Female Terminal

710005438

$3.88

DLC

Female Terminal

710005439

$4.15

DPS

Female Housing

710004989

$7.00

DPS

Lock

710001222

$1.93

DPS

Lock | PACKARD 15430900

710005098

$1.57

DPS

Plug

710002075

$2.84

DPS

Wire Seal

278002186

$5.18

DPS

Seal

710003153

$0.91

DPS

Female Terminal

278002187

$5.79

DPS

Terminal

710001873

$2.19

ECM1

Cover

515178601

$16.39

ECM1

Housing 56 Circuits

515178595

$27.58

ECM1

Plate

515178604

$4.16

ECM1

Plug

515178599

$2.99

ECM1

Plug

515178600

$2.99

ECM1

Plate

515178603

$4.16

ECM1

Terminal

515178596

$3.79

ECM1

Terminal

515178598

$3.69

ECM1

Terminal

515178597

$14.52

FL F

Housing

710002177

$3.12

FL F

Lock

710002043

$0.81

FL F

Seal

278001482

$2.93

FL F

Female Terminal

710001134

$5.85

FP

Male Housing, 4 Circuits

278002185

$6.73

FP

Lock

710001222

$1.93

FP

Wire Seal

278002186

$5.18

FP

Seal

710003153

$0.91

FP

Female Terminal

278002187

$5.79

FP

Terminal

710001873

$2.19

FR F

Housing

710002177

$3.12

FR F

Lock

710002043

$0.81

FR F

Seal

278001482

$2.93

FR F

Female Terminal

710001134

$5.85

FRR1

Male Terminal Housing, 2 Circuits

409209400

$14.52

FRR1

Wire Seal

515176621

$6.79

FRR1

Male Terminal

515176164

$6.24

FRR2

Male Terminal Housing, 2 Circuits

409209400

$14.52

FRR2

Wire Seal

515176621

$6.79

FRR2

Male Terminal

515176164

$6.24

GND

Open Barrel Terminal

278001392

$4.00

GND ABS (ST)

Terminal

710000913

$5.30

HIC

Housing

515177205

$18.63

HIC

Seal Wire

710001332

$3.12

HIC

Terminal

710001228

$3.12

HL HI LEFT

Housing

710007660

$7.51

HL HI LEFT

Lock

710001152

$4.00

HL HI LEFT

Wire Seal

710001163

$5.85

HL HI LEFT

Female Terminal

710001164

$6.79

HL HI RIGHT

Housing

710007660

$7.51

HL HI RIGHT

Lock

710001152

$4.00

HL HI RIGHT

Wire Seal

710001163

$5.85

HL HI RIGHT

Female Terminal

710001164

$6.79

HL LO LEFT

Female Housing, 2 Circuits

515177192

$7.25

HL LO LEFT

Lock

710001152

$4.00

HL LO LEFT

Wire Seal

710001163

$5.85

HL LO LEFT

Female Terminal

710001164

$6.79

HL LO RIGHT

Female Housing, 2 Circuits

515177192

$7.25

HL LO RIGHT

Lock

710001152

$4.00

HL LO RIGHT

Wire Seal

710001163

$5.85

HL LO RIGHT

Female Terminal

710001164

$6.79

HO2S1

Housing

710002466

$2.90

HO2S1

Lock

515178661

$4.15

HO2S1

Seal

278001482

$2.93

HO2S1

Gold Terminal

710002597

$2.90

HO2S1

Terminal

710000736

$5.19

IMU

Housing

710003730

$13.75

IMU

Wire Seal

710001118

$1.19

IMU

Female Terminal

710010230

$8.10

KX

Female Terminal Housing, 1 Circuit

409010400

$7.25

KX

Female Terminal

409010100

$5.30

LOCK LED

Wire Seal

710000402

$4.28

LOCK LED

Male Terminal

409011300

$5.61

LOCK LED

Male Terminal

409011300

$5.61

LOCK LED C

Cap

710000080

$6.28

LP1

Male Terminal Housing, 2 Circuits

515175654

$7.25

LP1

Male Terminal

515175232

$1.45

MC1 1

Female Housing

710004047

$13.12

MC1 1

Terminal

710002315

$4.19

MC1 2

Female Housing

710004048

$13.75

MC1 2

Terminal

710002315

$4.19

MG1

Connector

710007097

$19.37

MG1

Wire Seal

710000402

$4.28

MG1

Male Terminal

409011300

$5.61

MG2

Connector

710007098

$10.10

MG2

Cap

710000080

$6.28

MG2

Seal

409012300

$4.25

MG2

Wire Seal

710000402

$4.28

MG2

Female Terminal

409012100

$4.28

MG3

Female Housing 6 Circuits

710001445

$7.33

MG3

Wire Seal

710000402

$4.28

MG3

Female Terminal

409012100

$4.28

PF1

Fuse Base Ass'y

278003448

$30.57

PF1

Wire Seal

278001065

$5.85

PF1

Wire Seal

278000218

$4.00

PF1

Female Terminal

710000918

$5.85

PF1

Female Terminal

278002578

$0.99

PF1 C

Fuse Cover

278003553

$3.79

PF1 C

Fuses Decal

710006782

Unavailable

PF1 C SP1

Little Fuse, 7.5 Amperes

710000743

$7.78

PF1 C SP2

Little Fuse, 10 Amperes

710000744

$8.31

PF1 C SP3

Little Fuse, 15 Ampere

710000745

$7.78

PF1 F1

Little Fuse, 15 Ampere

710000745

$7.78

PF1 F10

Fuse 15 AMPS

710008009

$17.88

PF1 F2

Little Fuse, 15 Ampere

710000745

$7.78

PF1 F3

Little Fuse, 7.5 Amperes

710000743

$7.78

PF1 F4

Little Fuse, 10 Amperes

710000744

$8.31

PF1 F5

Little Fuse, 10 Amperes

710000744

$8.31

PF1 F6

Little Fuse, 10 Amperes

710000744

$8.31

PF1 F7

Little Fuse, 15 Ampere

710000745

$7.78

PF1 RY1

Relay

715900824

$18.63

PF1 RY2

Relay

715900824

$18.63

PF1 RY3

Relay

715900824

$18.63

PF1 RY4

Relay

715900824

$18.63

PF1 RY5

Relay

715900824

$18.63

PF2

Fuse

710001613

$8.31

PF2

Fuse Holder

278001325

$8.31

PF2

Female Terminal

710000357

$5.85

PF3

Fuse

710001613

$8.31

PF3

Fuse Holder

278001325

$8.31

PF3

Female Terminal

710000357

$5.85

PF3

Female Terminal

710000113

$5.85

PF4

Fuse

710001613

$8.31

PF4

Fuse Holder

278001325

$8.31

PF4

Female Terminal

710000357

$5.85

PF5

25 Amp Fuse

278003867

$3.16

PF5

Fuse Holder

278001325

$8.31

PF5

Female Terminal

710000357

$5.85

PSI

Connector Tyco Female 3 Cavities

710008885

$16.39

PSI

Wire Seal

710001118

$1.19

PSI

Tyco Terminal Female

710008886

$4.19

R1

Resistor

710005179

$2.24

R2

Resistor

710006155

$2.24

R3

Resistor

710007300

$2.24

REG

Female Housing, 3 Circuits

710000879

$24.60

REG

Cap

710000882

$10.55

REG

Seal

710001932

$3.06

REG

Terminal

710001934

$5.18

RFID

Female Delphi Connector 5 Cavities

710007151

$15.64

RFID

Lock

710007243

$3.93

RFID

Wire Seal

710001163

$5.85

RFID

Female Terminal

710001164

$6.79

RS SW

Male Terminal Housing, 6 Circuits

710000835

$15.64

RS SW

Wire Seal

710000402

$4.28

RS SW

Male Terminal

409011300

$5.61

SIG L

Female Housing, 2 Circuits

409209500

$13.07

SIG L

Wire Seal

515176621

$6.79

SIG L

Female Terminal

710001340

$4.96

SIG R

Female Housing, 2 Circuits

409209500

$13.07

SIG R

Wire Seal

515176621

$6.79

SIG R

Female Terminal

710001340

$4.96

SOL

Female Housing, 2 Circuits

515177192

$7.25

SOL

Lock

710001152

$4.00

SOL

Seal Wire

710001153

$2.06

SOL

Terminal

710000925

$2.93

TAS

Clip Bracket Connector (edge)

409210100

$1.94

TAS

Housing

710001231

$11.69

TAS

Lock 6 Positions

710005296

$0.79

TAS

Seal

710001233

$2.93

TAS

Terminal

710001224

$2.93

TELL TALE

Female Terminal Housing, 4 Circuits

515175845

$7.78

TELL TALE

Female Terminal

515175231

$4.00

TL L

Housing-Female

710005392

$4.19

TL L

Lock

710005394

$3.12

TL L

Seal

278001482

$2.93

TL L

Female Terminal

710001134

$5.85

TL R

Housing-Female

710005392

$4.19

TL R

Lock

710005394

$3.12

TL R

Seal

278001482

$2.93

TL R

Female Terminal

710001134

$5.85

TRL

Female Housing, 6 Circuits

710000081

$7.88

TRL

Wire Seal

710000402

$4.28

TRL

Female Terminal

409012100

$4.28

WSS FL

Connector 2 Pins

710005669

$2.24

WSS FL

Seal

710005689

$2.09

WSS FL

Female Terminal 18-20 AWG

515178348

$1.57

WSS FR

Connector 2 Pins

710005669

$2.24

WSS FR

Seal

710005689

$2.09

WSS FR

Female Terminal 18-20 AWG

515178348

$1.57

WSS RR

Connector 2 Pins

710005669

$2.24

WSS RR

Seal

710005689

$2.09

WSS RR

Female Terminal 18-20 AWG

515178348

$1.57

Can-Am CE - OUT-MAX - 4X4 - XT - 700 - 1YSE - Platinum Silver Satin - 2025 Electric - Main Harness - 710010289 Diagram

Main Wiring Harness

Cover With CPA

Connector Bosch Female 46 Cavities

Housing Fill Plug 2.8

Plug 1.2

Connector Seal Bosch1.2

Connector Seal Bosch 4.8

Bosch Female Terminal 1.2

Bosch Female Terminal 4.8

Terminal

Sumitomo Female Connector 2 Cavities

Wire Seal

Female Terminal

Connector Sumitomo Male 2 Cavities

Cap

Open Barrel Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Male Terminal

Female Housing 20 Circuits

Sealing Cap

Female Terminal

Diode

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Male Housing, 2 Circuits

Connector Delphi Female 6 Cavities

Lock Connector

Seal

Female Terminal

Female Housing 6 Circuits

Lock

Female Terminal

Female Terminal

Female Housing

Lock

Lock | PACKARD 15430900

Plug

Wire Seal

Seal

Female Terminal

Terminal

Cover

Housing 56 Circuits

Plate

Plug

Plug

Plate

Terminal

Terminal

Terminal

Housing

Lock

Seal

Female Terminal

Male Housing, 4 Circuits

Lock

Wire Seal

Seal

Female Terminal

Terminal

Housing

Lock

Seal

Female Terminal

Male Terminal Housing, 2 Circuits

Wire Seal

Male Terminal

Male Terminal Housing, 2 Circuits

Wire Seal

Male Terminal

Open Barrel Terminal

Terminal

Housing

Seal Wire

Terminal
