08- Electric - Front Section

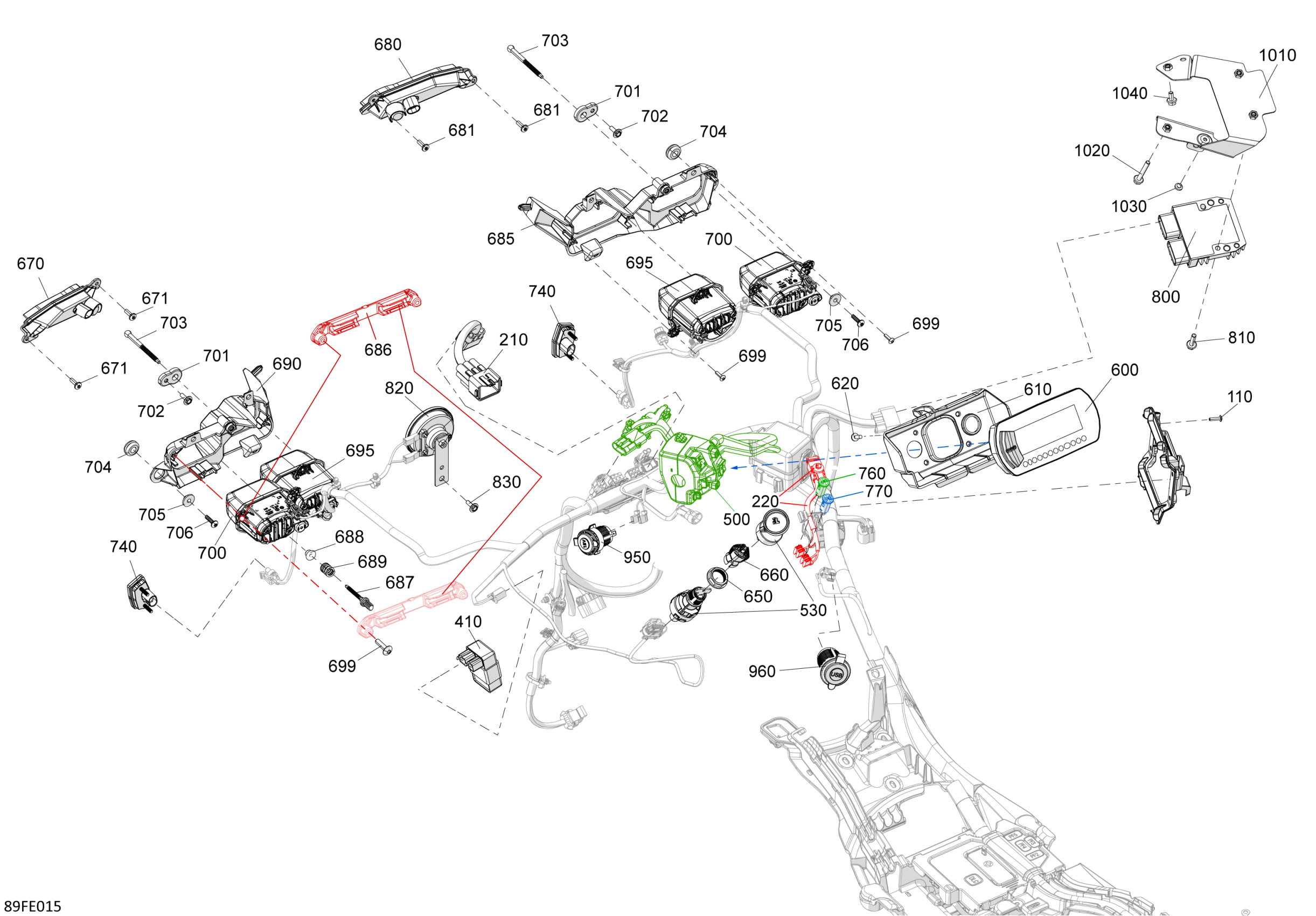

Can-Am CE - OUT-MAX - 4X4 - XT - 700 - 1YSE - Platinum Silver Satin - 2025 08- Electric - Front Section Diagram
#
110
Torx-Truss Pt K40 X 16
250000759
Unavailable
210
Switch Wiring Harness
710009366
Unavailable
220
Marker Light Wiring Harness
710007616
Unavailable
410
Flasher Unit
710003239
Unavailable
500
LH Front Multifunction Switch
710007609
Unavailable
530
Terminal DESS CAN | CARB Vehicle
710008832
Unavailable
600
Multifunction Compact Gauge
710008298
Unavailable
610
Int Gauge Support
710007694
Unavailable
620
Torx Screw K50 X 16
250000720
Unavailable
650
Specialized Nut
278004274
Unavailable
660
Grey Key RFID | Except Model Europe, Except T3
710004964
Unavailable
670
LH Front Daytime Headlight
710006495
Unavailable
671
Torx Screw K50 X 16
250000720
Unavailable
680
RH Front Daytime Headlight
710006496
Unavailable
681
Torx Screw K50 X 16
250000720
Unavailable
685
RH Front Headlight Support
710009678
Unavailable
686
Support Pivot | Not Shown
517309049
Unavailable
687
Threaded Rod | Not Shown
517309133
Unavailable
688
Specialized Nut | Not Shown
517309134
Unavailable
689
Compression Spring | Not Shown
517309058
Unavailable
690
LH Front Headlight Support
710009677
Unavailable
695
HIgh Beam Light
710006910
Unavailable
699
Torx-Truss Pt K40 X 16
250000759
Unavailable
700
Low Beam Light
710008088
Unavailable
701
Ball Socket
293900157
Unavailable
702
Screw PT Type K-50 X 16
250000959
Unavailable
703
Ajustment Screw
710005837
Unavailable
704
Grommet
705003264
Unavailable
705
Shoulder Bushing
710004749
Unavailable
706
Torx Screw K50 X 16
250000720
Unavailable
740
Amber Light Turn Signal
710007217
Unavailable
760
Trailer Turn Signal Pilot Lamp
710010098
Unavailable
770
Pilot Light Marker
710010099
Unavailable
800
Voltage Regulator | Package-DPS, Model-Europe
710005569
Unavailable
810
Hex. Flange Screw M6 X 25
207562544
Unavailable
820
Horn
710008852
Unavailable
830
Screw PT Type K-50 X 16
250000959
Unavailable
950
DC Outlet
710001248
Unavailable
960
USB Outlet
219400510
Unavailable
1010
Voltage Regulator Support
710009942
Unavailable
1020
Hex. Flange Screw M6 X 40
207664044
Unavailable
1030
Rubber Stopper
293830229
Unavailable
1040
Hex. Flange Screw M6 X 12
207661244
Unavailable
