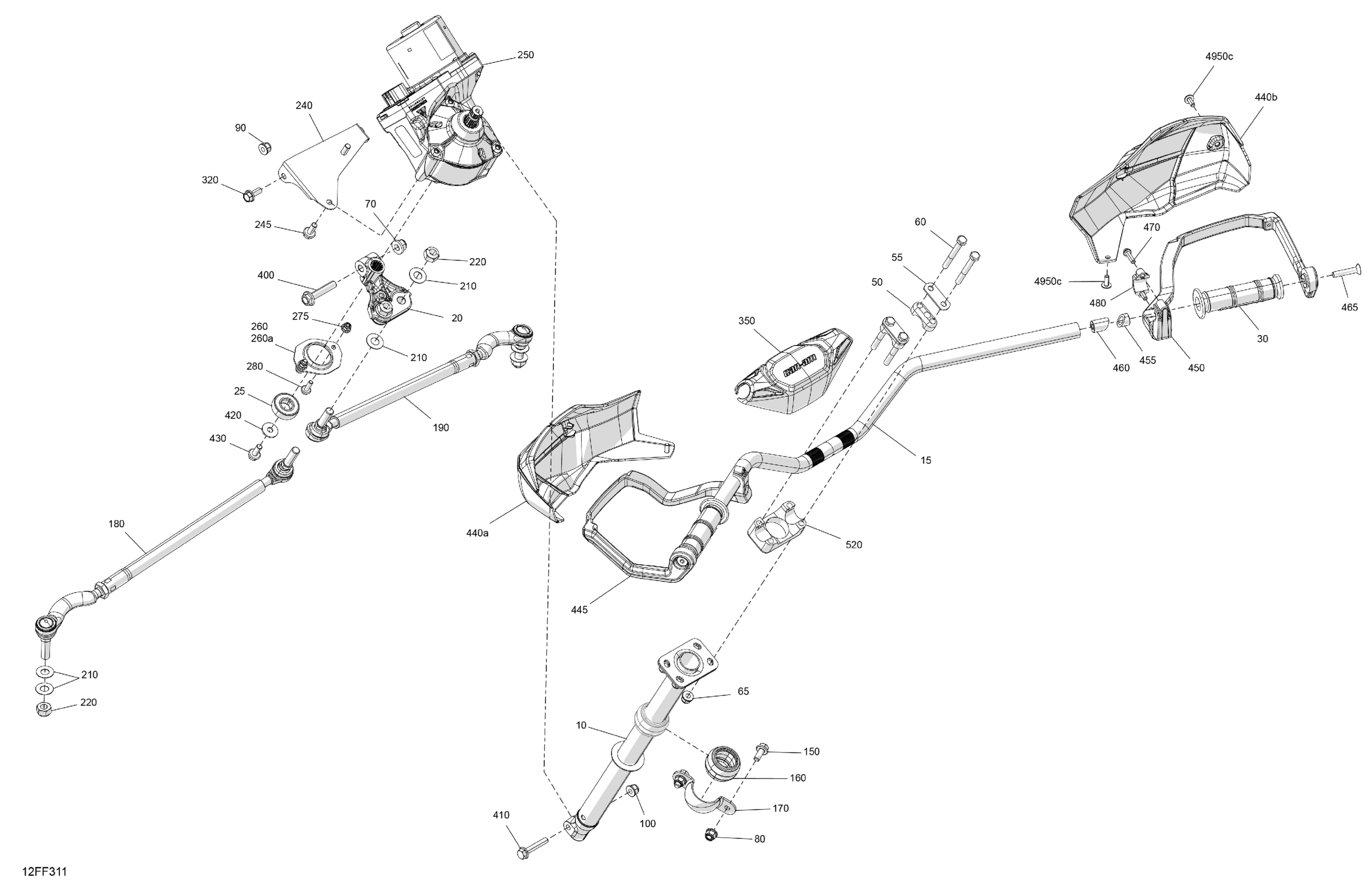

Can-Am CE - OUT-MAX - 4X4 - LTD - 1000R - 4WTJ - Dusty Navy Satin - 2026 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

709402739

$103.70

15

Handlebar

709402985

$28.33

20

Pitman Arm

709403064

$44.00

25

Ball Bearing

709402499

$16.39

30

Handle Grip

709400493

$13.82

50

Steering Support

709401799

$20.12

55

Stiffner

709400509

$4.30

60

Hex. Screw M8 X 70

207087044

$1.99

65

Hex. Elastic Flange Nut M8

233281416

$1.43

70

Hex. Flange Elastic Nut M10

233201436

$2.00

80

Hex. Elastic Flange Nut M8

233281416

$1.43

90

Hex. Elastic Flange Nut M8

233281416

$1.43

100

Hex. Elastic Flange Nut M8

233281416

$1.43

150

Hex. Flange Screw M8 X 20

207682044

$1.06

160

Spherical Bushing

709402169

$5.96

170

Upper Column Attachment

709400827

$0.97

180

LH Tie Rod Ass'y

709402737

$58.18

190

RH Tie Rod Ass'y

709402738

$58.18

210

Hardened Washer

706200281

$2.69

220

Hex. Elastic Hex. Nut M12

250100089

$0.45

240

Power Steering Support

709402182

$17.13

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

250

Power Steering Ass'y

709402871

$1,699.22

260

Lower Bearing Support | Includes 260 to 260a

709402360

$9.91

260a

Lower Bearing Support

709402713

$39.52

275

Hex. Flange Elastic Nut M6

233261466

$1.91

280

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

320

Hex. Flange Screw M8 X 20

207682044

$1.06

350

Handlebar Trim

709402570

$21.61

400

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$6.99

410

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.79

420

Flat Washer 8 mm

234082410

$1.27

430

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

440a

LH Handlebar Air Deflector

709402830

$32.06

440b

RH Handlebar Air Deflector

709402831

$32.06

445

LH Deflector Support

709402412

$22.36

450

RH Deflector Support

709402413

$22.36

455

Expansion Plug

709403128

$17.88

460

Expansion Plug

709403130

$17.13

465

Socket Head Screw | X

205384034

$5.96

470

Hex Flange Screw M6 X 25

229000711

$1.96

480

Clamp And Screw Kit

507032477

$22.36

520

Handlebar Riser Block

709402987

$20.12

4950a

Hex Screw Washer Head M8 X 20

207582054

$3.00

4950b

Socket Head Screw S.Grip M8 X 35

250001297

$2.48

4950c

Torx Head Screw M6 X 16

250000717

$2.00
