Description

Price

200

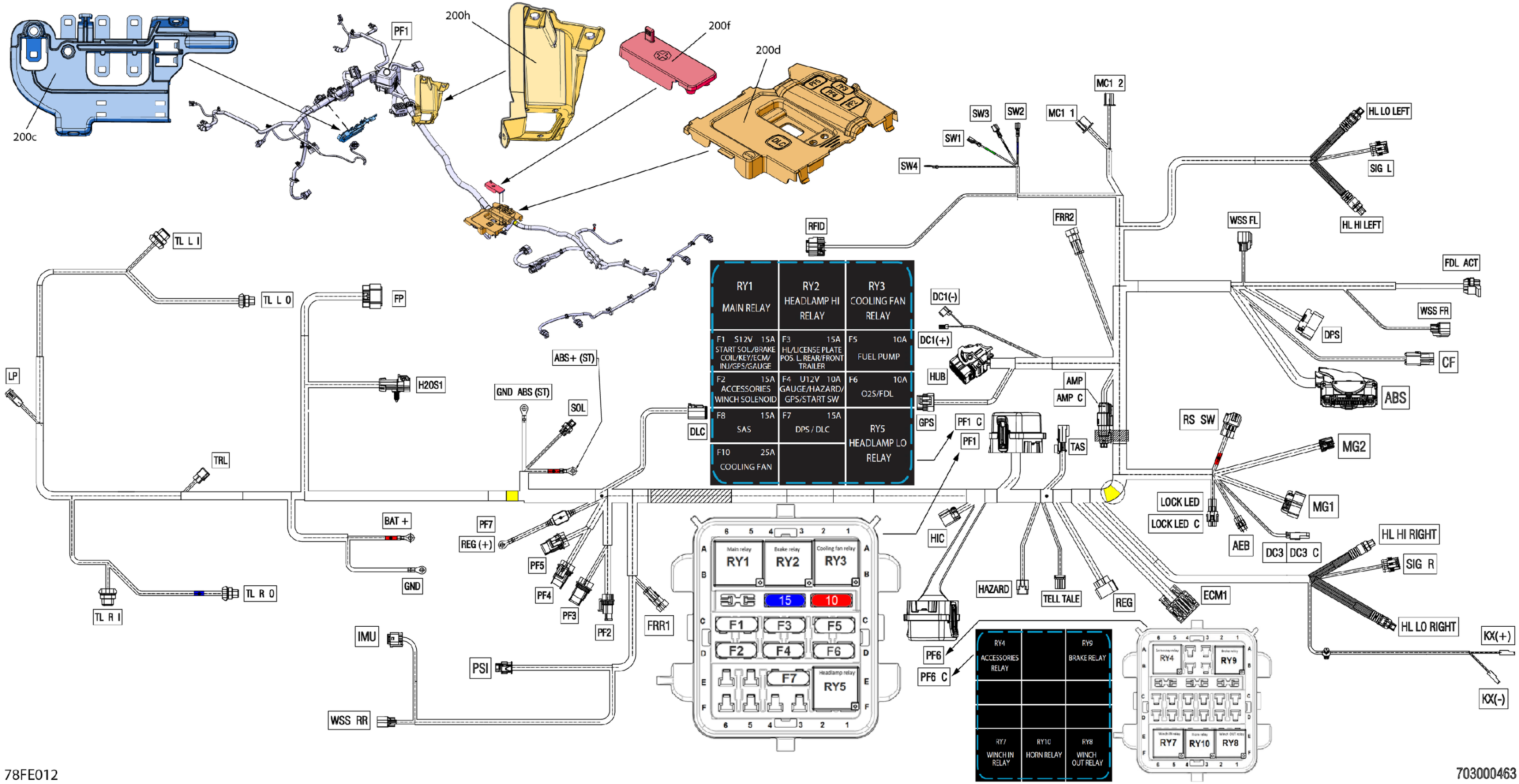

Main Wiring Harness

710009386

$1,250.72

200c

Connector Support

710007290

$17.88

200d

Fuse Holder Cover

710007296

$44.00

200f

Positive Terminal Cap

710008598

$10.28

200h

Fuse Box Support

710009930

$6.87

ABS

Cover With CPA

710008720

$18.63

ABS

Connector Bosch Female 46 Cavities

710008719

$42.51

ABS

Housing Fill Plug 2.8

710008725

$23.85

ABS

Plug 1.2

710008730

$7.63

ABS

Connector Seal Bosch1.2

710008729

$42.51

ABS

Connector Seal Bosch 4.8

710008722

$42.51

ABS

Bosch Female Terminal 1.2

710008726

$7.04

ABS

Bosch Female Terminal 4.8

710008721

$7.04

ABS+ (ST)

Terminal

710000913

$5.30

AEB

Sumitomo Female Connector 2 Cavities

710008152

$8.87

AEB

Wire Seal

710000402

$4.28

AEB

Female Terminal

409012100

$4.28

AMP

Housing 6 Circuits

278002894

$13.03

AMP

Sealing Cap

278002860

$1.63

AMP

Female Terminal 22 AWG

515178349

$1.76

AMP

Female Terminal

515178018

$0.90

AMP C

Housing 6 Circuits

278003866

$12.70

AMP C

Sealing Cap

278002860

$1.63

BAT (+)

Open Barrel Terminal

278001392

$4.00

CF

Clip

710001038

$4.96

CF

Female Housing, 2 Circuits

278000217

$8.72

CF

Wire Seal

278000218

$4.00

CF

Male Terminal

409004300

$5.30

D2

Diode

409012700

$10.51

D5

Diode

409012700

$10.51

D6

Diode

409012700

$10.51

DC1

Female Terminal

409010300

$4.00

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Female Terminal

515175231

$4.00

DC3 C

Male Housing, 2 Circuits

710000667

$7.25

DLC

Female Housing 6 Circuits

710002706

$18.63

DLC

Lock

710002705

$4.15

DLC

Female Terminal

710005438

$3.88

DLC

Female Terminal

710005439

$4.15

DPS

Female Housing

710004989

$7.00

DPS

Lock

710001222

$1.93

DPS

Lock | PACKARD 15430900

710005098

$1.57

DPS

Plug

710002075

$2.84

DPS

Wire Seal

278002186

$5.18

DPS

Seal

710003153

$0.91

DPS

Female Terminal

278002187

$5.79

DPS

Terminal

710001873

$2.19

ECM1

Cover

515178601

$16.39

ECM1

Housing 56 Circuits

515178595

$27.58

ECM1

Plate

515178604

$4.16

ECM1

Plate

515178604

$4.16

ECM1

Plug

515178599

$2.99

ECM1

Plug

515178599

$2.99

ECM1

Plug

515178600

$2.99

ECM1

Plate

515178603

$4.16

ECM1

Plate

515178603

$4.16

ECM1

Terminal

515178598

$3.69

ECM1

Terminal

515178597

$14.52

ECM1

Terminal

515178596

$3.79

ECM1

Terminal

515178596

$3.79

ECM1

Terminal

515178598

$3.69

ECM1

Terminal

515178597

$14.52

FDL ACT

Connector Delphi Female 6 Cavities

710006038

$74.60

FDL ACT

Lock Connector

710006039

$3.43

FDL ACT

Seal

278001482

$2.93

FDL ACT

Female Terminal

515175941

$2.40

FP

Male Housing, 4 Circuits

278002185

$6.73

FP

Lock

710001222

$1.93

FP

Wire Seal

278002186

$5.18

FP

Seal

710003153

$0.91

FP

Female Terminal

278002187

$5.79

FP

Terminal

710001873

$2.19

FRR1

Male Terminal Housing, 2 Circuits

409209400

$14.52

FRR1

Wire Seal

515176621

$6.79

FRR1

Male Terminal

515176164

$6.24

FRR2

Male Terminal Housing, 2 Circuits

409209400

$14.52

FRR2

Wire Seal

515176621

$6.79

FRR2

Male Terminal

515176164

$6.24

GND

Open Barrel Terminal

278001392

$4.00

GND ABS (ST)

Terminal

710000913

$5.30

GPS

Female Terminal Housing 6 Circuits

278002299

$8.58

GPS

Plug

515175812

$1.96

GPS

Female Terminal

710001119

$4.96

HAZARD

Cap

710000080

$6.28

HAZARD

Wire Seal

710000402

$4.28

HAZARD

Female Terminal

409012100

$4.28

HIC

Housing

515177205

$18.63

HIC

Lock

710001222

$1.93

HIC

Seal Wire

710001332

$3.12

HIC

Terminal

710001228

$3.12

HL HI LEFT

Housing

710007660

$7.51

HL HI LEFT

Lock

710001152

$4.00

HL HI LEFT

Wire Seal

710001163

$5.85

HL HI LEFT

Female Terminal

710001164

$6.79

HL HI RIGHT

Housing

710007660

$7.51

HL HI RIGHT

Lock

710001152

$4.00

HL HI RIGHT

Wire Seal

710001163

$5.85

HL HI RIGHT

Female Terminal

710001164

$6.79

HL LO LEFT

Female Housing, 2 Circuits

515177192

$7.25

HL LO LEFT

Lock

710001152

$4.00

HL LO LEFT

Wire Seal

710001163

$5.85

HL LO LEFT

Female Terminal

710001164

$6.79

HL LO RIGHT

Female Housing, 2 Circuits

515177192

$7.25

HL LO RIGHT

Lock

710001152

$4.00

HL LO RIGHT

Wire Seal

710001163

$5.85

HL LO RIGHT

Female Terminal

710001164

$6.79

HO2S1

Housing

710002466

$2.90

HO2S1

Lock

515178661

$4.15

HO2S1

Seal

278001482

$2.93

HO2S1

Gold Terminal

710002597

$2.90

HO2S1

Terminal

710000736

$5.19

HUB

Cover

710007650

$34.30

HUB

Female Terminal Housing 53 Circuit

710007651

$44.75

HUB

Plug

710007617

$14.40

HUB

Plug

710001592

$2.06

HUB

Plug

710001593

$2.06

HUB

Seal Joint

710007620

$6.33

HUB

Femal Terminal

710007658

$5.61

HUB

Female Terminal

710001589

$2.06

HUB

Terminal

710001728

$5.52

HUB

Female Terminal

710001727

$2.93

IMU

Housing

710003730

$13.75

IMU

Wire Seal

710001118

$1.19

IMU

Female Terminal

710010230

$8.10

KX

Female Terminal Housing, 1 Circuit

409010400

$7.25

KX

Female Terminal

409010100

$5.30

LOCK LED

Wire Seal

710000402

$4.28

LOCK LED

Male Terminal

409011300

$5.61

LOCK LED

Male Terminal

409011300

$5.61

LOCK LED C

Cap

710000080

$6.28

LP

Male Terminal Housing, 2 Circuits

515175654

$7.25

LP

Male Terminal

515175232

$1.45

MC1 1

Female Housing

710004047

$13.12

MC1 1

Terminal

710002315

$4.19

MC1 2

Female Housing

710004048

$13.75

MC1 2

Terminal

710002315

$4.19

MG1

Sumitomo Female Connector 13 Cavities

710009839

$8.87

MG1

Plug

710008931

$8.15

MG1

Connector Seal

710009813

$12.75

MG1

Sumitomo Female Terminal

710009309

$4.19

MG2

Sumitomo Female 6 Cavities Connector

710009306

$8.87

MG2

Plug

710008931

$8.15

MG2

Connector Seal

710009813

$12.75

MG2

Sumitomo Female Terminal

710009309

$4.19

PF1

Fuse Base Ass'y

278003448

$30.57

PF1

Wire Seal

278000216

$2.93

PF1

Wire Seal

278001065

$5.85

PF1

Wire Seal

278000218

$4.00

PF1

Female Terminal

710000918

$5.85

PF1

Female Terminal

278002578

$0.99

PF1 C

Fuse Cover

278003553

$3.79

PF1 C

Fuses Decal

710009393

Unavailable

PF1-F1

Little Fuse, 15 Ampere

710000745

$7.78

PF1

Little Fuse, 25 Ampere

278002389

$4.28

PF1-F2

Little Fuse, 15 Ampere

710000745

$7.78

PF1-F3

Little Fuse, 15 Ampere

710000745

$7.78

PF1-F4

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F5

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F6

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F7

Little Fuse, 15 Ampere

710000745

$7.78

PF1-RY1

Relay

715900824

$18.63

PF1-RY2

Relay

715900824

$18.63

PF1-RY3

Relay

715900824

$18.63

PF1-RY5

Relay

715900824

$18.63

PF1-SP2

Little Fuse, 15 Ampere

710000745

$7.78

PF1-SP3

Little Fuse, 10 Amperes

710000744

$8.31

PF2

Fuse

710001613

$8.31

PF2

Fuse Holder

278001325

$8.31

PF2

Female Terminal

710000357

$5.85

PF3

Fuse

710001613

$8.31

PF3

Fuse Holder

278001325

$8.31

PF3

Female Terminal

710000357

$5.85

PF3

Female Terminal

710000113

$5.85

PF4

Fuse

710001613

$8.31

PF4

Fuse Holder

278001325

$8.31

PF4

Female Terminal

710000357

$5.85

PF5

25 Amp Fuse

278003867

$3.16

PF5

Fuse Holder

278001325

$8.31

PF5

Female Terminal

710000357

$5.85

PF6

Fuse Base Ass'y

278003448

$30.57

PF6

Wire Seal

278000216

$2.93

PF6

Wire Seal

278001065

$5.85

PF6

Wire Seal

278000218

$4.00

PF6

Female Terminal

710000918

$5.85

PF6

Female Terminal

278002578

$0.99

PF6 C

Fuse Cover

278003553

$3.79

PF6 C

Fuses Decal

710009392

Unavailable

PF6-RY10

Relay

715900824

$18.63

PF6-RY4

Relay

715900824

$18.63

PF6-RY7

Relay

715900824

$18.63

PF6-RY8

Relay

715900824

$18.63

PF6-RY9

Relay

715900824

$18.63

PF7

Fuse, 50 AMP

710001048

$4.75

PF7

Fusebox 60 Amp

710002243

$23.85

PSI

Connector Tyco Female 3 Cavities

710008885

$16.39

PSI

Wire Seal

710001118

$1.19

PSI

Tyco Terminal Female

710008886

$4.19

R1

Resistor

710005179

$2.24

R2

Resistor

710006155

$2.24

R5

Resistor

710010437

$3.06

R6

Resistor

710010438

$3.06

REG

Female Housing, 3 Circuits

710000879

$24.60

REG

Cap

710000882

$10.55

REG

Seal

710001932

$3.06

REG

Terminal

710001934

$5.18

REG (+)

Terminal

710000913

$5.30

RFID

Female Delphi Connector 5 Cavities

710007151

$15.64

RFID

Lock

710007243

$3.93

RFID

Wire Seal

710001163

$5.85

RFID

Female Terminal

710001164

$6.79

RS SW

Male Terminal Housing, 6 Circuits

710000835

$15.64

RS SW

Cap

710000080

$6.28

RS SW

Wire Seal

710000402

$4.28

RS SW

Male Terminal

409011300

$5.61

SIG L

Female Housing, 3 Circuits

409209600

$34.30

SIG L

Wire Seal

515176621

$6.79

SIG L

Female Terminal

710001340

$4.96

SIG R

Female Housing, 3 Circuits

409209600

$34.30

SIG R

Wire Seal

515176621

$6.79

SIG R

Female Terminal

710001340

$4.96

SOL

Female Housing, 2 Circuits

515177192

$7.25

SOL

Lock

710001152

$4.00

SOL

Seal Wire

710001153

$2.06

SOL

Terminal

710000925

$2.93

SW1

Female Terminal

409010700

$4.93

SW2

Female Terminal

409010700

$4.93

SW3

Female Terminal

409010700

$4.93

SW4

Open Barrel

278000992

$2.06

TAS

Housing

710001231

$11.69

TAS

Lock 6 Positions

710005296

$0.79

TAS

Seal

710001233

$2.93

TAS

Terminal

710001224

$2.93

TELL TALE

Female Terminal Housing, 4 Circuits

515175845

$7.78

TELL TALE

Female Terminal

515175231

$4.00

TL L I

Housing

710000645

$14.34

TL L I

Lock

710000642

$3.43

TL L I

Seal

278001482

$2.93

TL L I

Female Terminal

710001134

$5.85

TL L O

Housing

710002177

$3.12

TL L O

Lock

710002043

$0.81

TL L O

Seal

278001482

$2.93

TL L O

Female Terminal

710001134

$5.85

TL R I

Housing

710000645

$14.34

TL R I

Lock

710000642

$3.43

TL R I

Seal

278001482

$2.93

TL R I

Female Terminal

710001134

$5.85

TL R O

Housing

710002177

$3.12

TL R O

Lock

710002043

$0.81

TL R O

Seal

278001482

$2.93

TL R O

Female Terminal

710001134

$5.85

TRL

Female Housing, 6 Circuits

710000081

$7.88

TRL

Wire Seal

710000402

$4.28

TRL

Female Terminal

409012100

$4.28

WSS FL

Connector 2 Pins

710005669

$2.24

WSS FL

Seal

710005689

$2.09

WSS FL

Female Terminal 18-20 AWG

515178348

$1.57

WSS FR

Connector 2 Pins

710005669

$2.24

WSS FR

Seal

710005689

$2.09

WSS FR

Female Terminal 18-20 AWG

515178348

$1.57

WSS RR

Connector 2 Pins

710005669

$2.24

WSS RR

Seal

710005689

$2.09

WSS RR

Female Terminal 18-20 AWG

515178348

$1.57

Can-Am CE - OUT-MAX - 4X4 - LTD - 1000R - 4WSD - Dusty Navy - 2025 Electric - Main Harness - 710009386 Diagram

Main Wiring Harness

Connector Support

Fuse Holder Cover

Positive Terminal Cap

Fuse Box Support

Cover With CPA

Connector Bosch Female 46 Cavities

Housing Fill Plug 2.8

Plug 1.2

Connector Seal Bosch1.2

Connector Seal Bosch 4.8

Bosch Female Terminal 1.2

Bosch Female Terminal 4.8

Terminal

Sumitomo Female Connector 2 Cavities

Wire Seal

Female Terminal

Housing 6 Circuits

Sealing Cap

Female Terminal 22 AWG

Female Terminal

Housing 6 Circuits

Sealing Cap

Open Barrel Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Male Terminal

Diode

Diode

Diode

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Male Housing, 2 Circuits

Female Housing 6 Circuits

Lock

Female Terminal

Female Terminal

Female Housing

Lock

Lock | PACKARD 15430900

Plug

Wire Seal

Seal

Female Terminal

Terminal

Cover

Housing 56 Circuits

Plate

Plate

Plug

Plug

Plug

Plate

Plate

Terminal

Terminal

Terminal

Terminal

Terminal

Terminal

Connector Delphi Female 6 Cavities

Lock Connector

Seal

Female Terminal

Male Housing, 4 Circuits

Lock

Wire Seal

Seal

Female Terminal

Terminal

Male Terminal Housing, 2 Circuits

Wire Seal

Male Terminal

Male Terminal Housing, 2 Circuits

Wire Seal

Male Terminal

Open Barrel Terminal
