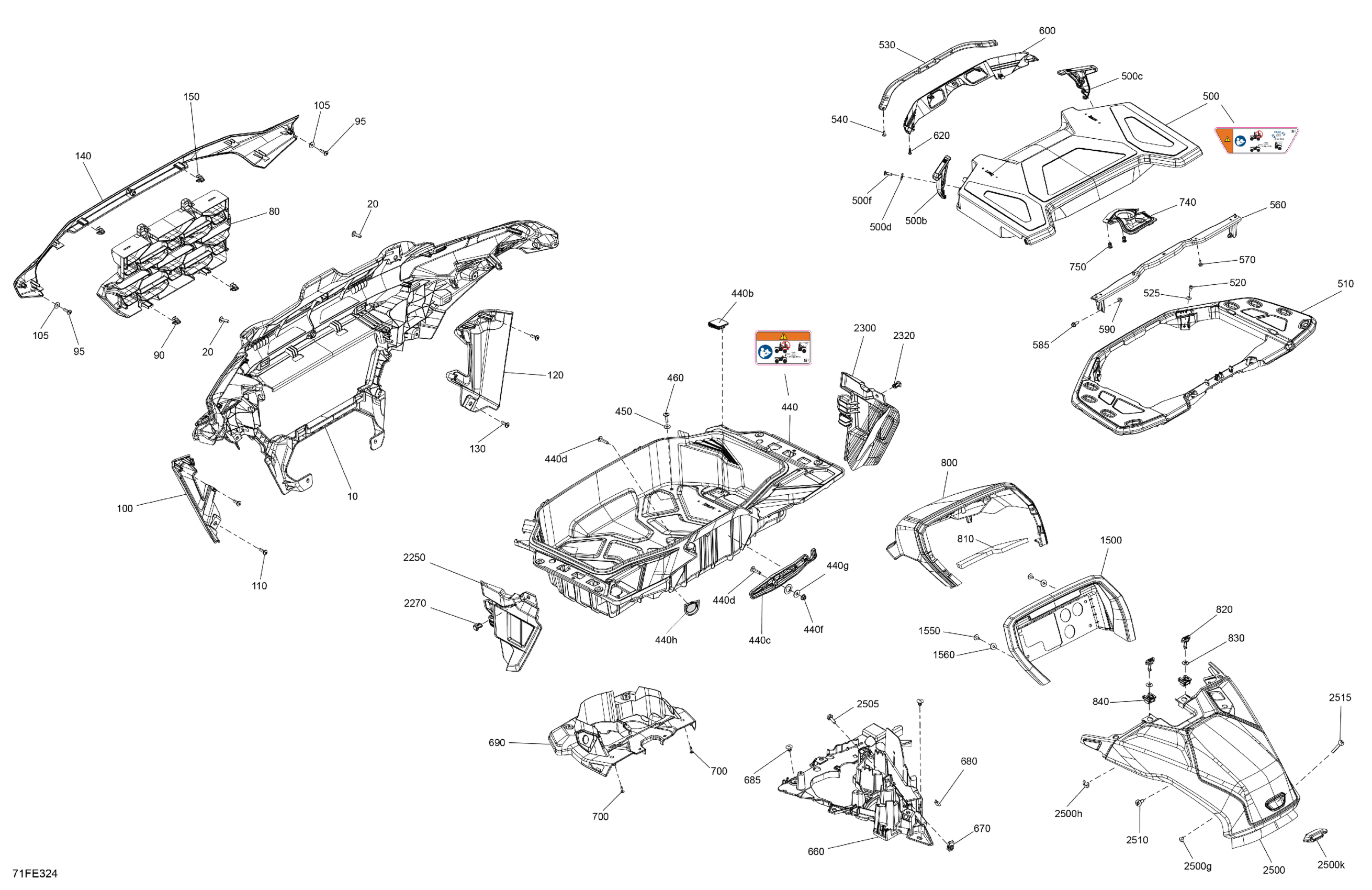

Can-Am CE - OUT-MAX - 4X4 - LTD - 1000R - 4WSD - Dusty Navy - 2025 Body - Front Section Diagram

#

Description
Price

10

Front Grille

705015377

$88.99

20

Screw Torx M6 X 20

250001257

$1.54

80

Air Inlet Grille

705017947

$23.85

90

Clip

517306478

$1.03

95

Torx Screw K50 X 16

250000720

$1.60

100

LH Grille Trim

705018179

$16.39

105

Washer M5

250200025

$0.70

110

Torx Screw K50 X 16

250000720

$1.60

120

RH Grille Trim

705018185

$16.39

130

Torx Screw K50 X 16

250000720

$1.60

140

Dusty Navy Blue, Front Grille Trim

705019485

$80.57

150

Clip

517306478

$1.03

440

Front Storage Box Kit

715010525

$206.69

440b

Box Cap

705015244

$7.75

440c

Cam

705018769

$9.91

440d

Torx Truss Screw M6 X 25

250000807

$2.00

440f

Hex. Flange Nut M6

233161414

$2.00

440g

Flat Washer

250200097

$2.00

440h

Body Cap

705014660

$5.70

450

Stainless Steel Flat Washer

234062670

$2.00

460

Screw Torx M6 X 20

250001257

$1.54

500

Front Box Cover Kit

715010805

$79.99

500b

Latch

707901191

$7.57

500c

Latch

707901192

$7.57

500d

Washer M5

250200025

$0.70

500f

Torx Screw K50 X 16

250000720

$1.60

510

Front Luggage Rack Ass'y

705019088

$84.30

520

Screw Torx M6 X 20

250001257

$1.54

525

Flat Washer 6 mm

234062410

$0.73

530

Rack Reinforcement

705211758

$55.19

540

Screw PT Type K-50 X 16

250000959

$2.00

560

Rack Reinforcement

705211757

$55.19

570

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.79

585

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

590

Hex. Flange Nut M8

233181414

$1.04

600

Front Box Trim

705017864

$89.99

620

Torx Screw Truss Head K50X20 T20

250000760

$2.00

660

Multi Purpose Support

705018722

$13.88

670

Panel Nut M6 X 1.0

250100198

$1.99

680

Clip

414479100

$1.81

685

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

690

Dashboard Support

705017688

$40.27

700

Torx Screw K50 X 16

250000720

$1.60

740

Seperation Panel

705019227

$41.01

750

Tuflok Plastic Rivet

293150230

$1.39

800

Dashboard

705015788

$41.76

810

Foam

705015867

$6.43

820

Quarter Turn

708400278

$4.15

830

Washer

708400286

$3.90

840

Clip

708400285

$3.90

1500

Console Trim

705018176

$41.76

1550

Plastite Screw M4 X 10

250000805

$2.00

1560

Washer M5

250200025

$0.70

2250

LH Front Radiator Deflector

705015256

$16.39

2270

Tuflok Plastic Rivet

293150230

$1.39

2300

RH Front Radiator Deflector

705015257

$16.39

2320

Tuflok Plastic Rivet

293150230

$1.39

2500

Glove Box Ass'y | Includes 2500 to 2500k

705019692

$68.63

2500g

Plastite Screw M4 X 10

250000805

$2.00

2500h

Circlip

293370050

$0.45

2500k

Insulating Pad

293830251

$7.81

2505

Hex. Flange Screw M6 X 20

207662046

$2.00

2510

Torx Screw M6 X 20

250000722

$1.54

2515

Torx Screw K50 X 16

250000720

$1.60
