Description

Price

160

Dusty Navy, LH Front Fender Kit

715010448

$409.99

165

LH Front Heat Shield

705019212

$19.99

170

Edge Clip

517302785

$0.88

175

Heat Shield

705019312

$19.99

180

Torx Screw K50 X 16

250000720

$1.69

190

Screw Torx M6 X 20

250001257

$1.68

200

Hex. Flange Nut M6

233161414

$2.11

210

Tuflok Plastic Rivet

293150230

$1.47

230

Deep Black, LH Front Fender Trim

705014662

$84.99

240

Trim Support Ass'y | Includes 240 to 240b

705015097

$16.86

240b

Insert Half Hex Body M6 x 1.0

250100199

$3.19

250

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

260

Torx Screw M6 X 20

250000722

$1.68

300

Dusty Navy, RH Front Fender Kit

715010477

$409.99

305

RH Front Heat Shield

705019385

$12.99

310

Edge Clip

517302785

$0.88

320

Torx Screw K50 X 16

250000720

$1.69

330

Screw Torx M6 X 20

250001257

$1.68

340

Hex. Flange Nut M6

233161414

$2.11

350

Tuflok Plastic Rivet

293150230

$1.47

370

Deep Black, RH Front Fender Trim

705014663

$84.99

380

Trim Support Ass'y | Includes 240 to 240b

705015097

$16.86

380b

Insert Half Hex Body M6 x 1.0

250100199

$3.19

390

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

400

Torx Screw M6 X 20

250000722

$1.68

1000

LH Front Wheel Arch Protector

705018011

$27.99

1020

RH Front Wheel Arch Protector

705017606

$27.99

1100

LH Upper Footstep

705017657

$82.99

1110

Tuflok Plastic Rivet

293150230

$1.47

1112

Panel Nut M6 X 1.0

250100198

$2.11

1115

Torx Head Screw M6 X 16

250000717

$2.11

1120

Rear Stud

517305985

$15.36

1130

Screw M4 X 16

250000725

$3.49

1150

RH Upper Footstep

705017659

$82.99

1160

Tuflok Plastic Rivet

293150230

$1.47

1162

Panel Nut M6 X 1.0

250100198

$2.11

1165

Torx Head Screw M6 X 16

250000717

$2.11

1170

Rear Stud

517305985

$15.36

1180

Screw M4 X 16

250000725

$3.49

1200

LH Footboard

705014262

$189.99

1210

Hex Flange Screw M6 X 25

250000841

$7.51

1220

Stainless Steel Flat Washer

234062670

$2.11

1230

RH Footboard

705014263

$139.99

1240

Hex Flange Screw M6 X 25

250000841

$7.51

1250

Stainless Steel Flat Washer

234062670

$2.11

1280

Footrest

705013651

$4.09

1290

Hex Flange Screw M6 X 25

250000841

$7.51

1295

Hex. Flange Nut M6

233161414

$2.11

1300

Footrest

705013651

$4.09

1310

Hex Flange Screw M6 X 25

250000841

$7.51

1320

Hex. Flange Nut M6

233161414

$2.11

2502

Central Heat Shield

705019323

$19.99

2503

Rear Central Heat Shield

705019370

$6.99

2504

LH Central Heat Shield

705019324

$19.99

2660

Switch Support

705014661

$13.49

2670

Pressure Nut

250100163

$0.98

2700

LH Central Panel

705015792

$54.99

2710

LH Rear Latch

517305774

$18.49

2720

Screw M4 X 16

250000725

$3.49

2730

LH Front Heat Shield

705018927

$3.89

2740

LH Rear Heat Shield

705019071

$19.99

2745

LH Lower Heat Shield

705019156

$19.99

2750

Clip

517306478

$1.09

2800

RH Central Panel

705015793

$70.99

2810

RH Rear Latch

517305773

$18.49

2820

Screw M4 X 16

250000725

$3.49

2830

RH Upper Heat Shield

705018928

$19.99

2840

RH Lower Heat Shield

705019072

$19.99

2850

Clip

517306478

$1.09

2900

LH Rear Fender Support Kit

715010497

$104.99

2910

Torx-Truss M/S M6 X 25

250001000

$5.29

2915

Flat Washer 6 mm

234062410

$0.77

2920

Panel Nut M6 X 1.0

250100198

$2.11

2940

Tuflok Plastic Rivet

293150230

$1.47

2950

RH Rear Fender Support

705014734

$83.99

2955

Heat Shield

705018605

$3.89

2956

Heat Shield

705018563

$3.89

2960

Torx-Truss M/S M6 X 25

250001000

$5.29

2965

Flat Washer 6 mm

234062410

$0.77

2970

Panel Nut M6 X 1.0

250100198

$2.11

2990

Tuflok Plastic Rivet

293150230

$1.47

3000

Dusty Navy Blue, LH Rear Fender

705019489

$204.99

3010

Panel Nut M6 X 1.0

250100198

$2.11

3020

Screw Torx M6 X 20

250001257

$1.68

3030

Flat Washer 6 mm

234062410

$0.77

3050

Deep Black, LH Rear Fender Trim

705014664

$84.99

3070

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

3200

Dusty Navy Blue, RH Rear Fender

705019490

$204.99

3210

Panel Nut M6 X 1.0

250100198

$2.11

3220

Screw Torx M6 X 20

250001257

$1.68

3230

Flat Washer 6 mm

234062410

$0.77

3250

Deep Black, RH Rear Fender Trim

705014665

$84.99

3270

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

4500

LH Extension Panel

705013653

$18.49

4510

Tuflok Plastic Rivet

293150230

$1.47

4520

LH Ext Heat Shield

705019157

$6.99

4550

RH Extension Panel

705013654

$18.49

4560

Tuflok Plastic Rivet

293150230

$1.47

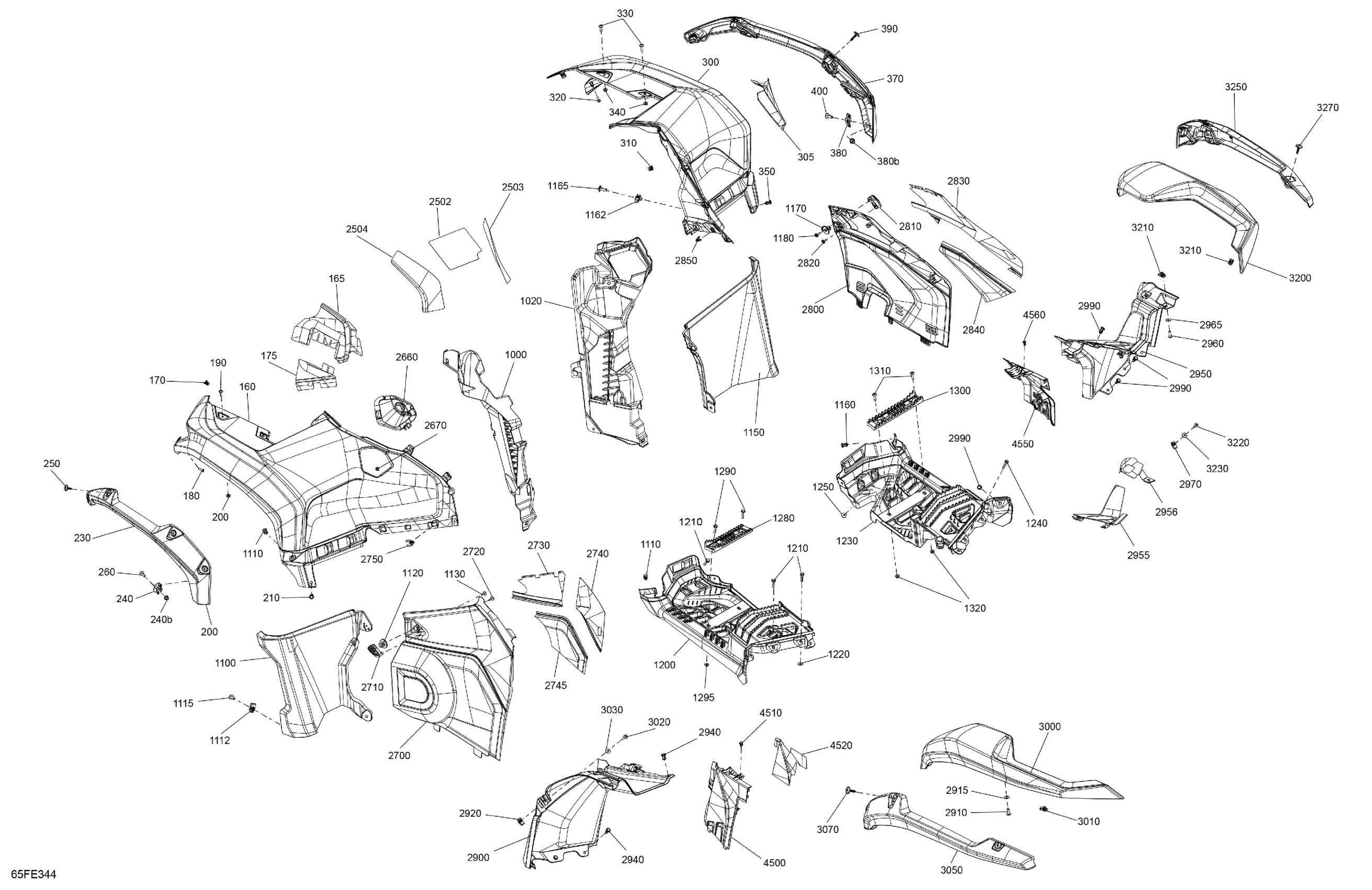

Can-Am Off-Road CE - OUT-MAX - 4X4 - LTD - 1000R - 4WSD - Dusty Navy - 2025 07- Body - Fender Kit Diagram

Dusty Navy, LH Front Fender Kit

LH Front Heat Shield

Edge Clip

Heat Shield

Torx Screw K50 X 16

Screw Torx M6 X 20

Hex. Flange Nut M6

Tuflok Plastic Rivet

Deep Black, LH Front Fender Trim

Trim Support Ass'y | Includes 240 to 240b

Insert Half Hex Body M6 x 1.0

Torx Screw Truss Head PT.K50 X 25

Torx Screw M6 X 20

Dusty Navy, RH Front Fender Kit

RH Front Heat Shield

Edge Clip

Torx Screw K50 X 16

Screw Torx M6 X 20

Hex. Flange Nut M6

Tuflok Plastic Rivet

Deep Black, RH Front Fender Trim

Trim Support Ass'y | Includes 240 to 240b

Insert Half Hex Body M6 x 1.0

Torx Screw Truss Head PT.K50 X 25

Torx Screw M6 X 20

LH Front Wheel Arch Protector

RH Front Wheel Arch Protector

LH Upper Footstep

Tuflok Plastic Rivet

Panel Nut M6 X 1.0

Torx Head Screw M6 X 16

Rear Stud

Screw M4 X 16

RH Upper Footstep

Tuflok Plastic Rivet

Panel Nut M6 X 1.0

Torx Head Screw M6 X 16

Rear Stud

Screw M4 X 16

LH Footboard

Hex Flange Screw M6 X 25

Stainless Steel Flat Washer

RH Footboard

Hex Flange Screw M6 X 25

Stainless Steel Flat Washer

Footrest

Hex Flange Screw M6 X 25

Hex. Flange Nut M6

Footrest

Hex Flange Screw M6 X 25

Hex. Flange Nut M6

Central Heat Shield

Rear Central Heat Shield

LH Central Heat Shield

Switch Support

Pressure Nut

LH Central Panel

LH Rear Latch

Screw M4 X 16

LH Front Heat Shield

LH Rear Heat Shield

LH Lower Heat Shield

Clip

RH Central Panel

RH Rear Latch

Screw M4 X 16

RH Upper Heat Shield

RH Lower Heat Shield

Clip

LH Rear Fender Support Kit

Torx-Truss M/S M6 X 25

Flat Washer 6 mm

Panel Nut M6 X 1.0

Tuflok Plastic Rivet

RH Rear Fender Support

Heat Shield

Heat Shield

Torx-Truss M/S M6 X 25

Flat Washer 6 mm
