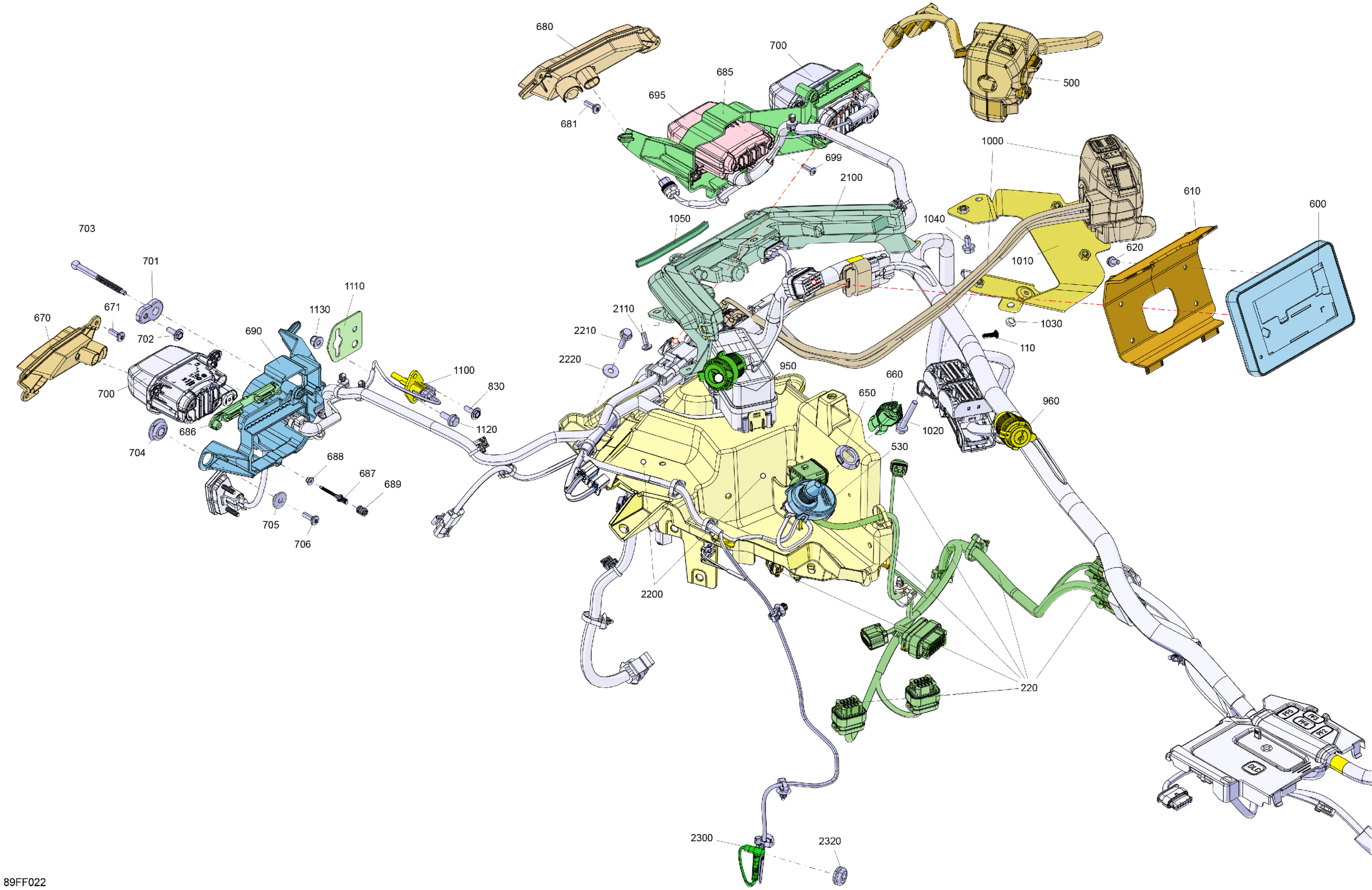

Can-Am CE - OUT-MAX - 4X4 - EV - 2VTA - Bright White - 2026 Electric - Front Section Diagram

#

Description
Price

110

Torx-Truss Pt K40 X 16

250000759

$2.11

220

Wiring Harness Ess

710010869

$329.99

500

LH Front Multifunction Switch Ass'y

710010418

$248.99

530

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

600

Multifunction Gauge 5

710011792

$599.99

610

Interior Gauge Support

710010406

$4.69

620

Hex. Flange Screw M5 X 10

207551044

$4.12

650

Specialized Nut

278004274

$3.28

660

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

670

LH Front Daytime Headlight

710006495

$85.99

671

Torx Screw K50 X 16

250000720

$1.69

680

RH Front Daytime Headlight

710006496

$85.99

681

Torx Screw K50 X 16

250000720

$1.69

685

RH Front Headlight Support

710009678

$47.99

686

Support Pivot | Not Shown

517309049

$2.79

687

Threaded Rod | Not Shown

517309133

$7.55

688

Specialized Nut | Not Shown

517309134

$1.01

689

Compression Spring | Not Shown

517309058

$7.41

690

LH Front Headlight Support

710009677

$44.99

695

HIgh Beam Light

710006910

$129.99

699

Torx-Truss Pt K40 X 16

250000759

$2.11

700

Low Beam Light

710008088

$139.99

701

Ball Socket

293900157

$9.59

702

Screw PT Type K-50 X 16

250000959

$2.11

703

Ajustment Screw

710005837

$6.35

704

Grommet

705003264

$4.09

705

Shoulder Bushing

710004749

$2.69

706

Torx Screw K50 X 16

250000720

$1.69

830

Screw PT Type K-50 X 16

250000959

$2.11

950

DC Outlet

710001248

$37.99

960

USB Connector

710008594

$50.99

1000

Accelerator Hand Lever

710010583

$309.99

1010

Voltage Regulator Support

710009942

$17.49

1020

Hex. Flange Screw M6 X 40

207664044

$2.22

1030

Rubber Stopper

293830229

$8.79

1040

Hex. Flange Screw M6 X 12

207661244

$2.11

1050

Trim 1000Mm Long

219704354

$15.99

1100

Air Temperature Sensor

515176366

$19.99

1110

Air Temperature Sensor Support

710009826

$8.43

1120

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1130

Hex. Flange Elastic Nut M6

233261466

$2.00

2100

Light Console

710009800

$164.49

2110

Torx Screw K50 X 16

250000720

$1.69

2200

Multi Purpose Support

710009827

$15.49

2210

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

2220

Flat Washer 6 mm

234062410

$0.77

2300

Pilot Light

710010720

$67.99

2320

Grommet

414036300

$2.79
