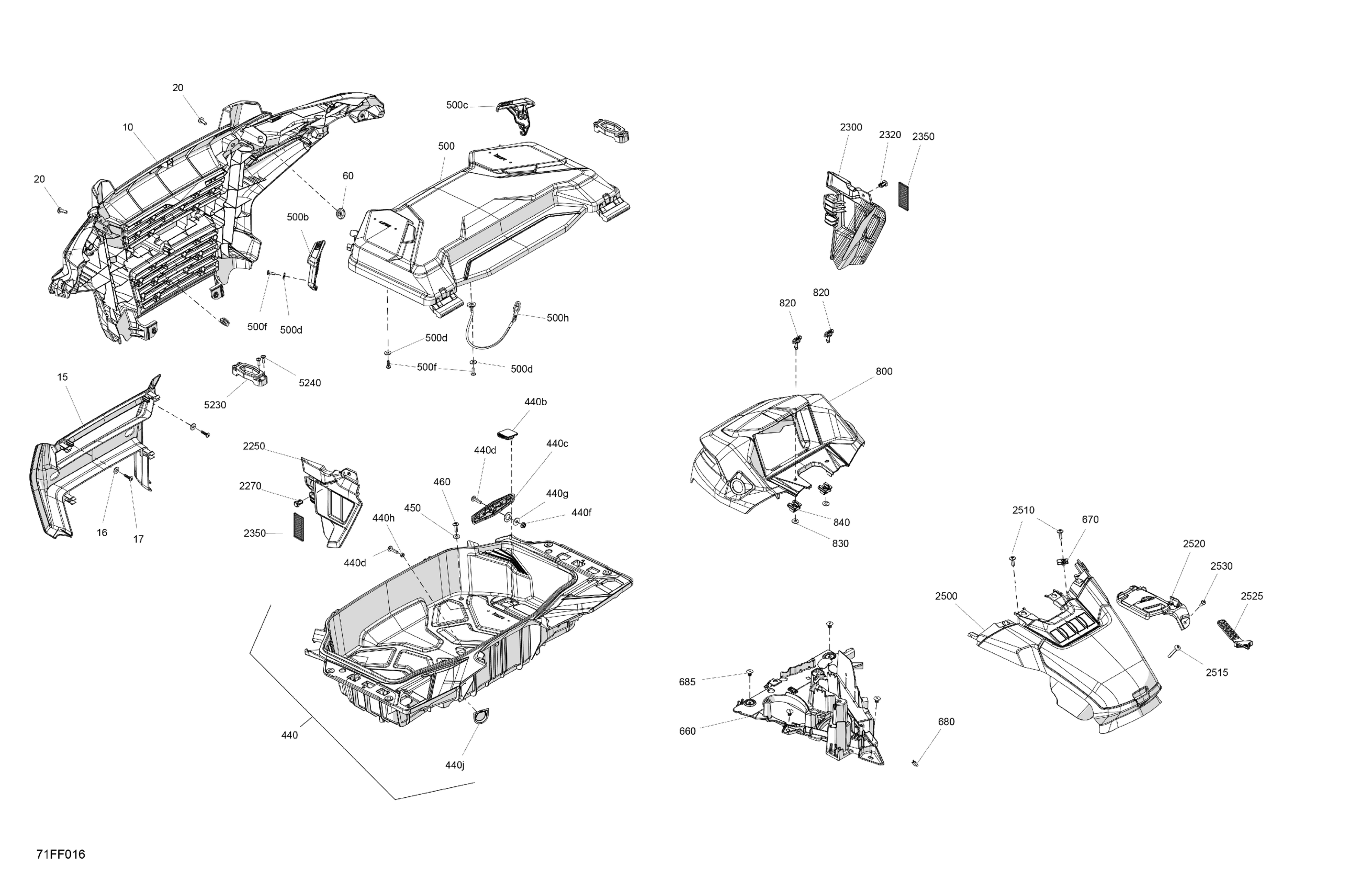

Can-Am Off-Road CE - OUT-MAX - 4X4 - EV - 2VTA - Bright White - 2026 07- Body - Front Section Diagram

Description

Price

Front Grille

705013201

$89.99

Trim Grille

705019539

$33.99

Washer M5

250200025

$0.74

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Screw Torx M6 X 20

250001257

$1.68

Grommet

705003264

$4.09

440

Front Storage Box Ass'y

705019455

Unavailable

440b

Box Cap

705015244

$9.49

440c

Cam

705018509

$11.99

440d

Torx Truss Screw M6 X 25

250000807

$2.11

440f

Hex. Flange Nut M6

233161414

$2.11

440g

Flat Washer

250200097

$2.11

440h

Bushing

708300737

$5.99

440j

Body Cap

705014660

$6.39

450

Stainless Steel Flat Washer

234062670

$2.11

460

Screw Torx M6 X 20

250001257

$1.68

500

Cover Box Assy | Includes 500 to 500h

705020013

$82.99

500b

Latch

707900789

$8.49

500c

Latch

707900799

$8.49

500d

Washer M5

250200025

$0.74

500f

Torx Screw K50 X 16

250000720

$1.69

500h

Retaining Cable

708304440

$33.99

660

Multi Purpose Support

705018661

$15.49

670

Panel Nut M6 X 1.0

250100198

$2.11

680

Clip

414479100

$1.90

685

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

800

Dashboard

705018184

$46.99

820

Quarter Turn

708400278

$4.29

830

Washer

708400286

$3.99

840

Clip

708400285

$3.99

2250

LH Front Radiator Deflector

705015256

$19.99

2270

Tuflok Plastic Rivet

293150230

$1.47

2300

RH Front Radiator Deflector

705015257

$19.99

2320

Tuflok Plastic Rivet

293150230

$1.47

2350

Amber, Reflector

520002680

$20.99

2500

Glove Box Ass'y

705019060

$66.99

2510

Torx Screw M6 X 20

250000712

$2.11

2515

Torx Truss Screw M6 X 50

250000749

$3.17

2520

Smartphone Support

705019279

$5.39

2525

Elastic Strip

705019280

$3.19

2530

Torx Screw K50 X 16

250000720

$1.69

5230

Linq Base Kit

715002350

$25.99

5240

Torx Screw K50 X 16

250000720

$1.69
