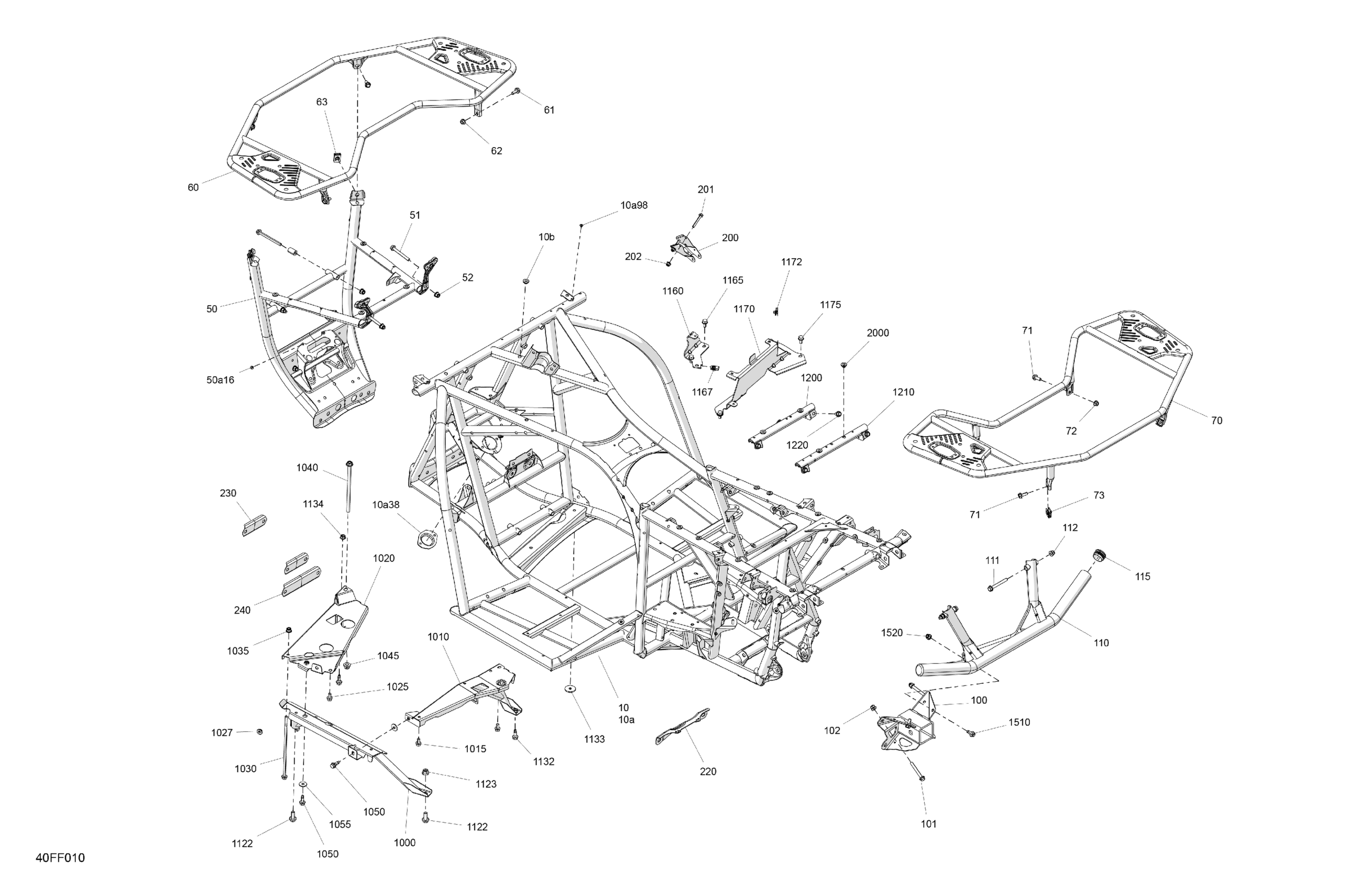

Can-Am Off-Road CE - OUT-MAX - 4X4 - EV - 2VTA - Bright White - 2026 06- Frame - System Diagram

#

Description
Price

10

Chassis Ass'y | Includes 10 to 10b

715010931

$2.00

10a

Chassis Ass'y | Includes 10 to 10b

715010931

$2.00

10a38

Lower Bearing Support

709402713

$43.99

10a98

Pop Rivet 3/16 X ,425

293150293

$0.35

10b

Threaded Insert

293450383

$2.61

50

Front Bumper | Includes 50 to 50a16

705208429

$264.99

50a16

Pop Rivet 3/16 X ,425

293150293

$0.35

51

Hex. Flange Screw M8 X 70

207687044

$7.41

52

Hex. Flange Elastic Nut M8

233281414

$1.47

60

Deep Black, Front Luggage Rack

705208148

$264.99

61

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

62

Hex. Flange Nut M8

233181414

$1.15

63

Panel Nut M8 X 1.25

250100236

$4.13

70

Deep Black, Rear Luggage Rack

705208247

$248.99

71

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

72

Hex. Flange Nut M8

233181414

$1.15

73

Panel Nut M8 X 1.25

250100236

$4.13

100

Trailer Hitch | Includes 100 to 100a3

705211925

Unavailable

101

Hex. Flange Screw, M8 X 65

207686544

$13.16

102

Hex. Flange Elastic Nut M8

233281414

$1.47

110

Deep Black, Rear Bumper

705209181

Unavailable

111

Hex. Flange Screw M8 X 70

207687044

$7.41

112

Hex. Flange Elastic Nut M8

233281414

$1.47

115

Cap

705202455

$5.69

200

Lever Support

705208228

$12.49

201

Hex. Flange Screw M6 X 45

207664544

$1.46

202

Hex. Flange Elastic Nut M6

233261466

$2.00

220

Rear Suspension Arm Reinforcement

705211974

Unavailable

230

Front Upper Suspension Arm Reinforcement

705212296

$5.49

240

Front Lower Suspension Arm Reinforcement

705211664

$5.49

1000

LH Lower Battery Support

705211972

$87.99

1010

RH Upper Battery Support

705211998

$87.99

1015

Hex Forming Screw Hd.Fl. Din. M8 X 16

210281640

$2.11

1020

Front Upper Battery Support

705212090

$87.99

1025

Hex Forming Screw Hd.Fl. Din. M8 X 16

210281640

$2.11

1027

Threaded Insert

293450383

$2.61

1030

Hex Flange Screw M8 X 235MM

518335077

$19.49

1035

Hex. Flange Elastic Nut M8

233281414

$1.47

1040

Geoblack, Hex. Flange Screw M10 X 185

250001334

$20.49

1045

Hex. Flange Elastic Nut M10

233201436

$2.11

1050

Hex Screw M8 S.Grip

250001085

$1.68

1055

Flat Washer 8 mm

234082410

$1.47

1122

Hex. Flange Screw M10 X 25

207602546

$2.11

1123

Hex. Flange Elastic Nut M10

233201436

$2.11

1132

Hex Screw M8 S.Grip

250001085

$1.68

1133

Washer

250200203

$2.11

1134

Hex. Flange Nut M8

233181414

$1.15

1160

Front Battery Charger Support

705212589

$21.99

1165

Hex Forming Screw Hd.Fl. Din. M8 X 16

210281640

$2.11

1167

Panel Nut M6 X 1.0

250100198

$2.11

1170

Rear Battery Charger Support

705212007

$21.99

1172

Panel Nut M6 X 1.0

250100198

$2.11

1175

Hex Forming Screw Hd.Fl. Din. M8 X 16

210281640

$2.11

1200

Front Upper Cross Member

705212028

$119.99

1210

Rear Upper Cross Member

705212030

$119.99

1220

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

1510

Hex. Flange Screw M8 X 20

207682044

$1.15

1520

Hex. Flange Elastic Nut M8

233281414

$1.47

2000

Threaded Insert

293450383

$2.61
