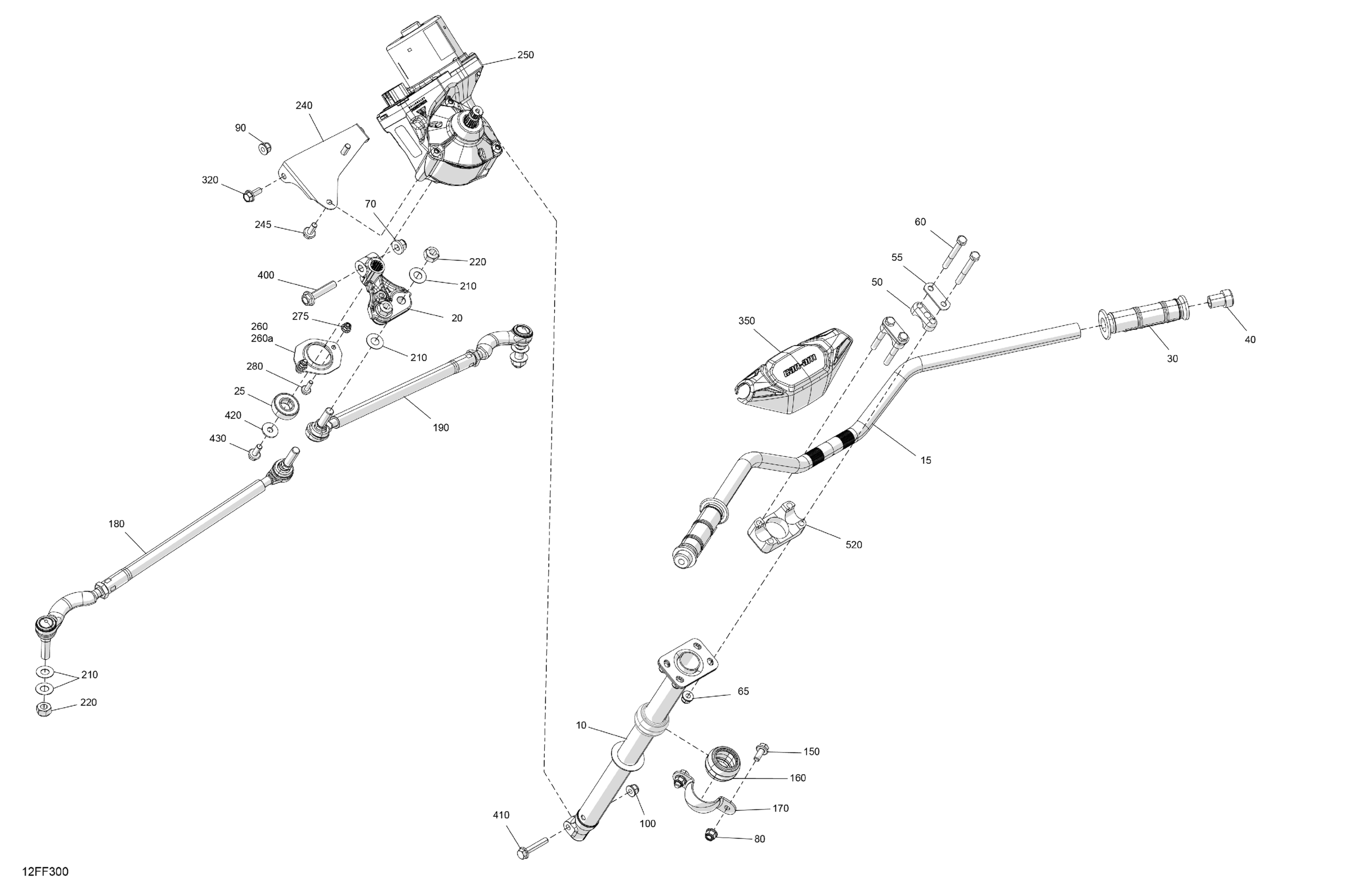

Can-Am CE - OUT-MAX - 4X4 - DPS - 1000R - 4RTB - Granite Grey - 2026 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

709402739

$114.99

15

Handlebar

709402985

$30.49

20

Pitman Arm

709403064

$48.99

25

Ball Bearing

709402499

$19.19

30

Handle Grip

709400493

$14.83

40

End Piece

709400449

$8.49

50

Steering Support

709401799

$22.49

55

Stiffner

709400509

$4.69

60

Hex. Screw M8 X 70

207087044

$2.19

65

Hex. Elastic Flange Nut M8

233281416

$1.48

70

Hex. Flange Elastic Nut M10

233201436

$2.11

80

Hex. Elastic Flange Nut M8

233281416

$1.48

90

Hex. Elastic Flange Nut M8

233281416

$1.48

100

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

160

Spherical Bushing

709402169

$7.65

170

Upper Column Attachment

709400827

$1.09

180

LH Tie Rod Ass'y

709402737

$62.49

190

RH Tie Rod Ass'y

709402738

$62.49

210

Hardened Washer

706200281

$2.85

220

Hex. Elastic Hex. Nut M12

250100089

$0.46

240

Power Steering Support

709402182

$20.99

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

250

Power Steering Ass'y

709402974

$1,218.99

260

Lower Bearing Support | Includes 260 to 260a

709402360

$11.99

260a

Lower Bearing Support

709402713

$43.99

275

Hex. Flange Elastic Nut M6

233261466

$2.00

280

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

320

Hex. Flange Screw M8 X 20

207682044

$1.15

350

Handlebar Trim

709402570

$24.49

400

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.41

410

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

420

Flat Washer 8 mm

234082410

$1.47

430

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

520

Handlebar Riser Block

709402987

$21.99

4950a

Hex Screw Washer Head M8 X 20

207582054

$3.17

4950b

Socket Head Screw S.Grip M8 X 35

250001297

$2.64

4950c

Torx Head Screw M6 X 16

250000717

$2.11
