Partiron

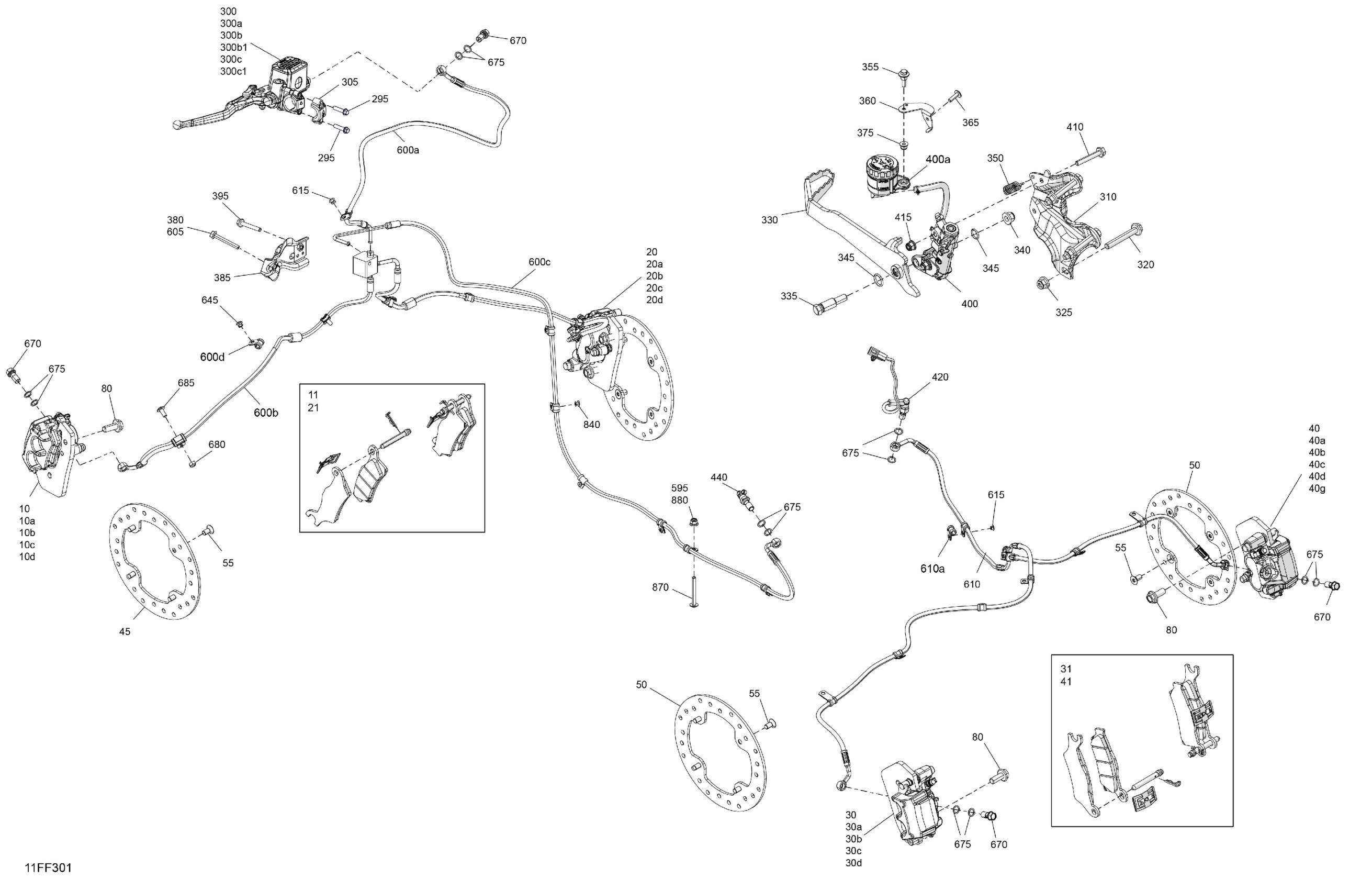

Can-Am CE - OUT-MAX - 4X4 - DPS - 1000R - 4RTB - Granite Grey - 2026 Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10d

705601808

$250.72

10a

LH Pad Brake

705602070

Unavailable

10b

Pin Set

705601016

$9.26

10c

Bleeding Screw

705601017

$5.90

10d

Retaining Spring

705601018

$7.55

11

LH/RH Pads Kit

705602167

$98.48

20

RH Front Brake Caliper | Includes 20 to 20d

705601809

$250.72

20a

PAD_BRAKE R - Call your local BRP dealership

705602071

Unavailable

20b

Pin Set

705601016

$9.26

20c

Bleeding Screw

705601017

$5.90

20d

Retaining Spring

705601018

$7.55

21

LH/RH Pads Kit

705602167

$98.48

30

LH Rear Brake Caliper | Includes 30 to 30f

705601810

$250.72

30a

LH Pad Brake

705602070

Unavailable

30b

Pin Set

705601016

$9.26

30c

Bleeding Screw

705601017

$5.90

30d

Retaining Spring

705601018

$7.55

31

LH/RH Pads Kit

705602167

$98.48

40

RH Rear Brake Caliper | Includes 40 to 40d

705601811

$250.72

40a

PAD_BRAKE R - Call your local BRP dealership

705602071

Unavailable

40b

Pin Set

705601016

$9.26

40c

Bleeding Screw

705601017

$5.90

40d

Retaining Spring

705601018

$7.55

40g

RH Pads Kit

705602168

$49.22

41

LH/RH Pads Kit

705602167

$98.48

45

Brake Disc

705602348

$83.55

50

Brake Disc

705602348

$83.55

55

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

80

Hex. Flange Screw M10 X 25

207502546

$2.00

295

Hex Flange Screw M6 X 25

229000711

$1.96

300

LH Front Brake Master Cylinder | Includes 300 to 300c1

705602120

$217.13

300a

Master Cylinder Lever

705602252

$46.99

300b

Clamp And Screw Kit

507032477

$22.36

300b1

Hex. Flange Screw M6 X 25

250000447

$2.00

300c

Cap Set

219800096

$20.12

300c1

Screw M4 X 20

415129356

$2.10

305

Clamp And Screw Kit

507032477

$22.36

310

Master Cylinder Support

705207200

$30.57

320

Hex. Flange Screw M10 X 70

207607046

$2.82

325

Hex. Flange Elastic Nut M10

233201436

$2.00

330

Brake Pedal

705602192

$52.96

335

Shoulder Screw M10

250000513

$6.36

340

Hex. Flange Elastic Nut M10

233201436

$2.00

345

O-Ring Seal

293300285

$3.79

350

Brake Pedal Spring

705600792

$8.42

355

Oil Tank Screw

705602073

$28.33

360

Oil Tank Support

705208962

$30.57

365

Torx Screw M6 X 20

250000722

$1.54

375

Hex. Flange Elastic Nut M6

233261466

$1.91

380

Hex. Flange Screw M6 X 45

207664544

$1.22

385

Hose Support

705602234

$6.63

395

Hex. Flange Screw M6 X 40

207664044

$2.12

400

Rear Brake Master Cylinder Ass'y | Includes 400 to 400a

705602296

$217.13

400a

Brake Fluid Reservoir

705602138

$216.39

410

Hex. Flange Screw M8 X 50

207685044

$1.60

415

Hex. Flange Elastic Nut M8

233281414

$1.31

420

Brake Switch

705601250

$55.19

440

Bleeding Screw

705601051

$10.97

595

Hex. Flange Elastic Nut M6

233261466

$1.91

600a

LH Front Master Cylinder Hose

705602271

$186.54

600b

Brake Hose

705602272

$216.39

600c

Brake Hose

705602273

$216.39

600d

Clamp

293650256

$5.00

605

Hex. Flange Screw M6 X 45

207664544

$1.22

610

Rear Caliper Hose | Includes 610 to 610a

705602002

Unavailable

610a

Clamp

293650256

$5.00

615

Pop Rivet 3/16 X ,425

293150293

$0.30

645

Pop Rivet 3/16 X ,425

293150293

$0.30

670

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

675

Washer

414920600

$1.75

680

Pop Rivet 3/16 X ,425

293150293

$0.30

685

Torx Truss M6X14

250000789

$5.06

840

Pop Rivet 3/16 X ,425

293150293

$0.30

870

Torx Screw M6 X 50

250000317

$2.00

880

Hex. Flange Elastic Nut M6

233261466

$1.91
