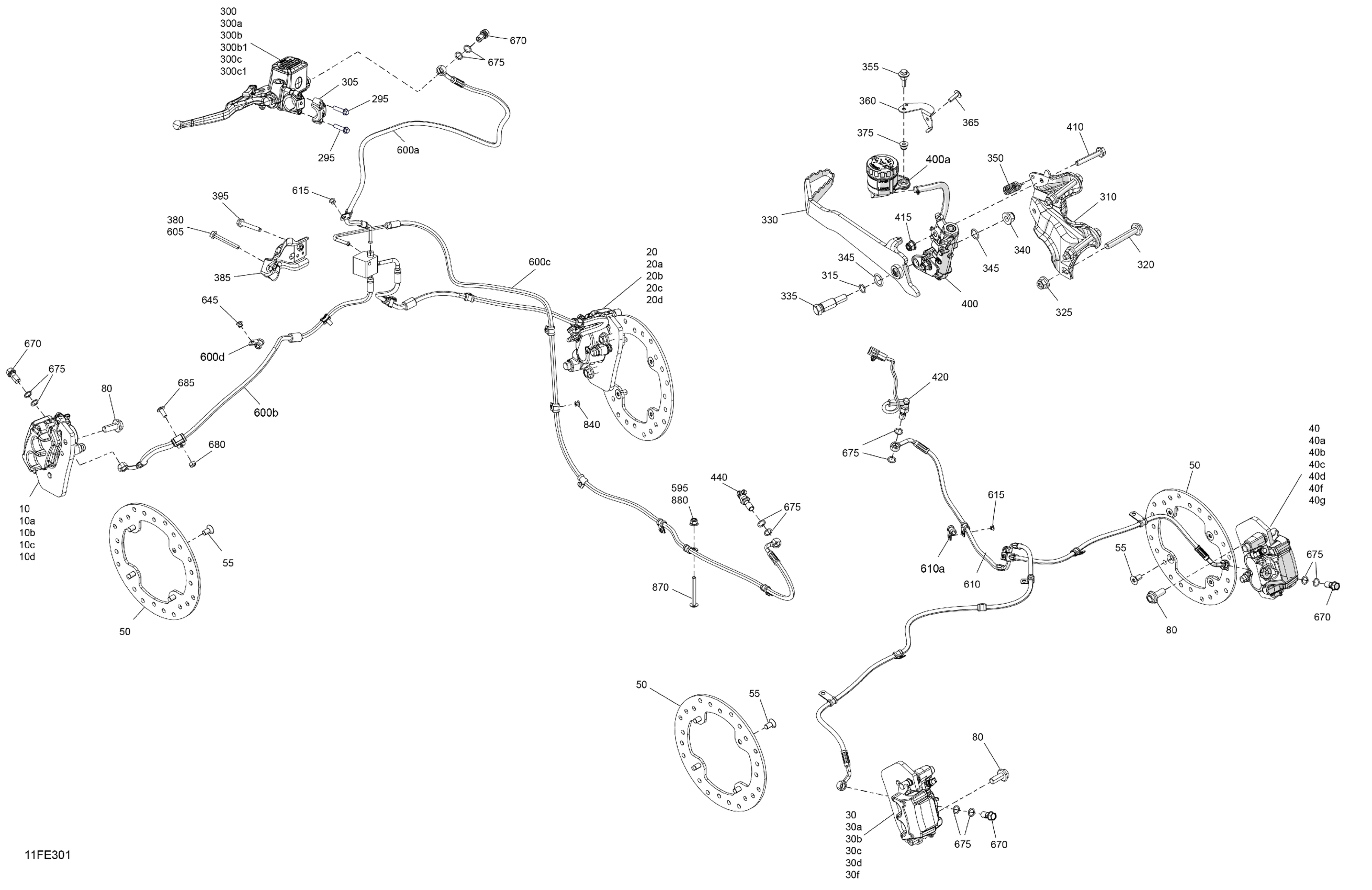

Can-Am CE - OUT-MAX - 4X4 - DPS - 1000R - 4RSA - Granite Grey - 2025 Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10d

705601808

$270.49

10a

LH Pad Brake

705602070

$79.49

10b

Pin Set

705601016

$9.26

10c

Bleeding Screw

705601017

$6.35

10d

Retaining Spring

705601018

$7.55

20

RH Front Brake Caliper | Includes 20 to 20d

705601809

$270.49

20a

PAD_BRAKE R - Call your local BRP dealership

705602071

$82.47

20b

Pin Set

705601016

$9.26

20c

Bleeding Screw

705601017

$6.35

20d

Retaining Spring

705601018

$7.55

30

LH Rear Brake Caliper | Includes 30 to 30f

705601810

$307.49

30a

LH Pad Brake

705602070

$79.49

30b

Pin Set

705601016

$9.26

30c

Bleeding Screw

705601017

$6.35

30d

Retaining Spring

705601018

$7.55

30f

LH Pad Brake

705602070

$79.49

40

RH Rear Brake Caliper | Includes 40 to 40d

705601811

$312.49

40a

PAD_BRAKE R - Call your local BRP dealership

705602071

$82.47

40b

Pin Set

705601016

$9.26

40c

Bleeding Screw

705601017

$6.35

40d

Retaining Spring

705601018

$7.55

40f

PAD_BRAKE R - Call your local BRP dealership

705602071

$82.47

40g

RH Pads Kit

705602168

$52.99

50

Disc Brake

705601997

$67.99

55

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

80

Hex. Flange Screw M10 X 25

207502546

$2.11

295

Hex Flange Screw M6 X 25

229000711

$2.11

300

LH Front Brake Master Cylinder | Includes 300 to 300c1

705602120

$244.99

300a

Master Cylinder Lever

705602252

$52.99

300b

Clamp And Screw Kit

507032477

$23.99

300b1

Hex. Flange Screw M6 X 25

250000447

$2.11

300c

Cap Set

219800096

$21.99

300c1

Screw M4 X 20

415129356

$2.22

305

Clamp And Screw Kit

507032477

$23.99

310

Master Cylinder Support

705207200

$32.99

315

O-Ring Seal

293300286

$3.82

320

Hex. Flange Screw M10 X 70

207607046

$2.96

325

Hex. Flange Elastic Nut M10

233201436

$2.11

330

Brake Pedal

705602192

$64.99

335

Shoulder Screw M10

250001311

$6.77

340

Hex. Flange Elastic Nut M10

233201436

$2.11

345

O-Ring Seal

293300285

$3.82

350

Brake Pedal Spring

705600792

$9.10

355

Oil Tank Screw

705602073

$31.99

360

Oil Tank Support

705208962

$32.99

365

Torx Screw M6 X 20

250000722

$1.68

375

Hex. Flange Elastic Nut M6

233261466

$2.00

380

Hex. Flange Screw M6 X 45

207664544

$1.46

385

Hose Support

705602234

$7.19

395

Hex. Flange Screw M6 X 40

207664044

$2.22

400

Rear Brake Master Cylinder Ass'y | Includes 400 to 400a

705602296

$244.99

400a

Brake Fluid Reservoir

705602138

$244.99

410

Hex. Flange Screw M8 X 50

207685044

$1.69

415

Hex. Flange Elastic Nut M8

233281414

$1.47

420

Brake Switch

705601250

$59.49

440

Bleeding Screw

705601051

$12.16

595

Hex. Flange Elastic Nut M6

233261466

$2.00

600a

LH Front Master Cylinder Hose

705602271

$201.49

600b

Brake Hose

705602272

$232.99

600c

Brake Hose

705602273

$232.99

600d

Clamp

293650256

$5.49

605

Hex. Flange Screw M6 X 45

207664544

$1.46

610

Rear Caliper Hose | Includes 610 to 610a

705602002

Unavailable

610a

Clamp

293650256

$5.49

615

Pop Rivet 3/16 X ,425

293150293

$0.35

645

Pop Rivet 3/16 X ,425

293150293

$0.35

670

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

675

Washer

414920600

$1.90

680

Elastic Stop Nut M6

232561434

$1.99

685

Torx Truss M6X14

250000789

$5.39

840

Pop Rivet 3/16 X ,425

293150293

$0.35

870

Torx Screw M6 X 50

250000317

$2.11

880

Hex. Flange Elastic Nut M6

233261466

$2.00
