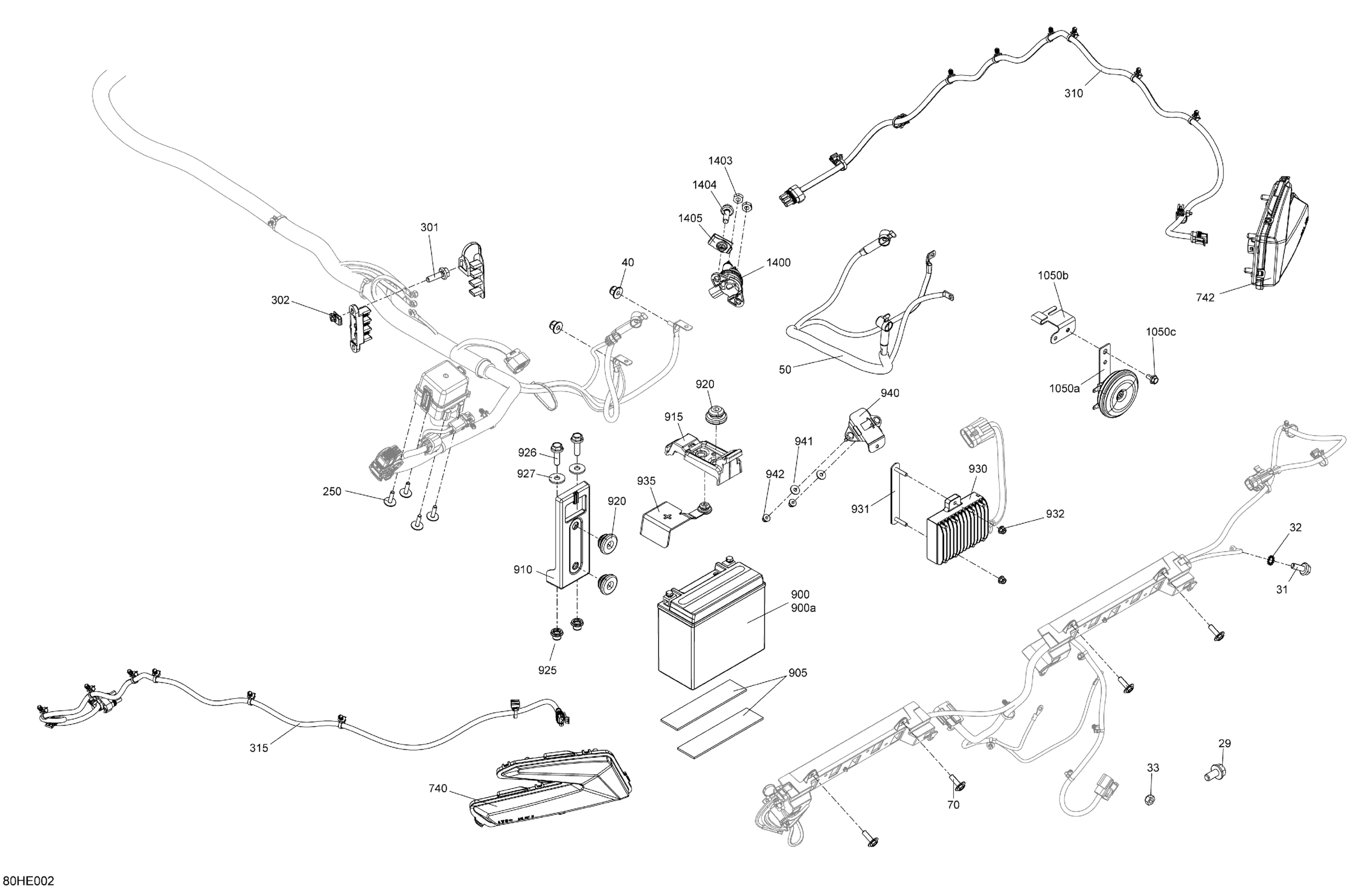

Can-Am CE - Maverick - TURBO RR - XRS STD - 7TSN - Timeless Black Metallic - 72" Width - 2025 Electric - Rear Section Diagram

Description

Price

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

External Serrated Lock Washer 6 mm

234461608

$1.15

Elastic Stop Nut M6, Brass

232561200

$4.23

Elastic Stop Nut M6, Brass

232561200

$4.23

Starter Wiring Harness

710007440

$77.99

Screw PT Type K-50 X 16

250000959

$2.11

250

Screw M4 X 16

250000725

$3.49

301

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

302

Panel Nut M6 X 1.0

250100198

$2.11

310

Rear Wiring Harness

710006424

$27.99

315

LH Rear Wiring Harness

710006808

$119.99

740

LH Tail Light

710004743

$134.99

742

RH Tail Light

710004744

$134.99

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

901

Washer | Not Shown

710009082

$1.29

903

Screw | Not Shown

710009084

$1.59

905

Rubber Pad

293830126

$13.76

910

Fixation Plate

710004788

$11.49

915

Battery Support

710009128

$8.99

920

Stopper Rubber

705014429

$5.95

925

Insert Half Hex Body M6 x 1.0

250100199

$3.19

926

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

927

Flat Washer 6 mm

234062410

$0.77

930

Voltage Regulator

710006824

$222.49

931

Voltage Regulator Support

710009505

$11.49

932

Hex. Flange Elastic Nut M6

233261494

$1.58

935

Battery Cable Cap

710006471

$2.59

940

Cable Support

710009507

$10.99

941

Stainless Steel Flat Washer

234062670

$2.11

942

Hex. Flange Elastic Nut M6

233261494

$1.58

1050a

Horn

710004791

$38.99

1050b

Back Up Alarm Support

710009498

Unavailable

1050c

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

1400

Starter Relay

278003012

$42.49

1403

Elastic Stop Nut M6, Brass

232561200

$4.23

1404

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1405

Panel Nut M6 X 1.0

250100198

$2.11
