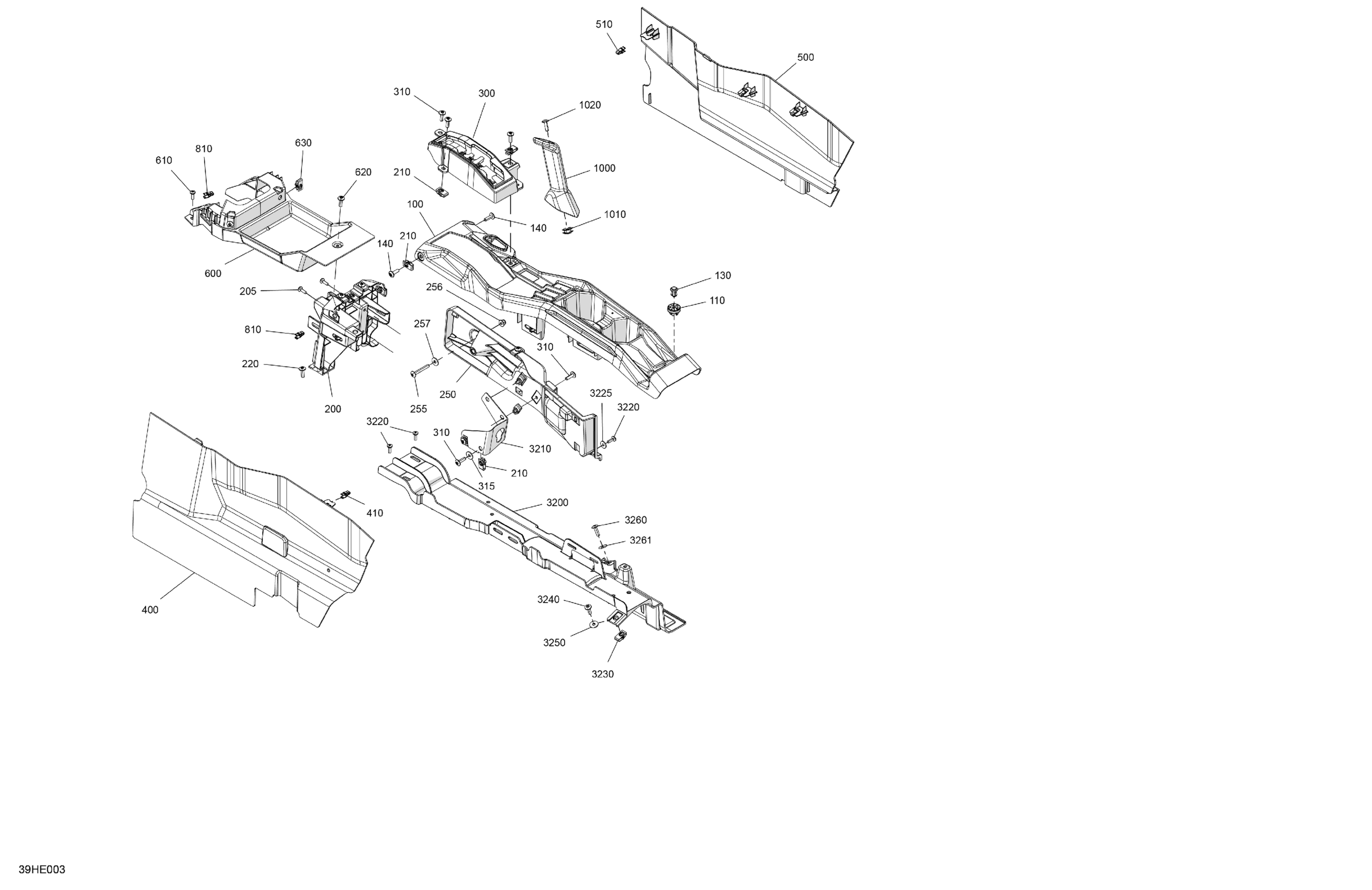

Can-Am CE - Maverick - TURBO RR - XRS STD - 7TSN - Timeless Black Metallic - 72" Width - 2025 Cab Interior - Center Console Diagram

Description

Price

100

Front Console Ass'y

715006656

$36.54

110

Insert

707900133

$2.89

130

Tuflok Plastic Rivet

293150230

$1.39

140

Torx Screw M6 X 20

250000722

$1.54

200

Front Central Console Support

707900459

$58.93

205

Torx Screw K50 X 16

250000720

$1.60

210

Panel Nut M6 X 1.0

250100198

$1.99

220

Torx Screw M6 X 20

250000722

$1.54

250

Shifter Gate Support

707900488

$23.85

255

Torx Screw M6 X 45

250000647

$5.46

256

Hex. Flange Elastic Nut M6

233261466

$1.91

257

Stainless Steel Flat Washer

234062670

$2.00

300

Shift Lever Grille

707901117

$22.36

310

Torx Screw M6 X 20

250000722

$1.54

315

Stainless Steel Flat Washer

234062670

$2.00

400

LH Lateral Dash Panel

707900396

$66.39

410

Clip

705010721

$2.03

500

RH Lateral Dash Panel

707900397

$66.39

510

Clip

705010721

$2.03

600

Front Upper Console

707901120

$21.61

610

Torx Screw K50 X 16

250000720

$1.60

620

Torx Screw M6 X 20

250000722

$1.54

630

Panel Nut M6 X 1.0

250100198

$1.99

810

Clip

705010721

$2.03

1000

Passenger Handle

707900011

$12.43

1010

Connector Tube

707900048

$5.52

1020

Torx Screw M6 X 20

250000722

$1.54

3200

Central Support Hose

707900710

$44.75

3210

Cable Support

707901207

Unavailable

3220

Torx Screw K50 X 16

250000720

$1.60

3225

Washer M5

250200025

$0.70

3230

Panel Nut M6 X 1.0

250100198

$1.99

3240

Torx Screw M6 X 20

250000722

$1.54

3250

Stainless Steel Flat Washer

234062670

$2.00

3260

Torx Screw M6 X 20

250000722

$1.54

3261

Stainless Steel Flat Washer

234062670

$2.00
