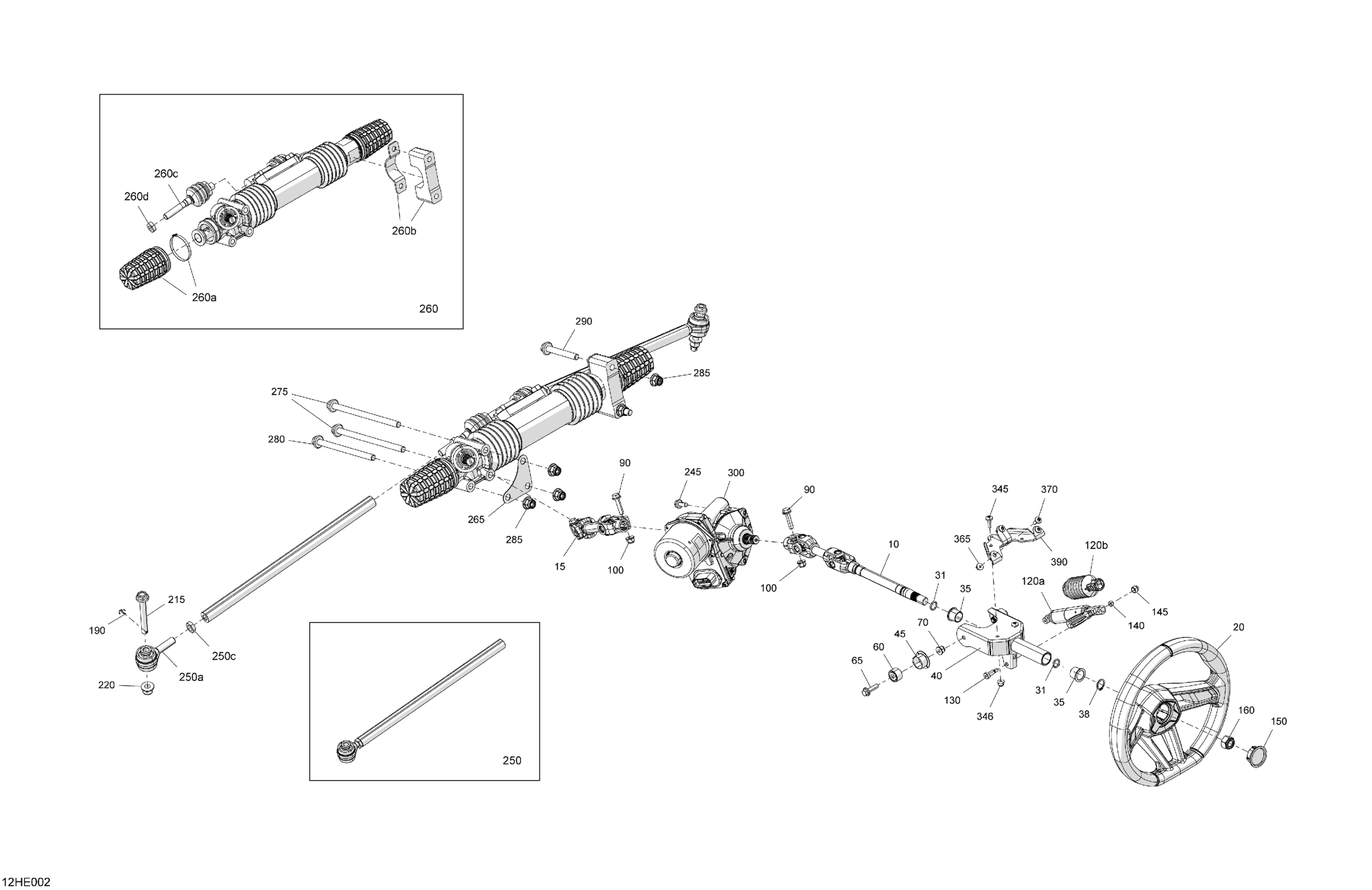

Can-Am CE - Maverick - TURBO RR - XRS STD - 7TSN - Timeless Black Metallic - 72" Width - 2025 Mechanic - Steering Diagram

Description

Price

Steering Column Ass'y

709403021

$189.99

Lower Steering Axle Ass'y

709403022

$189.99

Steering Wheel

709401706

$529.99

O-Ring

293300144

$3.82

Steering Bushing

709402725

$3.28

Circlip

293370110

$2.61

Steering Support

709401602

$83.99

Bushing

709401603

$8.85

Bushing

709401604

$5.89

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 35

250001021

$4.44

100

Hex. Elastic Flange Nut M8

233281416

$1.48

120a

Adjustment Cylinder

709402506

$72.99

120b

Boot Tube Side

709401232

$18.99

130

Socket Head Screw M8 X 16

250000669

$3.17

140

Elastic Stop Nut M6

232561434

$1.99

145

Cap

269500806

$2.89

150

Steering Cap

709401514

$19.49

160

Elastic Lock Nut M16

232511414

$2.00

190

Cotter Pin

211400017

$0.33

215

Hex Cap Screw M12 X 95

250000864

$4.76

220

Elastic Flange Nut M12

233221416

$2.85

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

250

Tie Rod Ass'y | Includes 250 to 250c

709401739

$116.49

250a

Ball Joint

709401703

$36.99

250c

Hex. Jam Nut M14

232170411

$1.48

260

Rack & Pinion Steering Ass'y | Includes 260 to 260d

709402180

$466.49

260a

Kit Rack And Pinion End

703500958

$14.49

260b

Mounting Bracket Kit

703500959

$22.49

260c

Tie Rod end

715900488

$42.49

260d

Steering Rod Nut

715900238

$2.30

265

Plate

709402975

$2.69

275

Screw Hex Cap M12 X 190

250000863

$6.67

280

Screw Hex Cap M12 X 160

250000875

$6.77

285

Elastic Flange Nut M12

250001195

$2.64

290

Flange Screw M12 X 85

250000859

$4.76

300

Power Steering Ass'y

709403006

$2,119.99

345

Torx Screw M6 X 20

250000712

$2.11

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

365

Hex. Elastic Flange Nut M6

233161464

$1.01

370

Torx Truss Screw M6 X 16

250000721

$1.69

390

Cluster Meter Support

707900737

$16.49
