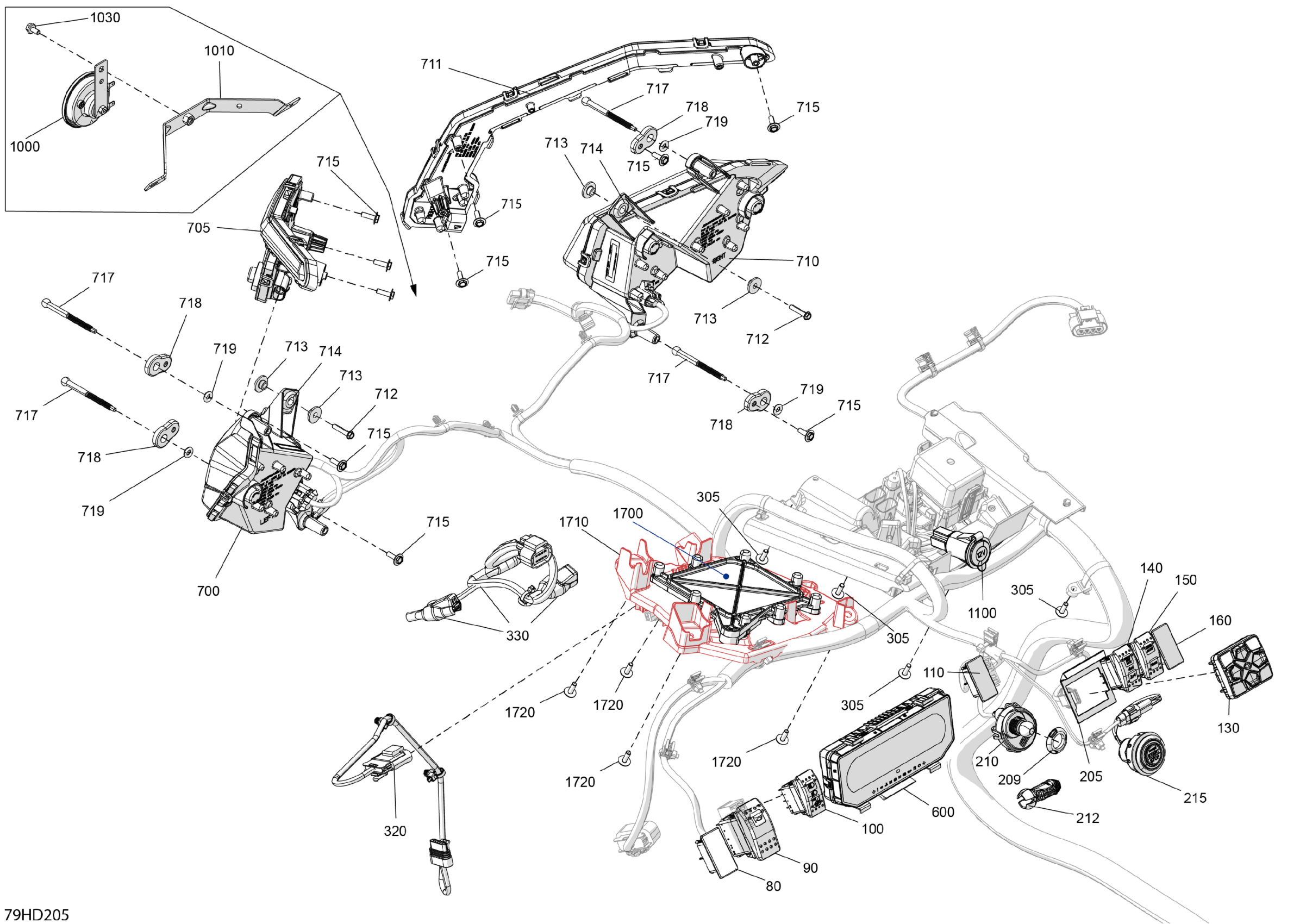

Can-Am CE - Maverick Turbo RR - XRS STD - 7TRN - Timeless Black Metallic - 72" Width, 2024 Electric - Front Section Diagram

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Horn Switch

710006788

$23.05

Headlights Switch

710007022

$69.20

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Switch Multifunction

710006059

$87.66

Differential Switch

710006040

$32.28

Differential Mode Switch

710006557

$32.28

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Rubber Stopper

707900778

$3.98

Specialized Nut

278004274

$2.72

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

Start-Stop Button | Not Shown

710005213

$59.97

Screw PT Type K-50 X 16

250000959

$1.74

Cable Throttle Pedal

710005291

$226.12

Front Differential Wiring Harness

710006807

$46.12

Multifunction Gauge Mid

710008297

$355.35

LH Front Auxiliary LED Light

710008811

$441.74

LH Signature Beam

710004994

$161.51

RH Front Auxiliary LED Light

710008812

$432.24

RH Signature Beam

710004995

$161.51

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

Shoulder Bushing

710004749

$2.75

Overmolded Grommet

293720130

$4.38

Screw PT Type K-50 X 16

250000959

$1.74

Ajustment Screw

710005837

$6.45

Ball Socket

293900157

$8.45

O-Ring

293300192

$3.85

Horn

710004791

$37.66

Horn Bracket

710006573

$11.15

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

12V Power Outlet

710005374

$27.27

Differential Module

710008842

$447.66

FDM Support

710005807

$6.92

Screw PT Type K-50 X 16

250000959

$1.74
