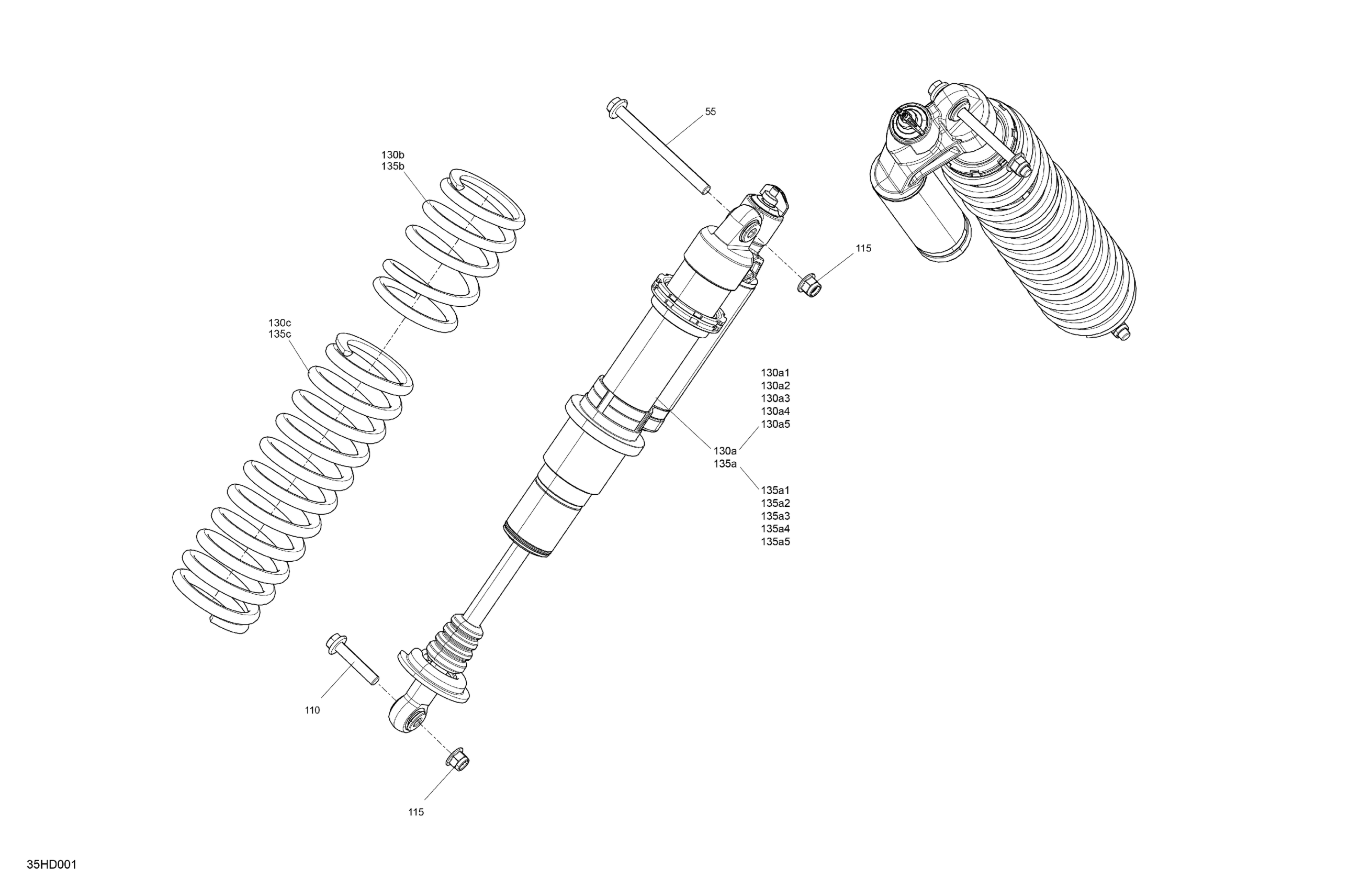

Can-Am CE - Maverick Turbo RR - XRS STD - 7TRN - Timeless Black Metallic - 72" Width, 2024 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$6.28

110

Flange Screw M12 X 60

250000857

$6.99

115

Elastic Flange Nut M12

250001195

$2.46

130a

LH Front Shock | Includes 130a to 130a5

706204044

$1,139.99

130a1

Spherical Bearing

715900337

$79.07

130a2

Ball Joint

706004078

$44.00

130a3

O-Ring Bushing

715900338

$10.55

130a4

Circlip

715900480

$10.24

130a5

Reducer

715900481

$24.60

130b

Deep Black, Compression Spring

706205339

$93.25

130c

Deep Black, Compression Spring

706205343

$162.66

135a

RH Front Shock | Includes 135a to 135a5

706204045

$1,139.99

135a1

Spherical Bearing

715900337

$79.07

135a2

Ball Joint

706004078

$44.00

135a3

O-Ring Bushing

715900338

$10.55

135a4

Circlip

715900480

$10.24

135a5

Reducer

715900481

$24.60

135b

Deep Black, Compression Spring

706205339

$93.25

135c

Deep Black, Compression Spring

706205343

$162.66
