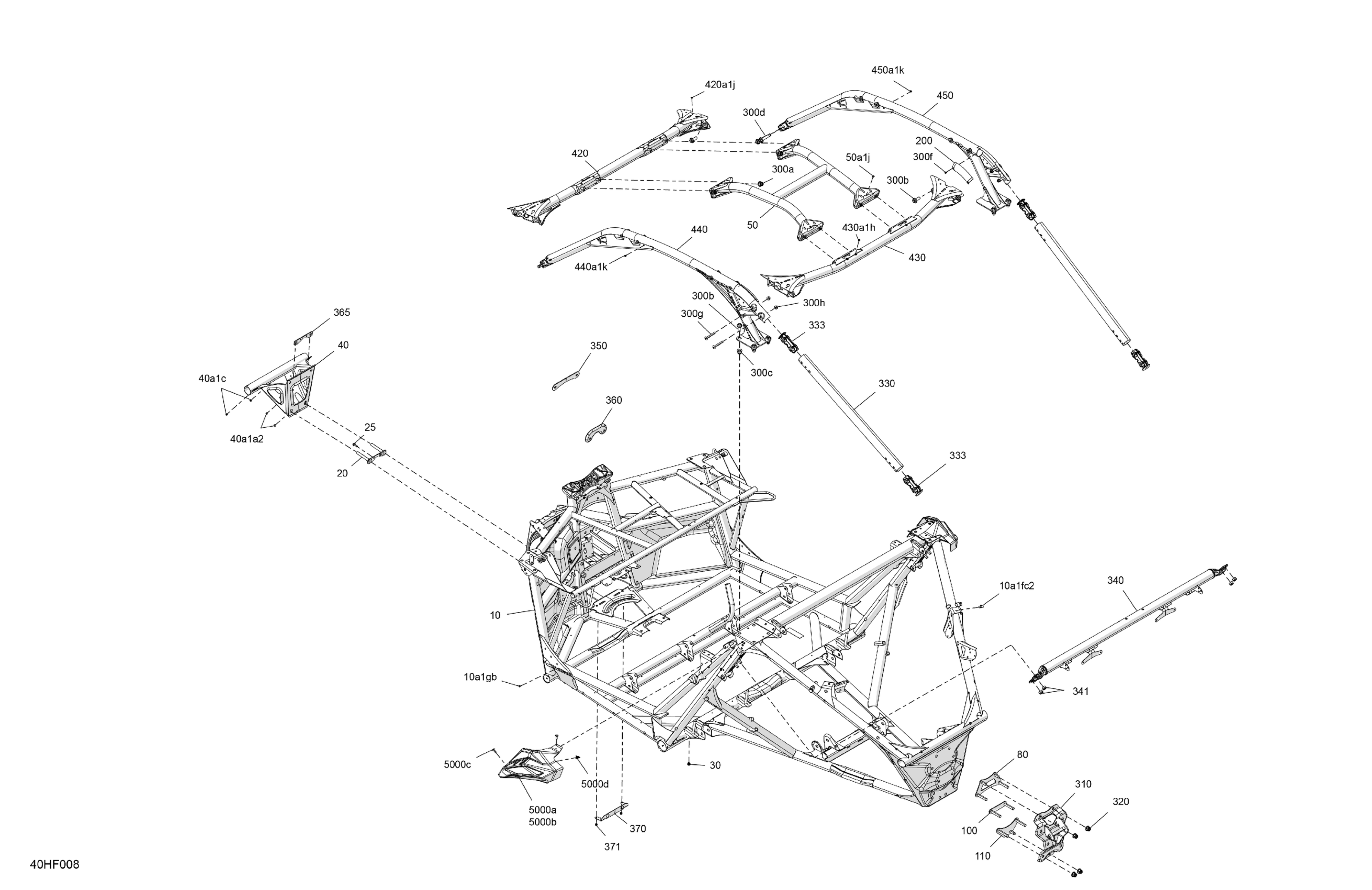

Can-Am CE - Maverick - TURBO RR - XRS SAS - 7TTS - Timeless Black Metallic - 72" Width, 2026 Frame - System Diagram

Black, Frame Ass'y

715011288

$3,359.99

Nut M6

250100059

$1.55

Pop Rivet 3/16 X ,425

293150293

$0.30

Front Plate

705211898

$17.88

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Front Bumper Ass'y

715008516

$233.55

Pop Rivet 3/16 X ,425

293150293

$0.30

Pop Rivet 3/16 X ,425

293150293

$0.30

Deep Black, Reinforcement Cage | Includes 50 to 50a1j

705210064

$91.99

Pop Rivet 3/16 X ,425

293150293

$0.30

Rear Upper Plate

705211557

$17.13

Rear Central Plate

705211558

$17.13

Rear Lower Plate

705211556

$16.39

Deep Black, Upper Plate Kit

705211599

$23.10

Junction Plate Ass'y

715008517

$69.37

Elastic Flange Nut M12

250001195

$2.46

Deep Black, Rear Pillar

705210066

$24.99

Sleeve

705210648

$8.42

Safety Belt Anchorage

705212141

$112.66

Elastic Stop Nut M12

232521416

$1.61

Connecting Plate

705211552

$4.81

Retaining Plate

705210249

$4.72

Front Plate

705211553

$2.69

Support

705211560

$10.67

Pop Rivet 3/16 X ,425

293150293

$0.30

Deep Black, Front Cross Member | Includes 420 to 420a1j

705210068

$194.74

Pop Rivet 3/16 X ,425

293150293

$0.30

Deep Black, Rear Cross Member | Includes 430 to 430a1h

705210070

$204.99

Pop Rivet 3/16 X ,425

293150293

$0.30

Black, LH Cage Ass'y

715011260

$399.99

Pop Rivet 3/16 X ,425

293150293

$0.30

Black, RH Cage Ass'y

715008500

$399.99

Pop Rivet 3/16 X ,425

293150293

$0.30

Elastic Flange Nut M12

250001195

$2.46

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

Elastic Flange Nut M12

250001195

$2.46

Flange Screw M12 X 60

250000857

$6.99

Black, Pop Rivet 3/16 X ,425

293150300

$0.69

Torx Truss M8 X 65

250000901

$1.79

Elastic Flange Nut M8

250100025

$1.43

LH Rear Cage Trim

705010335

$32.06

RH Rear Cage Trim

705010336

$32.06

Torx Screw M6 X 20

250000722

$1.54

Clip

293650268

$0.66
