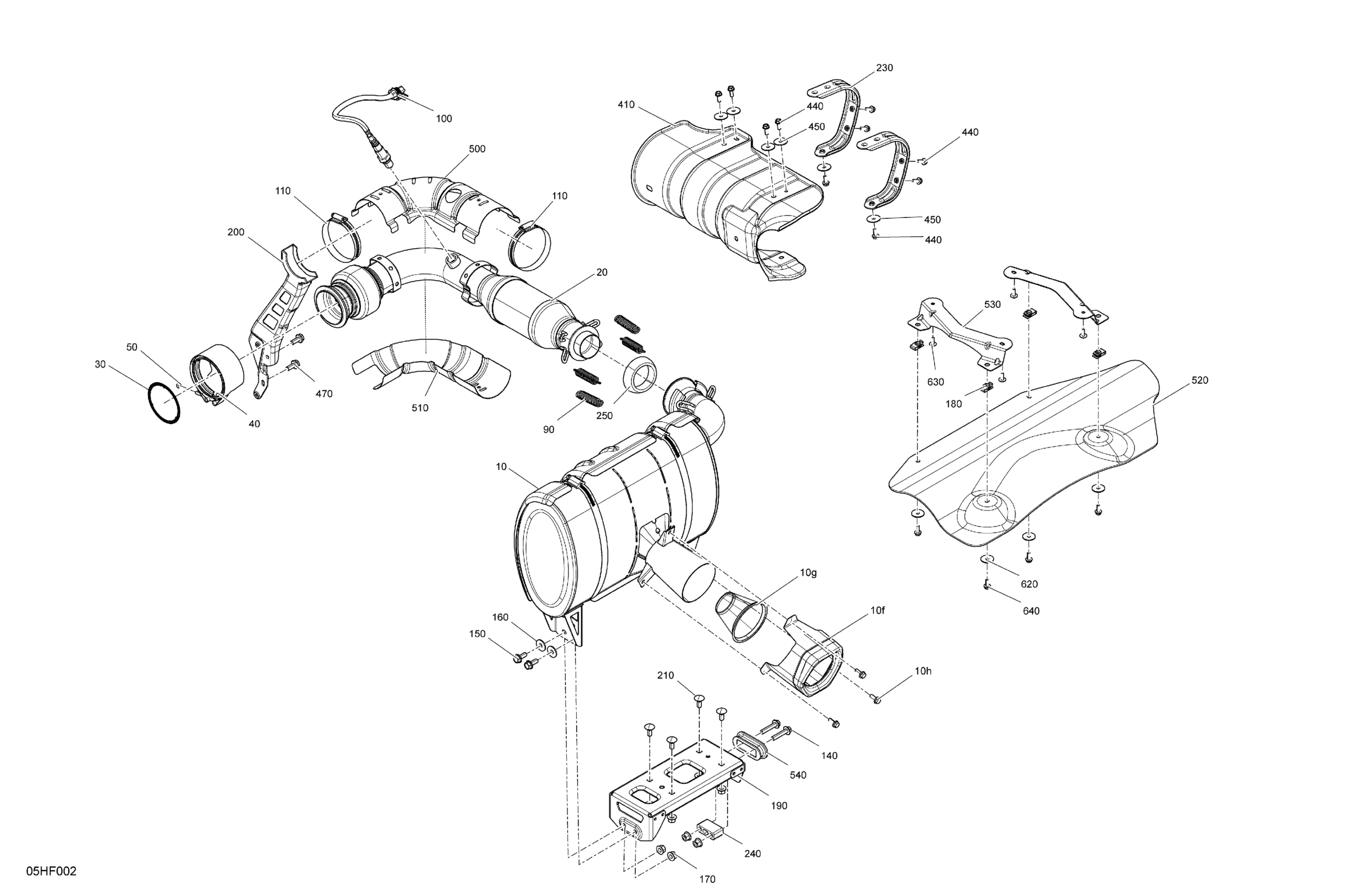

Can-Am CE - Maverick - TURBO RR - XRS SAS - 7TTS - Timeless Black Metallic - 72" Width, 2026 Engine - Exhaust Diagram

Description

Price

Exhaust Muffler Ass'y | Includes 10 to 10h

707602827

$775.35

10f

Heat Shield | Includes 10f to 10f2

707602046

$32.28

10g

Spark Arrestor | Not Shown

707602087

$36.89

10h

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Exhaust Pipe | Includes 20 to 20m

707603725

$1,015.35

Seal

707601835

$36.89

Exhaust Clamp

707603418

$50.74

Nut

707602143

$6.45

Spring

707601834

$6.20

100

Oxygen Sensor

707600872

$115.67

110

Norma Clamp

514052924

$10.58

140

Hex. Flange Screw M8 X 40

207684044

$1.25

150

Hex. Flange Screw M8 X 20

207682046

$1.82

160

Flat Washer 8 mm

234082410

$1.11

170

Hex. Flange Nut M8

233081416

$1.63

180

Panel Nut M6 X 1.0

250100198

$1.73

190

Exhaust Support

707603756

$27.66

200

Exhaust Mount | Includes 200 to 200c

707602815

$27.66

210

Carriage Bolt, M8 X 20

207782044

$1.56

230

Heat Shield Support

707603882

$27.66

240

Muffler Stopper

707603214

$12.91

250

Gasket

707601908

$23.05

410

Lateral Heat Shield

707601768

$23.05

440

Hex. Flange Screw M6 X 12

210261250

$1.56

450

Washer | Not Shown

503193995

$4.38

470

Hex Screw Washer Head M8 X 20

207582054

$2.61

500

Upper Heat Shield

707601795

$27.66

510

Lower Heat Shield

707601796

$27.66

520

Heat Shield

707602771

$110.74

530

Heat Sheild Support | Includes 530 to 530a

707603657

$6.45

540

Vibration Damper

707603488

$16.89

620

Washer

224060251

$0.57

630

Screw PT Type K-50 X 16

250000959

$1.74

640

Hex. Flange Screw M6 X 16

210261650

$1.22
