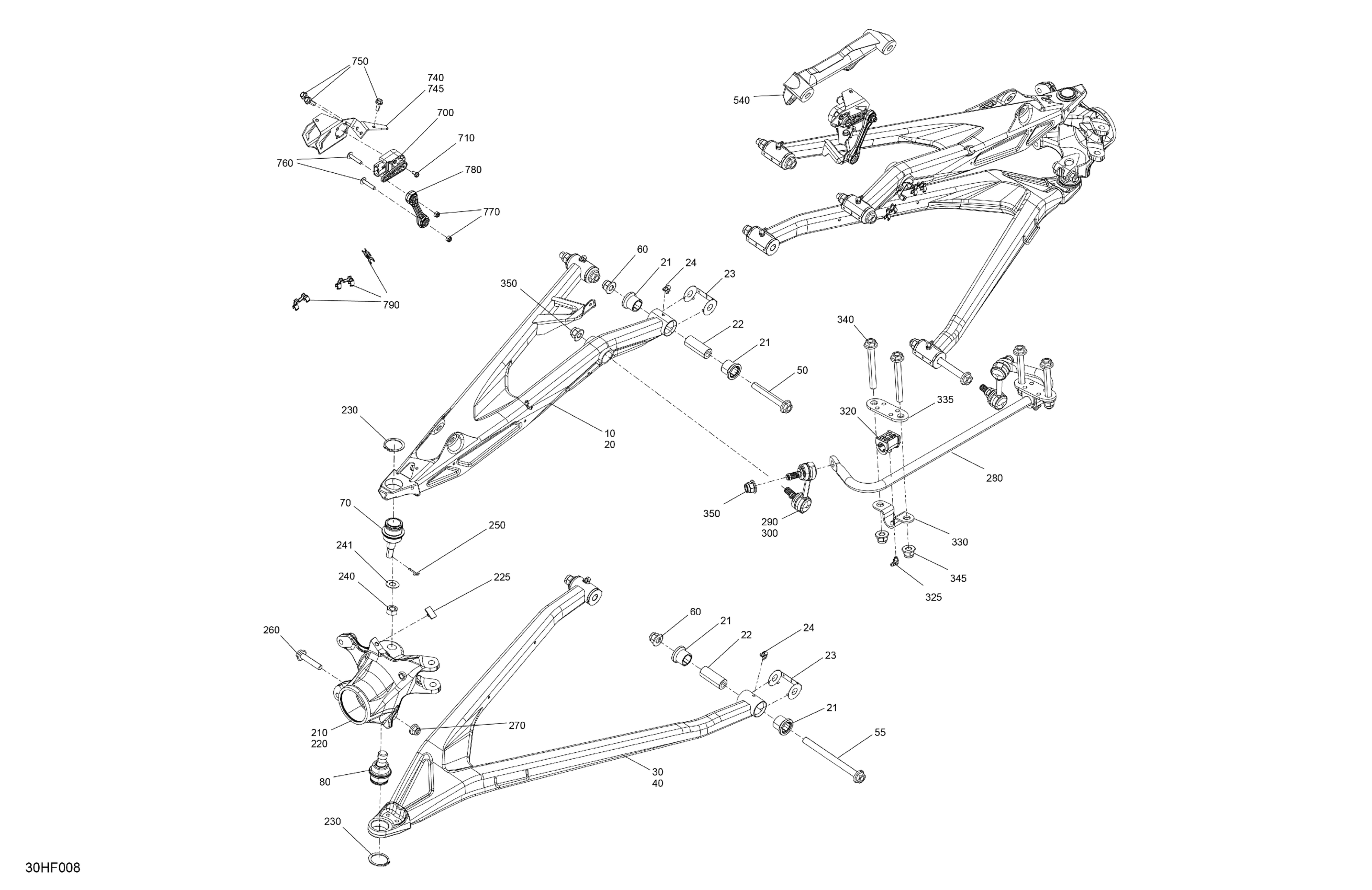

Can-Am CE - Maverick - TURBO RR - XRS SAS - 7TTH - Dusty Navy Satin - 72" Width, 2026 Suspension - Front Components Diagram

Deep Black, LH Upper Suspension Arm

706203685

$222.49

Deep Black, RH Upper Suspension Arm

706203686

$222.49

Deep Black, RH Rear Suspension Arm

706206653

$9.10

Interior Bushing

706202257

$9.79

Wear Plate

706202300

$2.29

Grease Elbow Fitting

293550085

$1.15

Legion Red, LH Lower Suspension Arm Ass'y With Balljoint This part replaces 706205677.

715010639

$222.49

Legion Red, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706205678.

715010646

$294.99

Flange Screw M12 X 85

250000859

$4.76

Flange Screw M12 X 145

250000861

$6.67

Elastic Flange Nut M12

250001195

$2.64

Ball Joint With Circlip Pin Kit

703501263

$38.99

Ball Joint Kit With Circlip

703501262

$38.99

LH Front Knuckle

706204785

$201.49

RH Front Knuckle

706204786

$148.49

Wear Plate

706202502

$2.29

Circlip

293370035

$2.64

Hex Nut M12

250100239

$2.00

Hardened Washer

706200281

$2.85

Cotter Pin

211400017

$0.33

Hex.Flange Screw Din.6921

207605046

$4.76

Hex. Flange Elastic Nut M10

233201436

$2.11

Stabilizer Bar Ass'y

706203953

$98.49

LH Stabilizer Bar Link

706203611

$72.99

RH Stabilizer Bar Link

706203612

$72.99

Stabilizer Bar Bushing

706204564

$3.61

Grease Elbow Fitting

293550085

$1.15

Mounting Clamp

706205649

$6.89

Support Plate

706202551

$5.09

Hex. Flange Screw M12 X 95

250000876

$6.77

Elastic Flange Nut M12

250001195

$2.64

Elastic Flange Nut M12

250001195

$2.64

Black, Link

706202708

$55.99

Position Sensor

710009195

$69.99

Hex. Flange Screw M5x10

207551056

$1.99

LH Front Sensor Support

705211588

$38.99

RH Front Sensor Support

705211589

$38.99

Hex. Flange Screw M6 X 16

207661654

$2.11

Stainless, Torx Screw M6 X 30

250000842

$2.11

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.58

Link

706203429

$19.99

Hose Support

706205606

$1.39
