Partiron

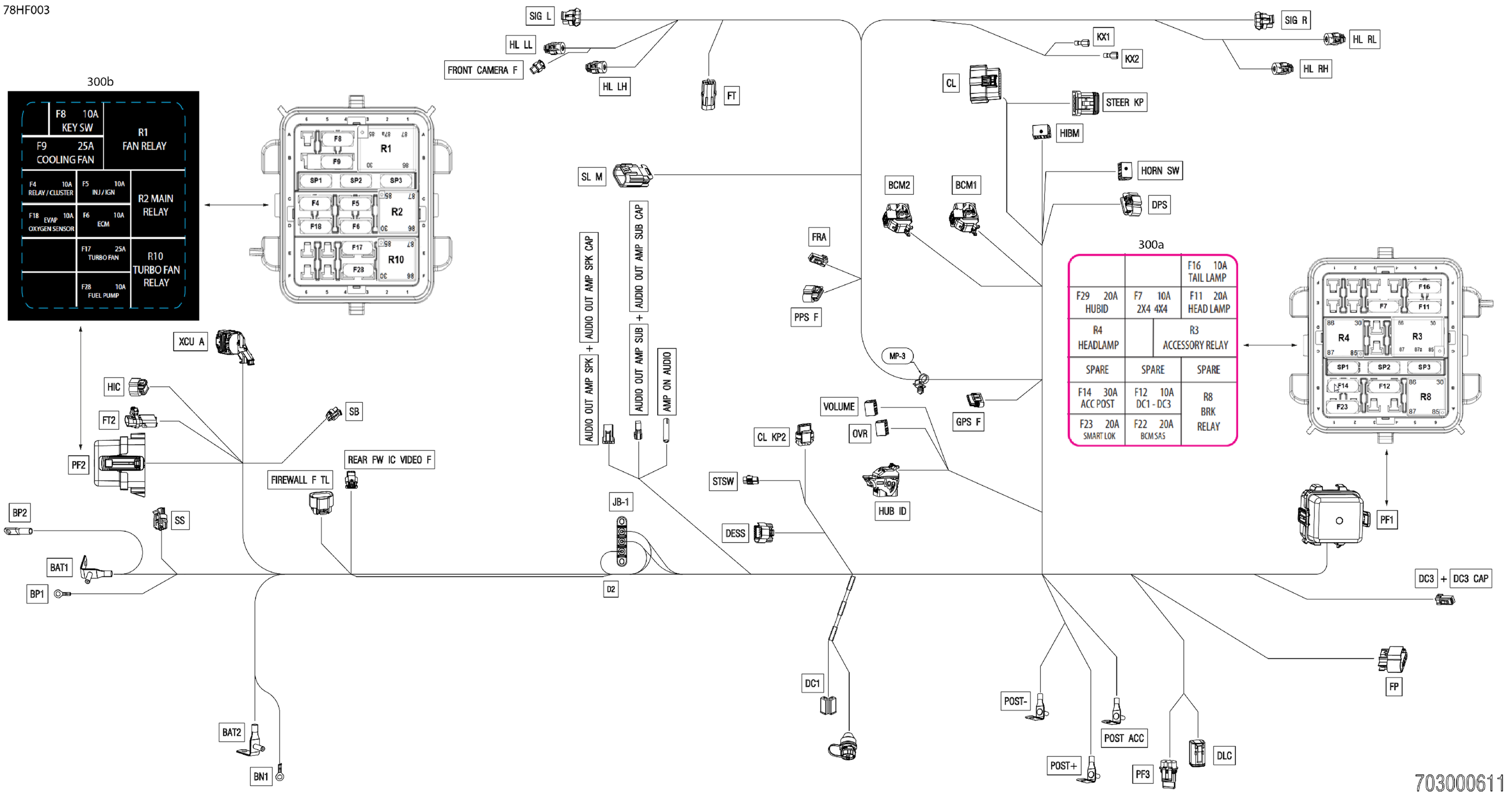

Can-Am CE - Maverick - TURBO RR - RS - 7KTD - Loft Green Satin - 72" Width, 2026 Electric - Main Harness - 710010754 Diagram

#

Description
Price

300

Main Wiring Harness

710010754

$1.00

300a

Decal Fuses

710010765

$0.01

300b

Fuses Decal

710007297

$11.99

300c

USB Wiring Harness

710007479

$76.99

300d

Fuse Holder Support

710006339

$18.99

AMP ON AUDIO

Insulated Sheath

278000770

$7.90

AMP ON AUDIO

Cap

710006310

$1.09

AMP ON AUDIO

Female Terminal

710000421

$6.11

AUDIO OUT AMP SPK

Connector_JST Female 8 Cavities

710007945

$17.59

AUDIO OUT AMP SPK

Female Terminal

515177185

$9.27

AUDIO OUT AMP SUB

Housing

515177179

$13.70

AUDIO OUT AMP SUB

Female Terminal

515177185

$9.27

AUDIO OUT AMP SUB CAP

Housing

515177178

$15.28

BCM1 LT

Seal Joint

710007620

$6.67

BCM1 LT

Seal Joint

710007619

$6.67

BCM1 LT

Femal Terminal

710007658

$5.93

BCM1 LT

Femal Terminal

710007623

$2.39

BCM1 MT

Plug

710001593

$2.21

BCM1 MT

Female Terminal

710001727

$3.19

BCM1 ST

Cover, 48 positions

710001591

$12.18

BCM1 ST

Front PT Housing

710007627

$23.99

BCM1 ST

Plug

710001592

$2.21

BCM1 ST

Terminal

710001728

$6.79

BCM1 ST

Terminal_Molex Female

710009464

$2.09

BN1

Open Barrel Terminal

278001392

$4.79

BP1

Shrink Tubing, 6 mm

515177246

$1.04

BP1

Open Barrel

278000992

$2.21

CL

Female Molex Connector 20 Cavities

515179227

$16.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal 22 AWG

515178349

$2.29

CL

Female Terminal

515178018

$1.19

CL KP2

Female Terminal Housing 3 Circuits

278002387

$8.79

CL KP2

Lock

710005868

$3.49

CL KP2

Wire Seal

710001163

$7.69

CL KP2

Female Terminal

710001164

$8.89

D2

Diode

409012700

$11.12

DC1

Housing

710005373

$5.29

DC1

Terminal

710005518

$1.49

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3 CAP

Male Housing, 2 Circuits

710000667

$8.32

DESS

Female Delphi Connector 5 Cavities

710007151

$17.04

DESS

Lock

710007243

$4.39

DESS

Wire Seal

710001163

$7.69

DESS

Female Terminal

710001164

$8.89

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Female Terminal

710005439

$4.44

DLC

Female Terminal

710005438

$4.29

DPS

Female Housing

710004989

$7.41

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

FIREWALL F TL

Housing

710001951

$12.71

FIREWALL F TL

Lock

710001222

$2.09

FIREWALL F TL

Lock

710006361

$0.82

FIREWALL F TL

Cap

710001225

$9.19

FIREWALL F TL

Seal

710001233

$3.19

FIREWALL F TL

Terminal

710001229

$3.19

FL-1

Fuse Link

710004228

Unavailable

FL-2

Fuse Link

710004228

Unavailable

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Lock

710001222

$2.09

FP

Lock

710006214

$0.82

FP

Seal

710003153

$0.99

FP

Terminal

710001869

$2.85

FP

Terminal

710001873

$2.09

FRA

Female Housing, 2 Circuits

515175658

$16.18

FRA

Female Terminal

515175231

$4.39

FRONT CAMERA F

Connector_TYCO Female 3 Cavities

710008501

$16.49

FRONT CAMERA F

Wire Seal

710001118

$1.16

FRONT CAMERA F

Female Terminal

710005876

$1.67

FRONT CAMERA F

Terminal Tyco Female

710008740

$9.69

FT

Clip

710000992

$4.29

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

FT2

Female Housing, 2 Circuits

278000217

$9.59

FT2

Wire Seal

278000218

$4.39

FT2

Male Terminal

409004300

$5.61

GPS F

Female Housing

710005295

$32.99

GPS F

Plug

515175812

$2.19

GPS F

Female Terminal

710001119

$5.39

HIBM

Housing

710002000

$7.90

HIBM

Terminal

710003047

$3.49

HIBM

Female Terminal

710005491

$2.09

HIC

Housing

710001928

$16.86

HIC

Lock

710001222

$2.09

HIC

Lock

710006181

$3.19

HIC

Cap

710001225

$9.19

HIC

Seal

710001233

$3.19

HIC

Seal Wire

710001332

$3.28

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HL LH

Housing

710007660

$7.94

HL LH

Lock

710011208

$9.99

HL LH

Wire Seal

710001163

$7.69

HL LH

Female Terminal

710001164

$8.89

HL LL

Female Housing, 2 Circuits

515177192

$9.12

HL LL

Lock

710011208

$9.99

HL LL

Wire Seal

710001163

$7.69

HL LL

Female Terminal

710001164

$8.89

HL RH

Housing

710007660

$7.94

HL RH

Lock

710011208

$9.99

HL RH

Wire Seal

710001163

$7.69

HL RH

Female Terminal

710001164

$8.89

HL RL

Female Housing, 2 Circuits

515177192

$9.12

HL RL

Lock

710011208

$9.99

HL RL

Wire Seal

710001163

$7.69

HL RL

Female Terminal

710001164

$8.89

HORN SW

Housing

710002000

$7.90

HORN SW

Female Terminal

710005491

$2.09

HORN SW

Terminal

710003047

$3.49

HUB ID LT

Plug

710007617

$15.87

HUB ID LT

Seal Joint

710007620

$6.67

HUB ID LT

Seal Joint

710007619

$6.67

HUB ID LT

Femal Terminal

710007658

$5.93

HUB ID LT

Femal Terminal

710007623

$2.39

HUB ID MT

Plug

710001593

$2.21

HUB ID MT

Female Terminal

710001727

$3.19

HUB ID ST

Cover

710007650

$35.99

HUB ID ST

Female Terminal Housing 53 Circuit

710007651

$48.49

HUB ID ST

Plug

710001592

$2.21

HUB ID ST

Terminal_Molex Female

710009464

$2.09

HUB ID ST

Terminal

710001728

$6.79

JB ACC

Shrink Tubing, 6 mm

515177246

$1.04

JB ACC

Open Barrel

278000992

$2.21

JB-1

Junction Block Cover

710006610

$20.99

JB-1

Junction Bloc

710006609

Unavailable

JB-1

Elastic Stop Nut M6, Brass

232561200

$4.23

KX1

Female Terminal

409010300

$4.39

KX2

Female Terminal

409010300

$4.39

OVR

Housing

710002000

$7.90

OVR

Female Terminal

710005491

$2.09

PF1

Fuse Cover

278003553

$3.72

PF1

Decal Fuses

710010765

$0.01

PF1

Fuse Base Ass'y

278003448

$31.99

PF1

Wire Seal

278000216

$3.19

PF1

Seal

293300198

$2.39

PF1

Wire Seal

278000218

$4.39

PF1

Wire Seal

710000048

$7.69

PF1

Wire Seal

278001065

$7.69

PF1

Female Terminal

515177177

$6.49

PF1

Female Terminal

710000918

$7.69

PF1

Female Terminal

278002578

$1.04

PF1 SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF1 SP2

Little Fuse, 10 Amperes

710000744

$8.79

PF1 SP3

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F11

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F14

Little Fuse, 30 Amperes

710000747

$8.49

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F23

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F29

Fuse, 20 Amperes

409003900

$3.28

PF1-F7

Little Fuse, 10 Amperes

710000744

$8.79

PF1-R3

Relay

710009145

$17.99

PF1-R4

Relay

715900824

$21.99

PF1-R8

Relay

715900824

$21.99

PF2

Fuse Cover

278003553

$3.72

PF2

Fuses Decal

710007297

$11.99

PF2

Fuse Base Ass'y

278003448

$31.99

PF2

Wire Seal

278000216

$3.19

PF2

Seal

293300198

$2.39

PF2

Wire Seal

278000218

$4.39

PF2

Wire Seal

278001065

$7.69

PF2

Wire Seal

710000048

$7.69

PF2

Female Terminal

710000918

$7.69

PF2

Female Terminal

278002578

$1.04

PF2

Female Terminal

710000890

$4.55

PF2 SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF2 SP2

Little Fuse, 10 Amperes

710000744

$8.79

PF2 SP3

Little Fuse, 25 Ampere

278002389

$4.55

PF2-F17

Little Fuse, 25 Ampere

278002389

$4.55

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F28

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F9

Fuse, 25 Amps

710002590

$19.49

PF2-R1

Relay, 30 AMP

515176774

$21.99

PF2-R10

Relay

715900824

$21.99

PF2-R2

Relay

715900824

$21.99

PF3

Fuse Holder

278001325

$8.79

PF3

Female Terminal

710000113

$6.99

PF3-F2

Fuse

710001613

$8.79

POST ACC

Folded Terminal Eyelet

710006749

$9.95

PPS F

Housing

710001232

$14.29

PPS F

Lock

710001222

$2.09

PPS F

Seal

710001233

$3.19

PPS F

Terminal

710001229

$3.19

REAR FW IC VIDEO F

Connector_TYCO Female 3 Cavities

710008501

$16.49

REAR FW IC VIDEO F

Wire Seal

710001118

$1.16

REAR FW IC VIDEO F

Female Terminal

710005876

$1.67

REAR FW IC VIDEO F

Terminal Tyco Female

710008740

$9.69

SB

Housing

710002177

$3.19

SB

Lock

710002043

$0.90

SB

Seal

278001482

$3.19

SB

Female Terminal

710001134

$7.69

SIG L

Female Housing

710005321

$4.55

SIG L

Lock

710000642

$4.59

SIG L

Cap

710006310

$1.09

SIG L

Seal

278001482

$3.19

SIG L

Female Terminal

710001134

$7.69

SIG R

Female Housing

710005321

$4.55

SIG R

Lock

710000642

$4.59

SIG R

Cap

710006310

$1.09

SIG R

Seal

278001482

$3.19

SIG R

Female Terminal

710001134

$7.69

SL M

Housing

710001927

$8.79

SL M

Holder | XMR

710002006

$3.19

SL M

Lock

710006181

$3.19

SL M

Seal

710001233

$3.19

SL M

Terminal

710001224

$3.19

SS

Female Housing, 2 Circuits

515177192

$9.12

SS

Lock

710001152

$4.39

SS

Wire Seal

710001163

$7.69

SS

Female Terminal

710001164

$8.89

STEER KP

Female Housing

515177441

$17.59

STEER KP

Female Terminal

278002857

$0.92

STSW

Wire Seal

710000402

$4.55

STSW

Female Terminal

409012100

$4.55

VOLUME

Housing

710002000

$7.90

VOLUME

Female Terminal

710005491

$2.09

XCU A

Cover

515178602

$5.37

XCU A

Housing 56 Circuits

515178618

$24.99

XCU A

Plate

515178604

$4.59

XCU A

Plug

515178599

$3.17

XCU A

Plug

515178600

$3.17

XCU A

Plate

515178603

$4.59

XCU A

Terminal

515178596

$3.72

XCU A LT

Terminal

515178598

$3.61

XCU A LT

Terminal

515178666

$4.55
