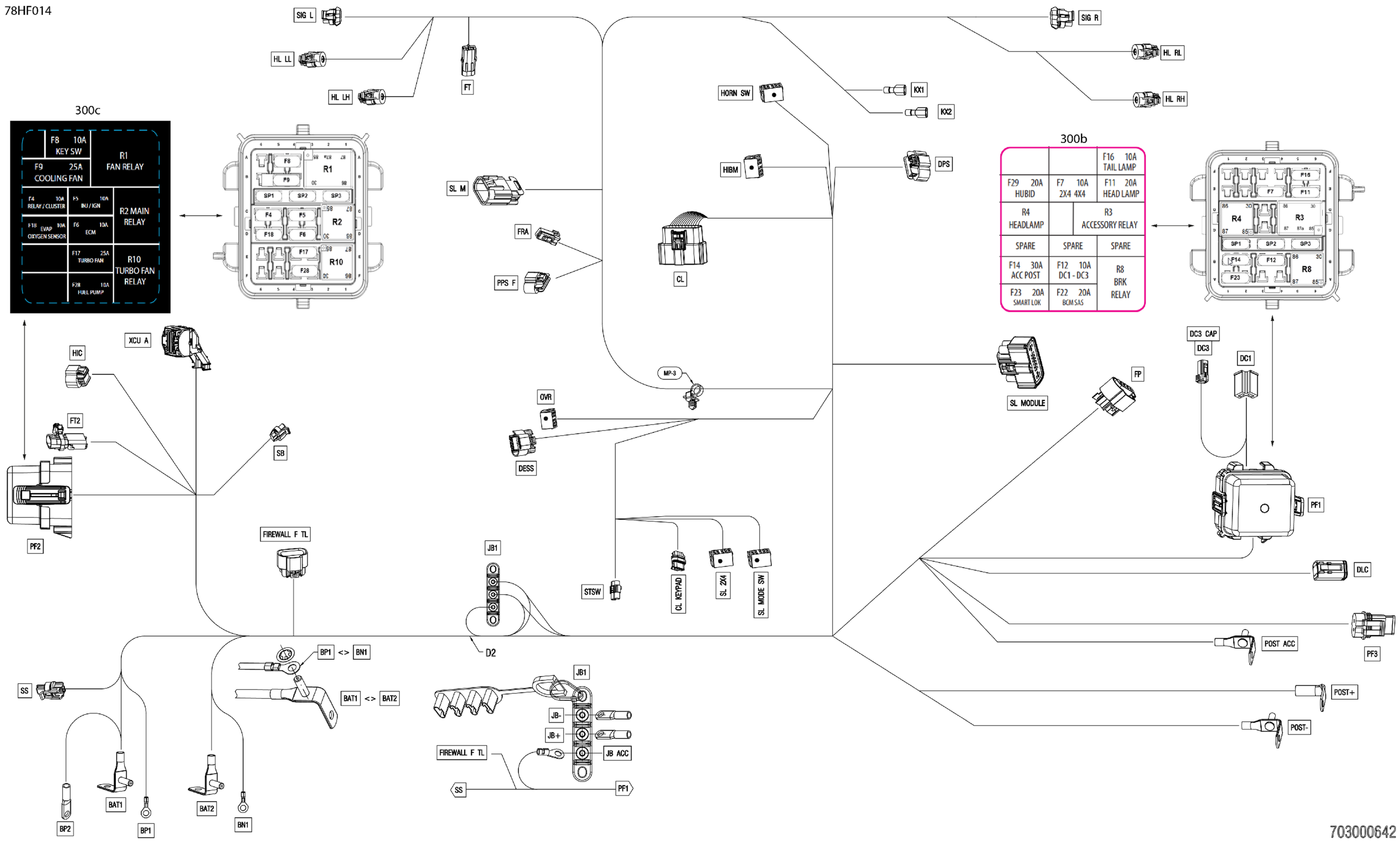

Can-Am CE - Maverick - TURBO RR - DS - 7XTD - Scandi Blue - 64" Width, 2026 Electric - Main Harness - 710010970 Diagram

#

Description
Price

300

Main Wiring Harness

710010970

$876.89

300a

Fuse Holder Support

710006339

$16.12

300b

Decal Fuses

710010765

Unavailable

300c

Fuses Decal

710007297

$10.22

BN1

Open Barrel Terminal

278001392

$4.12

BP1

Shrink Tubing, 6 mm

515177246

$1.02

BP1

Open Barrel

278000992

$1.79

CL

Female Molex Connector 20 Cavities

515179227

$15.23

CL

Sealing Cap

278002860

$1.42

CL

Female Terminal 22 AWG

515178349

$1.82

CL

Female Terminal

515178018

$0.78

CL KEYPAD

Housing

710001161

$9.15

CL KEYPAD

Lock

710001162

$3.28

CL KEYPAD

Wire Seal

710001163

$5.10

CL KEYPAD

Female Terminal

710001164

$5.92

D2

Diode

409012700

$10.83

DC1

Housing

710005373

$4.62

DC1

Terminal

710005518

$1.37

DC3

Female Housing, 2 Circuits

515175658

$15.35

DC3

Female Terminal

515175231

$4.12

DC3 CAP

Male Housing, 2 Circuits

710000667

$7.48

DESS

Female Delphi Connector 5 Cavities

710007151

$13.62

DESS

Lock

710007243

$4.60

DESS

Wire Seal

710001163

$5.10

DESS

Female Terminal

710001164

$5.92

DLC

Female Housing 6 Circuits

710002706

$16.22

DLC

Lock

710002705

$3.61

DLC

Female Terminal

710005439

$4.28

DLC

Female Terminal

710005438

$4.00

DPS

Female Housing

710004989

$7.22

DPS

Lock | PACKARD 15430900

710005098

$1.54

DPS

Lock

710001222

$1.68

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal

710003153

$0.94

DPS

Female Terminal

278002187

$5.04

DPS

Terminal

710001873

$2.02

FIREWALL F TL

Housing

710001951

$12.91

FIREWALL F TL

Lock

710001222

$1.68

FIREWALL F TL

Lock

710006361

$0.75

FIREWALL F TL

Cap

710001225

$7.27

FIREWALL F TL

Seal

710001233

$2.55

FIREWALL F TL

Terminal

710001229

$3.02

FL-1

Fuse Link

710004228

Unavailable

FL-2

Fuse Link

710004228

Unavailable

FP

Male Housing, 4 Circuits

278002185

$5.86

FP

Lock

710001222

$1.68

FP

Lock

710006214

$0.75

FP

Seal

710003153

$0.94

FP

Terminal

710001869

$2.75

FP

Terminal

710001873

$2.02

FRA

Female Housing, 2 Circuits

515175658

$15.35

FRA

Female Terminal

515175231

$4.12

FT

Clip

710000992

$4.00

FT

Female Housing, 2 Circuits

278000217

$7.59

FT

Wire Seal

278000218

$3.48

FT

Male Terminal

409004300

$5.46

FT2

Female Housing, 2 Circuits

278000217

$7.59

FT2

Wire Seal

278000218

$3.48

FT2

Male Terminal

409004300

$5.46

HIBM

Housing

710002000

$5.86

HIBM

Terminal

710003047

$3.68

HIBM

Female Terminal

710005491

$1.54

HIC

Housing

710001928

$14.97

HIC

Lock

710001222

$1.68

HIC

Lock

710006181

$3.98

HIC

Cap

710001225

$7.27

HIC

Seal

710001233

$2.55

HIC

Seal Wire

710001332

$2.72

HIC

Terminal

710001229

$3.02

HIC

Terminal

710001228

$2.72

HL LH

Housing

710007660

$7.74

HL LH

Lock

710011208

$9.22

HL LH

Wire Seal

710001163

$5.10

HL LH

Female Terminal

710001164

$5.92

HL LL

Female Housing, 2 Circuits

515177192

$6.32

HL LL

Lock

710011208

$9.22

HL LL

Wire Seal

710001163

$5.10

HL LL

Female Terminal

710001164

$5.92

HL RH

Housing

710007660

$7.74

HL RH

Lock

710011208

$9.22

HL RH

Wire Seal

710001163

$5.10

HL RH

Female Terminal

710001164

$5.92

HL RL

Female Housing, 2 Circuits

515177192

$6.32

HL RL

Lock

710011208

$9.22

HL RL

Wire Seal

710001163

$5.10

HL RL

Female Terminal

710001164

$5.92

HORN SW

Housing

710002000

$5.86

HORN SW

Female Terminal

710005491

$1.54

HORN SW

Terminal

710003047

$3.68

JB ACC

Shrink Tubing, 6 mm

515177246

$1.02

JB ACC

Open Barrel

278000992

$1.79

JB-1

Junction Block Cover

710006610

$23.05

JB-1

Junction Bloc

710006609

Unavailable

JB-1

Elastic Stop Nut M6, Brass

232561200

$3.51

KX1

Female Terminal

409010300

$4.12

KX2

Female Terminal

409010300

$4.12

OVR

Housing

710002000

$5.86

OVR

Female Terminal

710005491

$1.54

PF1

Fuse Cover

278003553

$3.79

PF1

Decal Fuses

710010765

Unavailable

PF1

Fuse Base Ass'y

278003448

$26.62

PF1

Wire Seal

278000216

$2.55

PF1

Seal

293300198

$2.31

PF1

Wire Seal

278000218

$3.48

PF1

Wire Seal

710000048

$5.10

PF1

Wire Seal

278001065

$6.03

PF1

Female Terminal

515177177

$5.11

PF1

Female Terminal

710000918

$5.10

PF1

Female Terminal

278002578

$0.86

PF1 SP1

Little Fuse, 10 Amperes

710000744

$7.24

PF1 SP2

Little Fuse, 10 Amperes

710000744

$7.24

PF1 SP3

Little Fuse, 20 Amperes

710000746

$6.77

PF1-F11

Little Fuse, 20 Amperes

710000746

$6.77

PF1-F12

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F14

Little Fuse, 30 Amperes

710000747

$6.77

PF1-F16

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F23

Little Fuse, 20 Amperes

710000746

$6.77

PF1-F7

Little Fuse, 10 Amperes

710000744

$7.24

PF1-R3

Relay

710009145

$15.22

PF1-R4

Relay

715900824

$16.22

PF1-R8

Relay

715900824

$16.22

PF2

Fuse Cover

278003553

$3.79

PF2

Fuses Decal

710007297

$10.22

PF2

Fuse Base Ass'y

278003448

$26.62

PF2

Wire Seal

278000216

$2.55

PF2

Seal

293300198

$2.31

PF2

Wire Seal

278000218

$3.48

PF2

Wire Seal

278001065

$6.03

PF2

Wire Seal

710000048

$5.10

PF2

Female Terminal

710000918

$5.10

PF2

Female Terminal

278002578

$0.86

PF2

Female Terminal

710000890

$3.73

PF2 SP1

Little Fuse, 10 Amperes

710000744

$7.24

PF2 SP2

Little Fuse, 10 Amperes

710000744

$7.24

PF2 SP3

Little Fuse, 25 Ampere

278002389

$4.42

PF2-F17

Little Fuse, 25 Ampere

278002389

$4.42

PF2-F18

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F28

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F4

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F5

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F6

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F8

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F9

Fuse, 25 Amps

710002590

$18.43

PF2-R1

Relay, 30 AMP

515176774

$19.20

PF2-R10

Relay

715900824

$16.22

PF2-R2

Relay

715900824

$16.22

PF3

Fuse Holder

278001325

$8.57

PF3

Female Terminal

710000113

$6.03

PF3-F2

Fuse

710001613

$7.24

POST ACC

Folded Terminal Eyelet

710006749

$10.14

PPS F

Housing

710001232

$13.80

PPS F

Lock

710001222

$1.68

PPS F

Seal

710001233

$2.55

PPS F

Terminal

710001229

$3.02

SB

Housing

710002177

$3.98

SB

Lock

710002043

$0.85

SB

Seal

278001482

$2.55

SB

Female Terminal

710001134

$6.03

SIG L

Female Housing

710005321

$4.60

SIG L

Lock

710000642

$3.85

SIG L

Cap

710006310

$1.37

SIG L

Seal

278001482

$2.55

SIG L

Female Terminal

710001134

$6.03

SIG R

Female Housing

710005321

$4.60

SIG R

Lock

710000642

$3.85

SIG R

Cap

710006310

$1.37

SIG R

Seal

278001482

$2.55

SIG R

Female Terminal

710001134

$6.03

SL 2X4

Housing

710002000

$5.86

SL 2X4

Female Terminal

710005491

$1.54

SL 2X4

Terminal

710003047

$3.68

SL M

Housing

710001927

$8.57

SL M

Holder | XMR

710002006

$3.68

SL M

Lock

710006181

$3.98

SL M

Seal

710001233

$2.55

SL M

Seal Wire

710001332

$2.72

SL M

Terminal

710001224

$3.02

SL M

Terminal

710001223

$3.02

SL MODE SW

Housing

710002000

$5.86

SL MODE SW

Terminal

710003047

$3.68

SL MODULE LT

Seal

278003046

$0.74

SL MODULE LT

Seal Plug

710006362

$6.45

SL MODULE LT

Terminal

710005584

$1.83

SL MODULE ST

Female Housing ,16 Circuits

278003484

$14.27

SL MODULE ST

Female Terminal

515178018

$0.78

SL MODULE ST

Female Terminal 22 AWG

515178349

$1.82

SS

Female Housing, 2 Circuits

515177192

$6.32

SS

Lock

710001152

$3.48

SS

Wire Seal

710001163

$5.10

SS

Female Terminal

710001164

$5.92

STSW

Wire Seal

710000402

$4.42

STSW

Female Terminal

409012100

$3.73

XCU A

Cover

515178602

$4.80

XCU A

Housing 56 Circuits

515178618

Unavailable

XCU A

Plate

515178604

$3.63

XCU A

Plug

515178599

$2.60

XCU A

Plug

515178600

$2.60

XCU A

Plate

515178603

$3.63

XCU A

Terminal

515178596

$3.30

XCU A LT

Terminal

515178598

$3.21

XCU A LT

Terminal

515178666

$4.60
