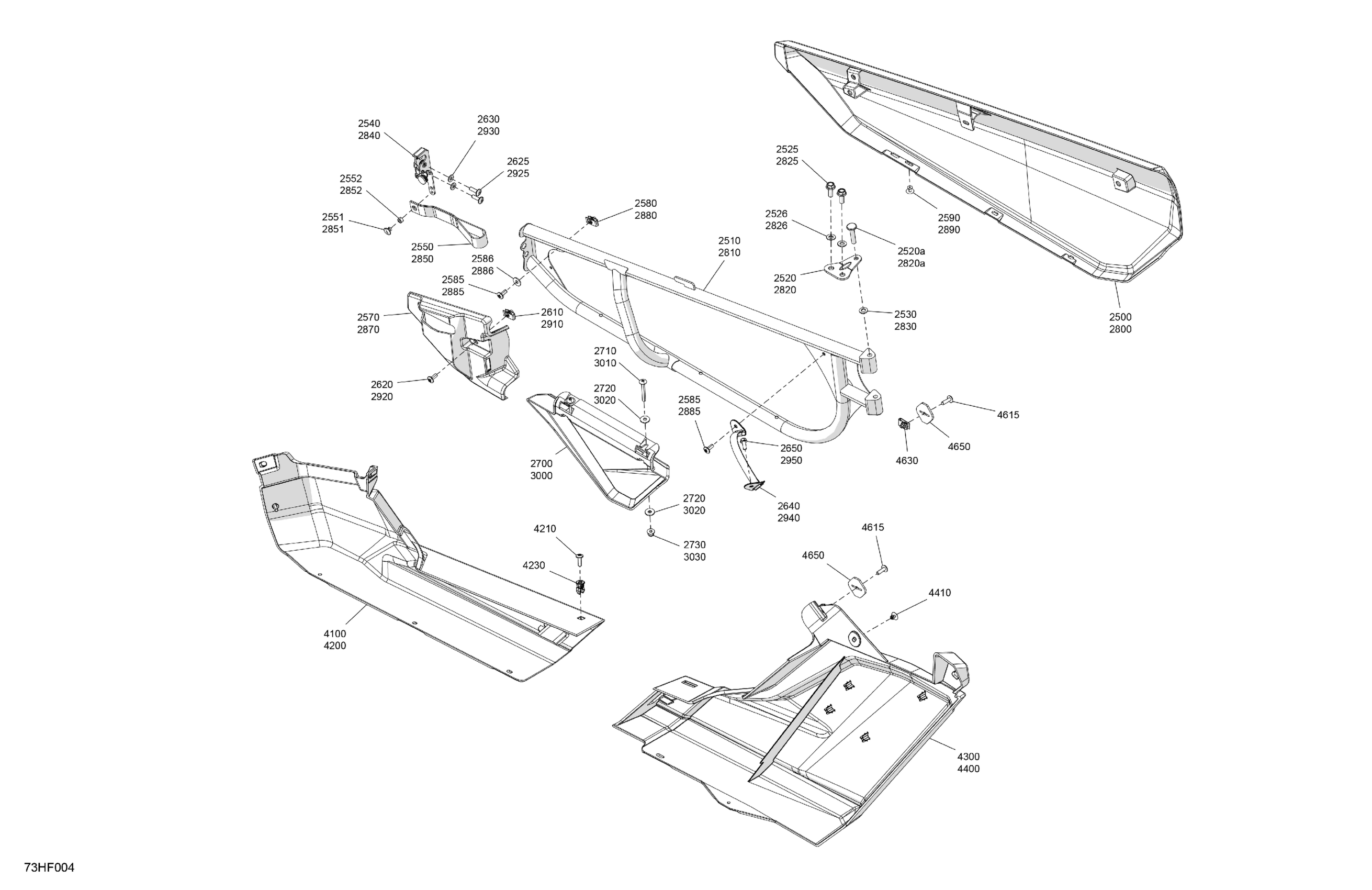

Can-Am CE - Maverick - TURBO RR - DS - 7XTD - Scandi Blue - 64" Width, 2026 Body - Doors Diagram

#

Description
Price

2500

Scandi Blue, LH Front Door Panel

705019928

Unavailable

2510

Deep Black, LH Front Door

705018468

$141.01

2520

Door Support

705011187

$10.55

2520a

Door Support

705011187

$10.55

2525

Hex Screw Washer Head M8 X 20

207582054

$3.00

2526

Flat Washer M8

234081430

$2.00

2530

Flat Washer 8 mm, Nylon

234081100

$1.15

2540

LH Latch

705013095

$53.70

2550

Belt

293850135

$13.45

2551

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

2552

Bushing | DS 650 X

293900104

$5.10

2570

LH Latch Cover

705013535

$35.79

2580

Panel Nut M6 X 1.0

250100198

$1.99

2585

Torx Truss Screw M6 X 16

250000721

$1.60

2586

Stainless Steel Flat Washer

234062670

$2.00

2590

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

2610

Panel Nut M6 X 1.0

250100198

$1.99

2620

Torx Truss Screw M6 X 16

250000721

$1.60

2625

Torx Screw M6 X 20, Scotch Grip

250000786

$3.01

2630

Flat Washer

224061121

$0.51

2640

Retaining Strap

705801727

$14.61

2650

Hex. Forming Screw M6 X 10

210261050

$1.63

2700

LH Lower Door Panel

705010732

$52.21

2710

Torx Truss Screw M6 X 50

250000749

$3.01

2720

Stainless Steel Flat Washer

234062670

$2.00

2730

Hex. Flange Elastic Nut M6

233261466

$1.91

2800

Scandi Blue, RH Front Door Panel

705019929

Unavailable

2810

Deep Black, RH Front Door

705018470

$141.01

2820

Door Support

705011187

$10.55

2820a

Door Support

705011187

$10.55

2825

Hex Screw Washer Head M8 X 20

207582054

$3.00

2826

Flat Washer M8

234081430

$2.00

2830

Flat Washer 8 mm, Nylon

234081100

$1.15

2840

RH Latch

705013096

$53.70

2850

Belt

293850135

$13.45

2851

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

2852

Bushing | DS 650 X

293900104

$5.10

2870

RH Latch Cover

705013536

$35.79

2880

Panel Nut M6 X 1.0

250100198

$1.99

2885

Torx Truss Screw M6 X 16

250000721

$1.60

2886

Stainless Steel Flat Washer

234062670

$2.00

2890

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

2910

Panel Nut M6 X 1.0

250100198

$1.99

2920

Torx Truss Screw M6 X 16

250000721

$1.60

2925

Torx Screw M6 X 20, Scotch Grip

250000786

$3.01

2930

Flat Washer

224061121

$0.51

2940

Retaining Strap

705801727

$14.61

2950

Hex. Forming Screw M6 X 10

210261050

$1.63

3000

RH Lower Door Panel

705010733

$55.19

3010

Torx Truss Screw M6 X 50

250000749

$3.01

3020

Stainless Steel Flat Washer

234062670

$2.00

3030

Hex. Flange Elastic Nut M6

233261466

$1.91

4100

LH Central Lateral Panel

705009513

$60.42

4200

Deep Black, RH Central Body Panel

705017555

$66.39

4210

Torx Screw M6 X 20

250000722

$1.54

4230

Insert

705016606

$2.06

4300

LH Rear Lateral Panel

705010676

$104.45

4400

Deep Black, RH Rear Lateral Panel

705010677

$104.45

4410

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

4615

Torx Screw M6 X 20

250000722

$1.54

4630

Panel Nut M6 X 1.0

250100198

$1.99

4650

Support Plate

705003841

$0.91
