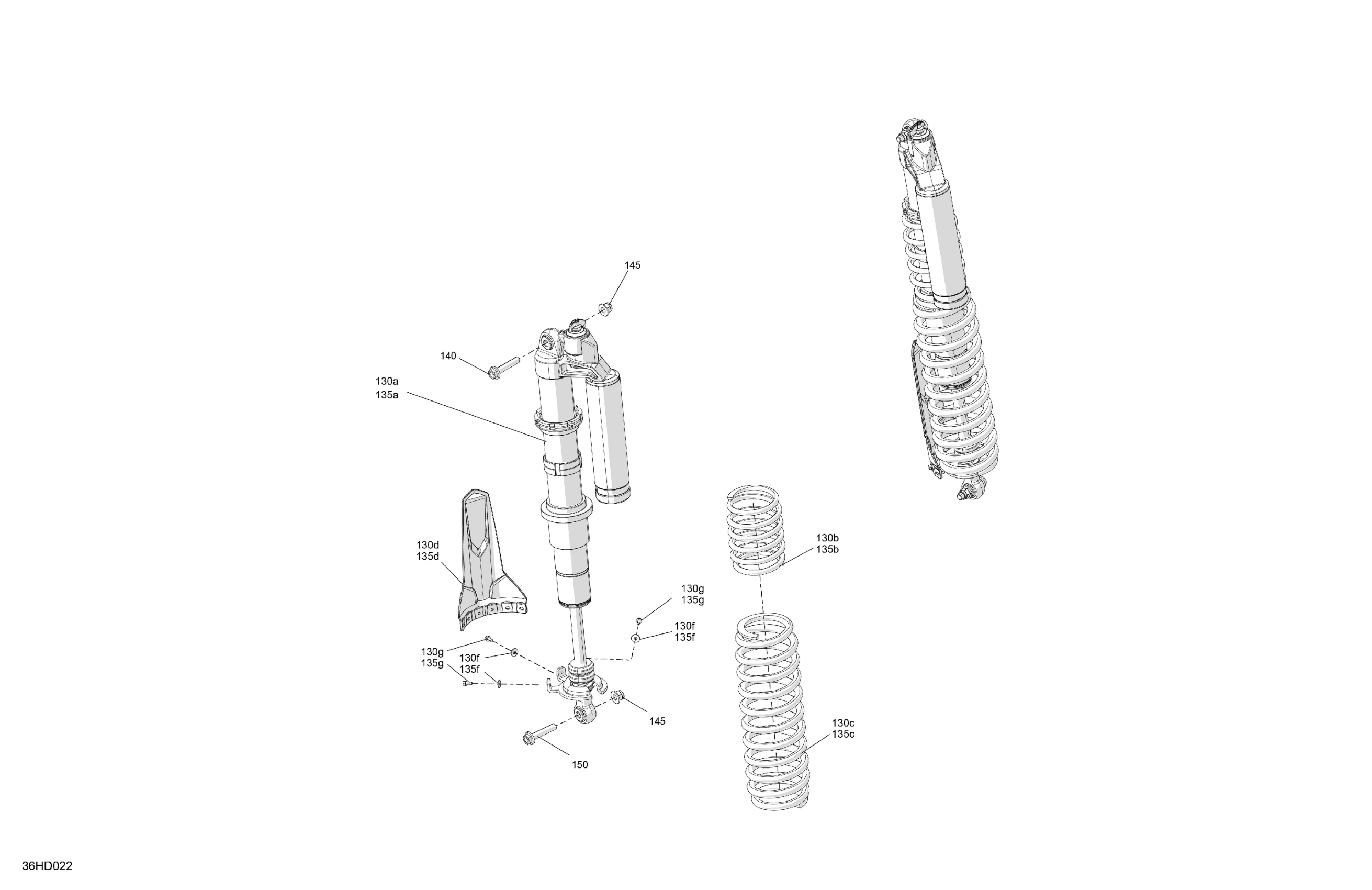

Can-Am CE - Maverick Turbo RR - DS - 7XRG - Catalyst Gray - 64" Width, 2024 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a2

706004676

$905.19

130a1

Collar

715900791

$12.69

130a2

Spherical Bearing

715900954

$68.63

130b

Black, Rear Spring

706002763

$91.76

130c

Deep Black, Compression Spring

706005144

$155.94

130d

Protector

706202215

$8.66

130f

Washer M5

250200025

$0.70

130g

Hex Flange Screw M5 X 11

210251150

$2.00

135a

RH Rear Adjustable Shock Absorber

706004677

$895.49

135b

Black, Rear Spring

706002763

$91.76

135c

Deep Black, Compression Spring

706005144

$155.94

135d

Protector

706202215

$8.66

135f

Washer M5

250200025

$0.70

135g

Hex Flange Screw M5 X 11

210251150

$2.00

140

Flange Screw M12 X 60

250000857

$6.99

145

Elastic Flange Nut M12

250001195

$2.46

150

Flange Screw M12 X 60

250000857

$6.99
