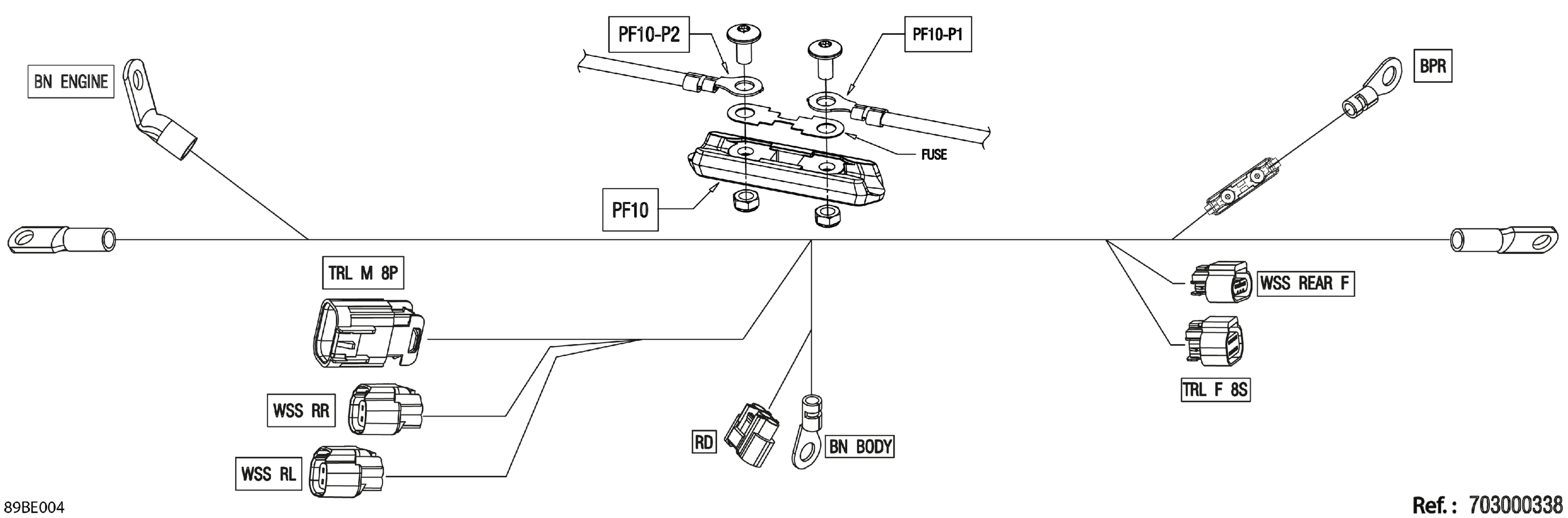

Can-Am CE - Maverick Trail - 700 - DPS SAS - 7HSE - Timeless Black Metallic - 50" Width, 2025 Electric - Voltage Regulator Wiring - 710007634 Diagram

Description

Price

Voltage Regulator Wiring Harness

710007634

$152.96

BN BODY

Terminal

710000913

$5.30

BN ENGINE

Terminal

515177214

$6.24

BPR

Open Barrel Terminal

278001392

$4.00

PF10

Fuse Holder Support

710007204

$9.48

PF10-F1

50A Fuse

710007318

$21.61

PF10-P1

Terminal Ring

515177799

$8.31

PF10-P2

Terminal Ring

515177799

$8.31

Female Housing, 3 Circuits

710000879

$24.60

Cap

710000882

$10.55

Seal

710001932

$3.06

Terminal

710001934

$5.18

TRL F 8S

Housing

710001928

$14.52

TRL F 8S

Lock

710001222

$1.93

TRL F 8S

Lock

710006181

$3.12

TRL F 8S

Seal

710001233

$2.93

TRL F 8S

Terminal

710001229

$2.93

TRL M 8P

Clip

710000992

$3.88

TRL M 8P

Housing

710001927

$8.31

TRL M 8P

Lock

710006181

$3.12

TRL M 8P

Seal

710001233

$2.93

TRL M 8P

Terminal

710001224

$2.93

WSS REAR F

Female Housing

515177186

$24.60

WSS REAR F

Lock

710001222

$1.93

WSS REAR F

Lock

710006398

$0.73

WSS REAR F

Seal

710001233

$2.93

WSS REAR F

Terminal

710001229

$2.93

WSS RL

Connector 2 Pins

710005669

$2.24

WSS RL

Seal

710005689

$2.09

WSS RL

Female Terminal 18-20 AWG

515178348

$1.57

WSS RR

Connector 2 Pins

710005669

$2.24

WSS RR

Seal

710005689

$2.09

WSS RR

Female Terminal 18-20 AWG

515178348

$1.57

WSS RR

Seal

710005689

$2.09

WSS RR

Female Terminal 18-20 AWG

515178348

$1.57
