Partiron

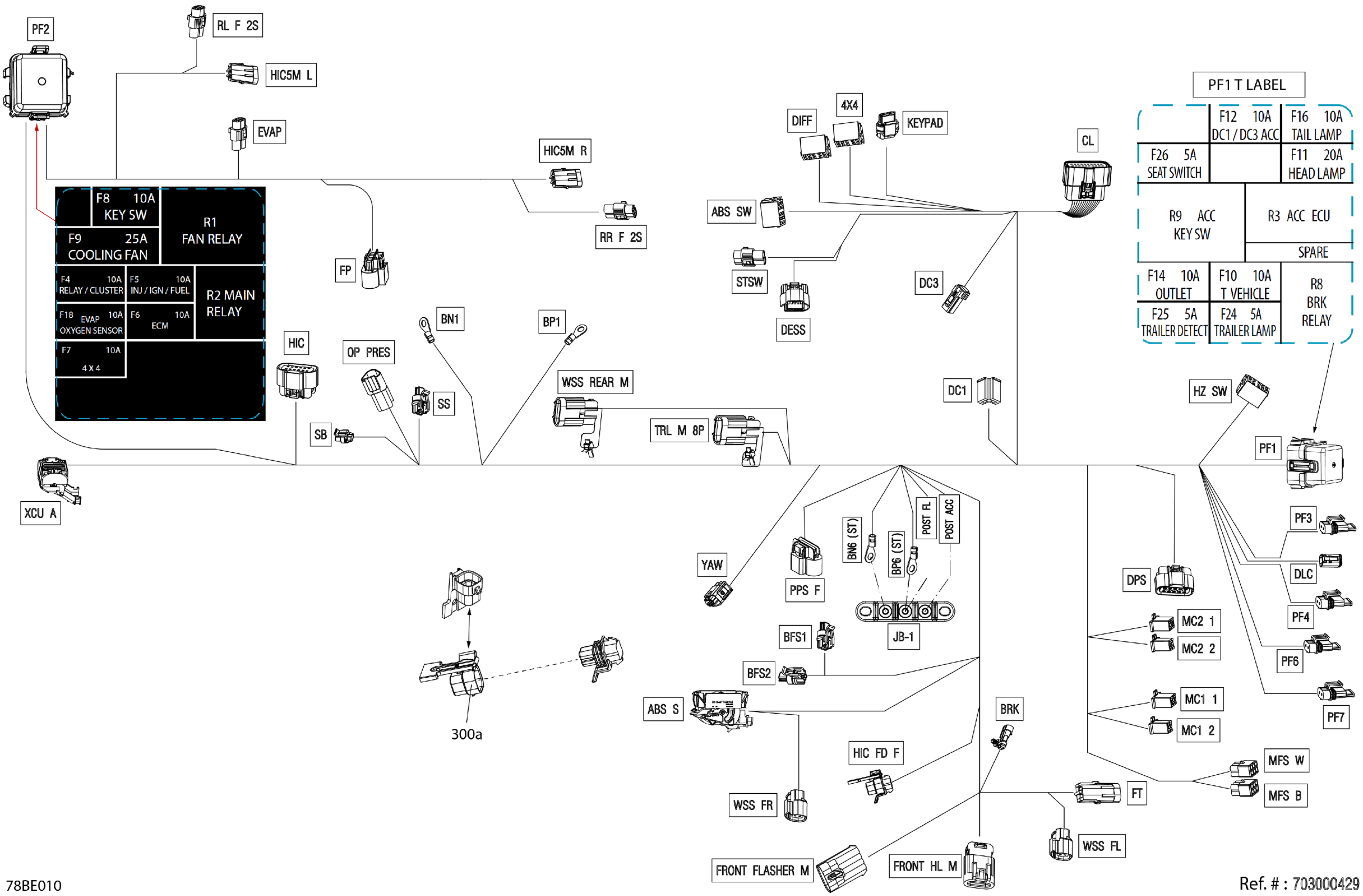

Can-Am CE - Maverick Trail - 700 - DPS SAS - 7HSE - Timeless Black Metallic - 50" Width, 2025 Electric - Main Harness - 710008859 Diagram

#

Description
Price

300

Main Wiring Harness

710008859

$788.03

300a

Connector Guard

710007680

$8.43

4x4

Housing

710002000

$6.73

4x4

Terminal

710003047

$3.12

4x4

Female Terminal

710005491

$1.57

ABS L

Wire Seal

710001159

$5.90

ABS L

Terminal

710002775

$0.74

ABS M

Wire Seal

278000999

$2.93

ABS M

Female Terminal

710000836

$5.30

ABS S

RH Connector Cover

710002772

$4.19

ABS S

Housing

710002768

$16.39

ABS S

Plug

710001258

$3.29

ABS S

Wire Seal

710006230

$1.49

ABS S

Terminal

710002773

$2.09

ABS SW

Housing

710002000

$6.73

ABS SW

Female Terminal

710005491

$1.57

BFS1

Female Housing, 2 Circuits

515177192

$7.25

BFS1

Lock

710001152

$4.00

BFS1

Wire Seal

710001163

$5.85

BFS1

Female Terminal

710001164

$6.79

BFS2

Female Housing, 2 Circuits

515177192

$7.25

BFS2

Lock

710001152

$4.00

BFS2

Wire Seal

710001163

$5.85

BFS2

Female Terminal

710001164

$6.79

BN1

Open Barrel Terminal

278001392

$4.00

BN6 (ST)

Open Barrel Terminal

278001392

$4.00

BP1

Shrink Tubing, 6 mm

515177246

$0.99

BP1

Open Barrel

278000992

$2.06

BP6 (ST)

Open Barrel Terminal

278001392

$4.00

BRK

Male Terminal Housing, 2 Circuits

409209400

$14.52

BRK

Wire Seal

515176621

$6.79

BRK

Male Terminal

515176164

$6.24

CL

Female Housing 20 Circuits

278002858

$22.98

CL

Female Terminal

515178018

$0.90

CL

Female Terminal 22 AWG

515178349

$1.76

D2

Diode

409012700

$10.51

DC1

Housing

710005373

$3.93

DC1

Female Terminal

710005952

$1.49

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Female Terminal

515175231

$4.00

DC3 CAP

Male Housing, 2 Circuits

710000667

$7.25

DESS

Female Delphi Connector 5 Cavities

710007151

$15.64

DESS

Lock

710007243

$3.93

DESS

Wire Seal

710001163

$5.85

DESS

Female Terminal

710001164

$6.79

DIFF

Label

710006076

Unavailable

DIFF

Housing Connector

710002003

$11.81

DIFF

Female Terminal

710005491

$1.57

DIFF

Terminal

710003047

$3.12

DLC

Female Housing 6 Circuits

710002706

$18.63

DLC

Lock

710002705

$4.15

DLC

Female Terminal

710005438

$3.88

DLC

Female Terminal

710005439

$4.15

DPS

Female Housing

710004989

$7.00

DPS

Lock | PACKARD 15430900

710005098

$1.57

DPS

Lock

710001222

$1.93

DPS

Plug

710002075

$2.84

DPS

Wire Seal

278002186

$5.18

DPS

Seal

710003153

$0.91

DPS

Female Terminal

278002187

$5.79

DPS

Terminal

710001873

$2.19

EVAP

Wire Seal

710000402

$4.28

EVAP

Female Terminal

409012100

$4.28

FL 1

Fuse Link 21-30AMP

715002536

$14.27

FL 2

Fuse Link 41-50AMP

715002538

$20.12

FP

Male Housing, 4 Circuits

278002185

$6.73

FP

Lock

710001222

$1.93

FP

Lock

710006214

$0.73

FP

Wire Seal

278002186

$5.18

FP

Seal

710003153

$0.91

FP

Female Terminal

278002187

$5.79

FP

Terminal

710001873

$2.19

FRONT FLASHER M

Clip Bracket Connector (edge)

409210100

$1.94

FRONT FLASHER M

Male Delphi Connector 4 Cavities

710006179

$5.52

FRONT FLASHER M

Lock

710005394

$3.12

FRONT FLASHER M

Seal

278001482

$2.93

FRONT FLASHER M

Seal

710000643

$4.00

FRONT FLASHER M

Gold Terminal

710002467

$1.76

FRONT FLASHER M

Terminal

710000736

$5.19

FRONT HL M

Clip Bracket Connector (edge)

409210100

$1.94

FRONT HL M

Housing

515177201

$7.33

FRONT HL M

Lock

710006398

$0.73

FRONT HL M

Seal

710001233

$2.93

FRONT HL M

Seal Wire

710001332

$3.12

FRONT HL M

Terminal

710001224

$2.93

FRONT HL M

Terminal

710001223

$2.93

FT

Clip

710000992

$3.88

FT

Female Housing, 2 Circuits

278000217

$8.72

FT

Wire Seal

278000218

$4.00

FT

Male Terminal

409004300

$5.30

HIC

Female Housing, 12 Circuits

710001930

$13.52

HIC

Lock

710006333

$5.52

HIC

Lock

710001222

$1.93

HIC

Cap

710001225

$8.34

HIC

Seal Wire

710001332

$3.12

HIC

Seal

710001233

$2.93

HIC

Terminal

710001229

$2.93

HIC

Terminal

710001228

$3.12

HIC FD F

Housing

710001132

$9.31

HIC FD F

Lock

710001133

$4.00

HIC FD F

Seal

278001482

$2.93

HIC FD F

Female Terminal

710001134

$5.85

HIC5M L

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

HIC5M L

Wire Seal

278001065

$5.85

HIC5M L

Male Terminal | XT Models

278000222

$2.93

HIC5M R

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

HIC5M R

Wire Seal

278001065

$5.85

HIC5M R

Male Terminal | XT Models

278000222

$2.93

HZ SW

Housing

710002000

$6.73

HZ SW

Terminal

710003047

$3.12

HZ SW

Female Terminal

710005491

$1.57

JB-1

Junction Block Cover

710006610

$19.37

JB-1

Elastic Stop Nut M6, Brass

232561200

$4.03

KEYPAD

Housing

710001161

$10.51

KEYPAD

Lock

710001162

$3.18

KEYPAD

Wire Seal

710001163

$5.85

KEYPAD

Female Terminal

710001164

$6.79

MC1 1

Female Housing

710004047

$13.12

MC1 1

Terminal

710002315

$4.19

MC1 2

Female Housing

710004048

$13.75

MC1 2

Terminal

710002315

$4.19

MC2 1

Female Housing

710004047

$13.12

MC2 1

Terminal

710002315

$4.19

MC2 2

Female Housing

710004048

$13.75

MC2 2

Terminal

710002315

$4.19

MFS B

Female Housing, 6 Circuits

710000081

$7.88

MFS B

Cap

710000080

$6.28

MFS B

Wire Seal

710000402

$4.28

MFS B

Seal

409012300

$4.25

MFS B

Female Terminal

409012100

$4.28

MFS W

Female Housing, 6 Circuits

710000081

$7.88

MFS W

Cap

710000080

$6.28

MFS W

Seal

409012300

$4.25

MFS W

Wire Seal

710000402

$4.28

MFS W

Female Terminal

409012100

$4.28

OP PRES

Male Housing

278002378

$12.52

OP PRES

Clip

710005273

$6.75

OP PRES

Male Lock, 3 Circuits

409207600

$2.93

OP PRES

Male Terminal

710001348

$10.81

PF1

Fuse Cover

278003553

$3.79

PF1

Fuse Base Ass'y

278003448

$30.57

PF1

Housing Support

710005671

Unavailable

PF1

Wire Seal

278000216

$2.93

PF1

Seal

293300198

$1.78

PF1

Wire Seal

278000218

$4.00

PF1

Wire Seal

710000048

$5.85

PF1

Wire Seal

278001065

$5.85

PF1

Female Terminal

515177177

$4.96

PF1

Female Terminal

710000918

$5.85

PF1

Female Terminal

278002578

$0.99

PF1 T LABEL

Fuse Box Decal

710007045

$17.13

PF1-F10

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F11

Little Fuse, 20 Amperes

710000746

$7.78

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F14

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F24

Little Fuse, 5 Amperes

710000742

$8.31

PF1-F25

Little Fuse, 5 Amperes

710000742

$8.31

PF1-F26

Little Fuse, 5 Amperes

710000742

$8.31

PF1-R3

Relay, 30 AMP

515176774

$18.63

PF1-R8

Relay

715900824

$18.63

PF1-R9

Relay, 30 AMP

515176774

$18.63

PF1-SP1

Little Fuse, 20 Amperes

710000746

$7.78

PF2

Fuse Cover

278003553

$3.79

PF2

Fuse Box Decal

710006792

$12.79

PF2

Fuse Base Ass'y

278003448

$30.57

PF2

Wire Seal

278000216

$2.93

PF2

Seal

293300198

$1.78

PF2

Wire Seal

278000218

$4.00

PF2

Wire Seal

278001065

$5.85

PF2

Female Terminal

710000918

$5.85

PF2

Female Terminal

278002578

$0.99

PF2 SP1

Little Fuse, 10 Amperes

710000744

$8.31

PF2 SP2

Little Fuse, 10 Amperes

710000744

$8.31

PF2 SP3

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F7

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F9

Fuse, 25 Amps

710002590

$17.88

PF2-R1

Relay, 30 AMP

515176774

$18.63

PF2-R2

Relay

715900824

$18.63

PF3

Fuse Holder

278001325

$8.31

PF3

Female Terminal

710000113

$5.85

PF3-F2

Fuse

710001613

$8.31

PF4

Fuse Holder

278001325

$8.31

PF4

Female Terminal

710000113

$5.85

PF4

Female Terminal

710000357

$5.85

PF4-F21

Fuse, 30 Amperes

410917200

$3.12

PF6

Fuse Holder

278001325

$8.31

PF6

Female Terminal

710000357

$5.85

PF6-F1

Fuse

710001613

$8.31

PF7

Fuse Holder

278001987

$12.52

PF7

Female Terminal

710000113

$5.85

PF7-F1

25 Amp Fuse

278003867

$3.16

POST ACC

Shrink Tubing, 6 mm

515177246

$0.99

POST ACC

Open Barrel

278000992

$2.06

POST FL

Shrink Tubing, 6 mm

515177246

$0.99

POST FL

Open Barrel

278000992

$2.06

PPS F

Housing

710001232

$13.39

PPS F

Lock

710001222

$1.93

PPS F

Seal

710001233

$2.93

PPS F

Terminal

710001229

$2.93

R-1

Resistor

710006155

$2.24

R-3

Resistor

710005179

$2.24

RL F 2S

Wire Seal

710000402

$4.28

RL F 2S

Female Terminal

409012100

$4.28

RR F 2S

Wire Seal

710000402

$4.28

RR F 2S

Female Terminal

409012100

$4.28

SB

Housing

710002177

$3.12

SB

Lock

710002043

$0.81

SB

Seal

278001482

$2.93

SB

Female Terminal

710001134

$5.85

SS

Female Housing, 2 Circuits

515177192

$7.25

SS

Lock

710001152

$4.00

SS

Wire Seal

710001163

$5.85

SS

Female Terminal

710001164

$6.79

STSW

Wire Seal

710000402

$4.28

STSW

Female Terminal

409012100

$4.28

TRL M 8P

Holder

710002493

$2.88

TRL M 8P

Housing

710001927

$8.31

TRL M 8P

Lock

710006181

$3.12

TRL M 8P

Seal

710001233

$2.93

TRL M 8P

Terminal

710001224

$2.93

WSS FL

Connector 2 Pins

710005669

$2.24

WSS FL

Seal

710005689

$2.09

WSS FL

Female Terminal 18-20 AWG

515178348

$1.57

WSS FR

Connector 2 Pins

710005669

$2.24

WSS FR

Seal

710005689

$2.09

WSS FR

Female Terminal 18-20 AWG

515178348

$1.57

WSS REAR M

Holder

710002493

$2.88

WSS REAR M

Housing

515177201

$7.33

WSS REAR M

Lock

710006398

$0.73

WSS REAR M

Seal

710001233

$2.93

WSS REAR M

Terminal

710001224

$2.93

XCU A

Cover

515178602

$4.66

XCU A

Housing 56 Circuits

515178618

Unavailable

XCU A

Plate

515178604

$4.16

XCU A

Plug

515178599

$2.99

XCU A

Plate

515178603

$4.16

XCU A

Terminal

515178596

$3.79

XCU A

Terminal

515178598

$3.69

XCU A

Terminal

515178666

$4.19

YAW

Housing

710003730

$13.75

YAW

Wire Seal

710006230

$1.49

YAW

Female Terminal

710003862

$2.31
