08- Electric - Front Section

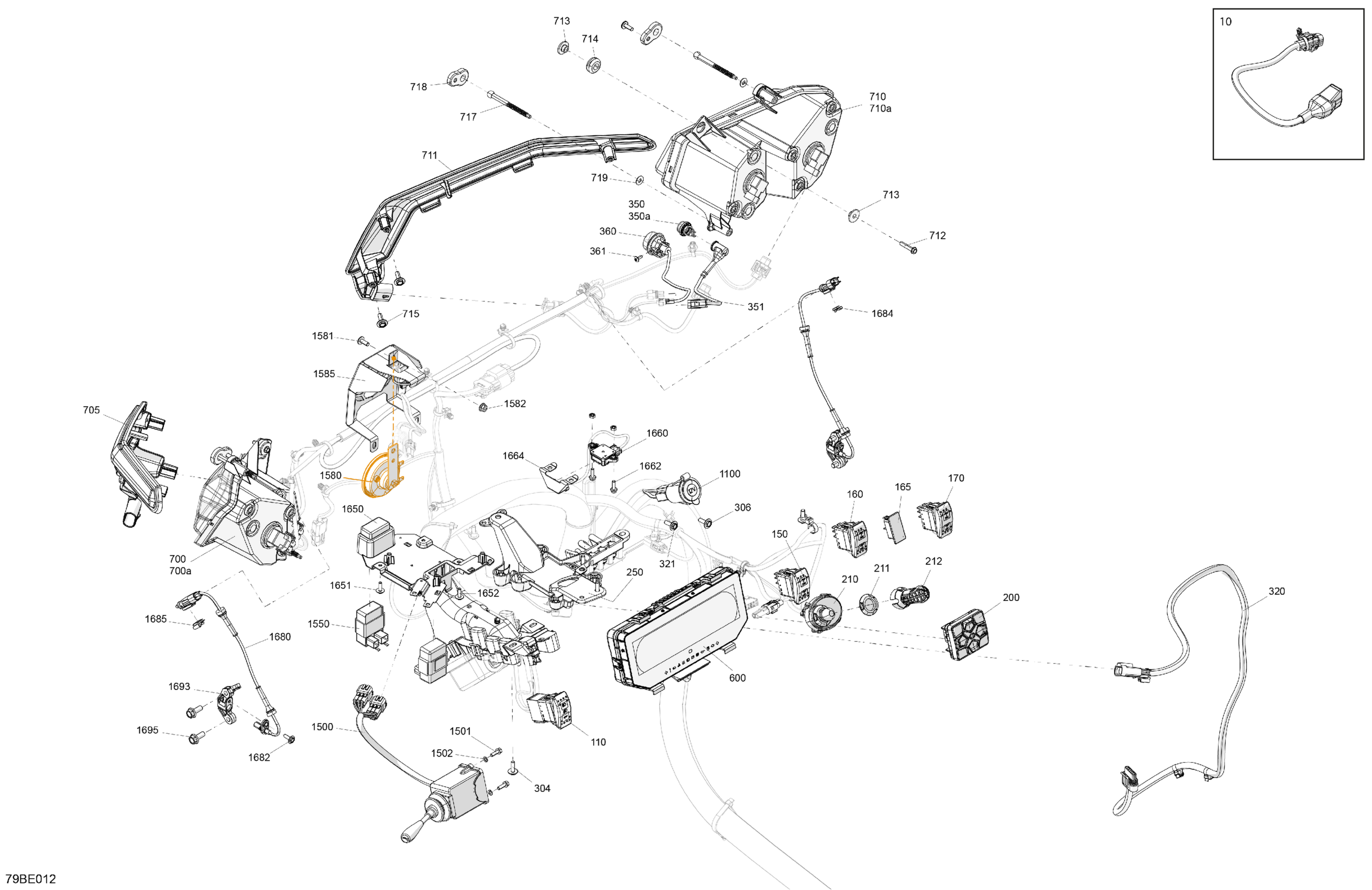

Can-Am CE - Maverick Trail - 700 - DPS SAS - 7HSE - Timeless Black Metallic - 50" Width, 2025 08- Electric - Front Section Diagram
#
10
Wiring Harness
710007655
Unavailable
35
Elastic Stop Nut M6, Brass
232561200
Unavailable
110
Hazard Lights Switch
710006107
Unavailable
150
Switch 2X4
710005489
Unavailable
160
Differential Lock Switch
710005470
Unavailable
160
Plug Carling | Australia, Brazil, Europe, Japan
710007173
Unavailable
170
Switch HDC
710006553
Unavailable
200
Multifonction Switch
710006650
Unavailable
210
Terminal DESS CAN | CARB Vehicle
710008832
Unavailable
211
Specialized Nut
278004274
Unavailable
212
Grey Key RFID | Except Model Europe, Except T3
710004964
Unavailable
214
Start-Stop Button | Not Shown
710005213
Unavailable
250
Housing Support
710005672
Unavailable
304
Screw PT Type K-50 X 16
250000959
Unavailable
306
Screw PT Type K-50 X 16
250000959
Unavailable
320
Trottle Pedal Harness
710005929
Unavailable
321
Screw PT Type K-50 X 16
250000959
Unavailable
350
Day Light | Europe
710001726
Unavailable
351
Position Light Harness
710005676
Unavailable
360
Flasher | Europe
710002964
Unavailable
361
Torx Truss Screw M6 X 16
250000721
Unavailable
600
MID Multifunction Gauge
710008295
Unavailable
700
LH Headlamp | Includes 700 to 700a
710008230
Unavailable
700a
Bulb 12V 55W
715900141
Unavailable
705
LH Fascia Trim
705011485
Unavailable
710
RH Headlamp | Includes 710 to 710a
710008231
Unavailable
710a
Bulb 12V 55W
715900141
Unavailable
711
RH Fascia Trim
705011486
Unavailable
712
Hex. Flange Screw K50 X 2.24 X 25
241152540
Unavailable
713
Shoulder Bushing
710004749
Unavailable
714
Overmolded Grommet
293720130
Unavailable
715
Screw PT Type K-50 X 16
250000959
Unavailable
717
Ajustment Screw
710005837
Unavailable
718
Ball Socket
293900157
Unavailable
719
O-Ring
293300192
Unavailable
1100
12V Power Outlet
710005374
Unavailable
1500
Turn Signal | Europe
710001721
Unavailable
1501
Hex. Forming Screw M5 X 16
210251650
Unavailable
1502
Lock Washer 5 mm | Europe
234151401
Unavailable
1550
Flasher Unit
710003239
Unavailable
1580
Horn
710004791
Unavailable
1581
Torx Truss Screw M6 X 16
250000721
Unavailable
1582
Hex. Flange Elastic Nut M6
233261494
Unavailable
1585
Horn Bracket
710006055
Unavailable
1650
Support Connector
710006056
Unavailable
1651
Screw PT Type K-50 X 16
250000959
Unavailable
1652
Screw PT Type K-50 X 16
250000959
Unavailable
1660
Yaw Rate Sensor
710005658
Unavailable
1662
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
1664
Yaw Sensor Support
710006501
Unavailable
1680
Speed Sensor
710006981
Unavailable
1682
Screw PT Type K-50 X 16
250000959
Unavailable
1684
Clip Bracket Connector (edge)
409210100
Unavailable
1685
Clip
710001038
Unavailable
1693
ABS Sensor Support
710008185
Unavailable
1695
Hex Screw Washer Head M8 X 20
207582054
Unavailable
