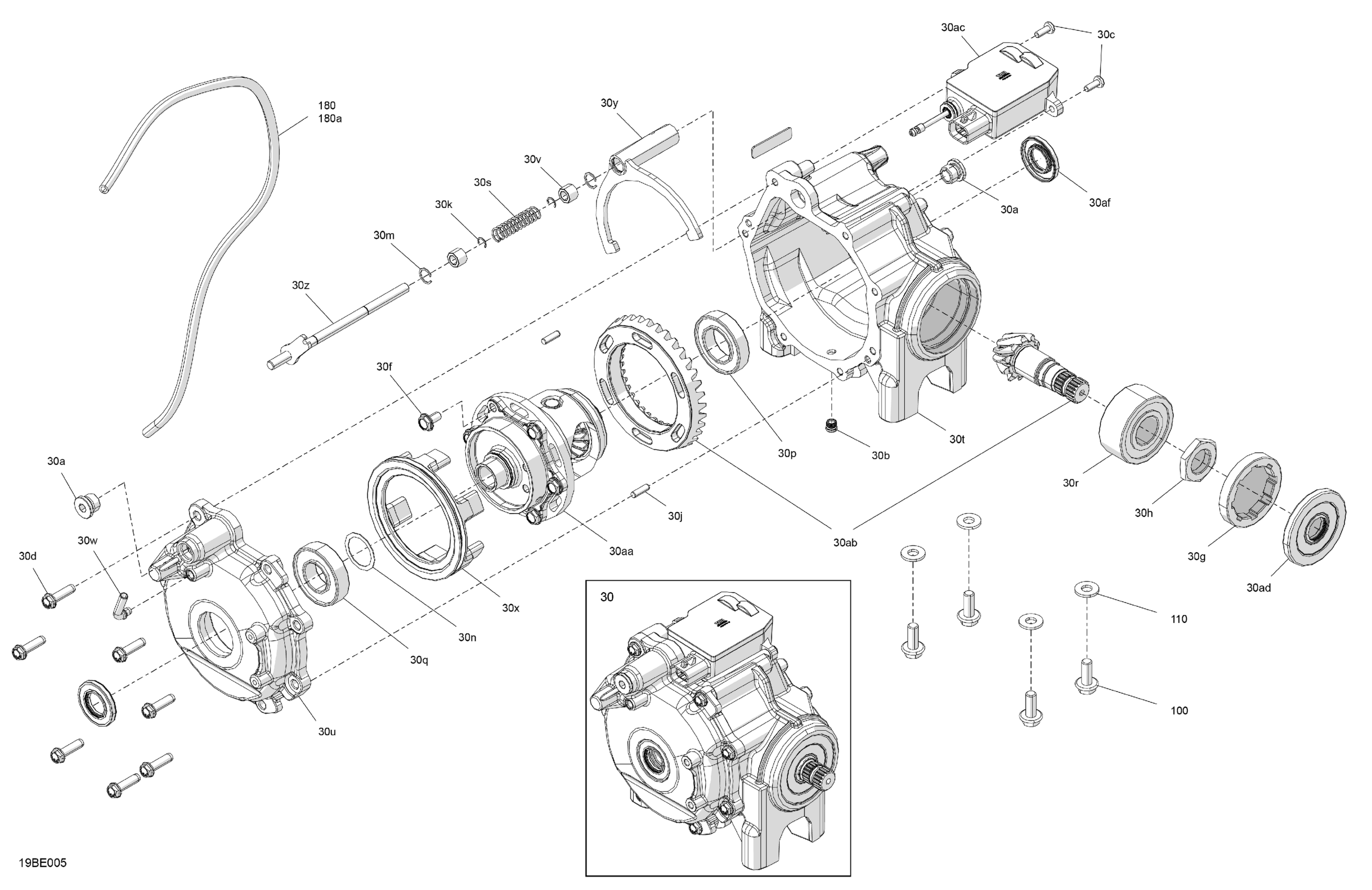

Can-Am CE - Maverick Trail - 700 - DPS SAS - 7HSE - Timeless Black Metallic - 50" Width, 2025 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30af

705403648

$1,451.99

30a

Fill Level Plug

705501889

$20.49

30b

Fill Level Plug M10

715900563

$27.49

30c

Torx Screw M6 X 16

705402845

$11.05

30d

Bolt

705501886

$7.69

30f

Custom Hex Screw Flange Head

715900798

$2.99

30g

Nut M75 X 1.5

705401819

$23.99

30h

Nut M27 X 1.5

705401820

$20.99

30j

Dowel Pin

715900559

$6.67

30k

Ring External Shaft

715900719

$28.99

30m

Ring, Internal Spiral Housing

715900720

$28.99

30n

Shim | 4X4

705401604

$57.99

30p

Ball Bearing

705402847

$49.99

30q

Ball Bearing | 4X4

705401606

$51.99

30r

Ball Bearing

715900721

$67.99

30s

Spring

715900722

$71.99

30t

Cover

715900733

$134.99

30u

Case

715900734

$164.99

30v

Bushing

715900725

$19.99

30w

Vent Valve

705401935

$16.49

30x

Ring Gear Connector

715900819

$184.99

30y

Disconnect Fork

715900727

$83.99

30z

Shift Rail

715900728

$31.99

30aa

Differential Sub-Assembly

715900735

$708.99

30ab

Ring Gear And Pinion Set

715900820

$419.99

30ac

Actuator

715900953

$234.99

30ad

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

30af

Oil Seal

705401836

$7.51

100

Hex. Flange Screw M10 X 25

207502546

$2.11

110

Conical Spring Washer 10 mm

234201474

$1.69

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

180a

Not Available As Spare Parts

XXX

Unavailable
