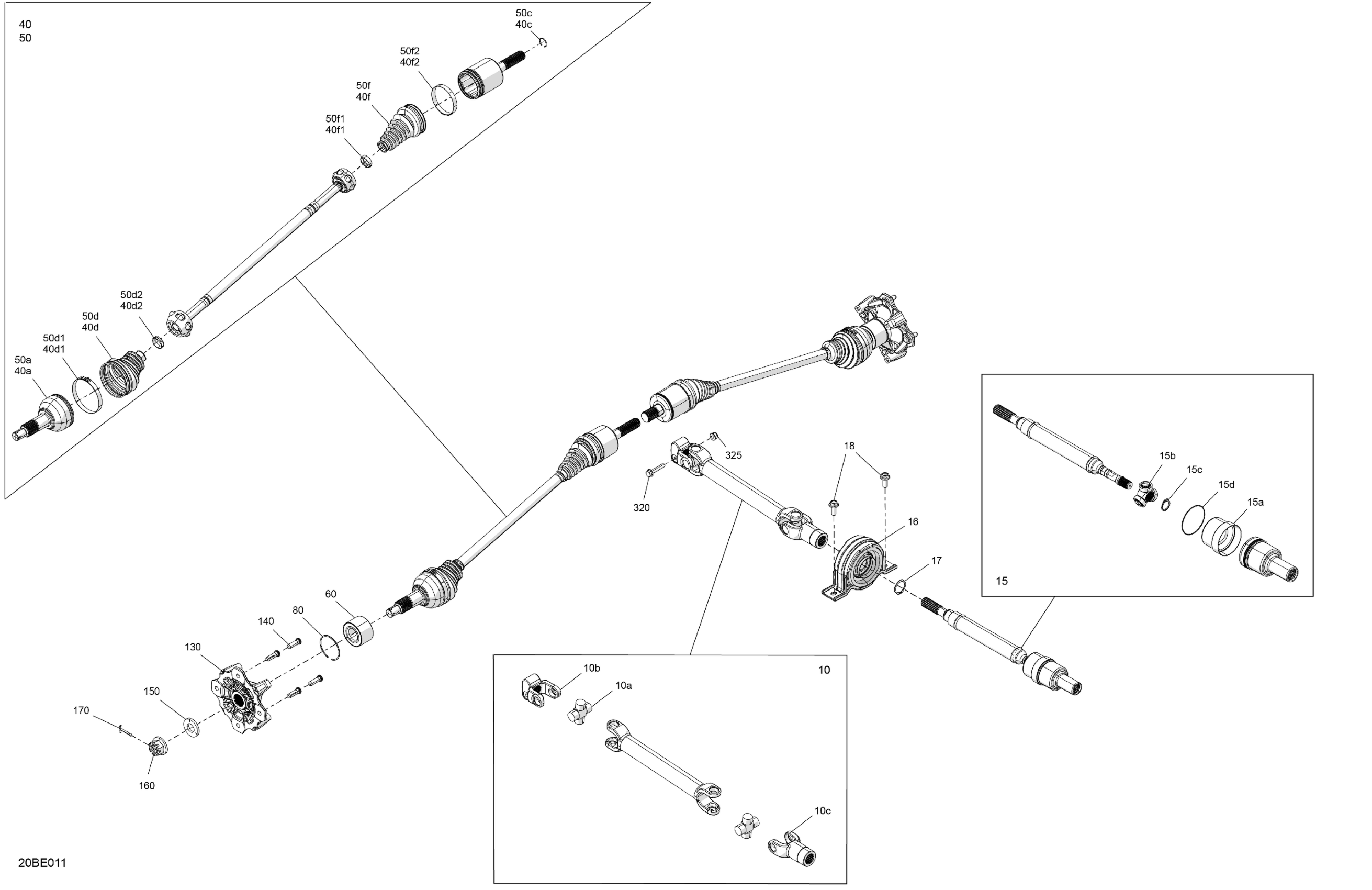

Can-Am CE - Maverick Trail - 700 - DPS SAS - 7HSE - Timeless Black Metallic - 50" Width, 2025 Drive - Front - Common Parts Diagram

Drive Axle Ass'y | Includes 10 to 10c

705403289

$244.58

U-Joint Cross Kit

715900829

$78.43

Fixed Yoke

715900400

$59.97

Yoke

715900401

$36.89

Drive Axle Ass'y | Includes 15 to 15d

705403017

$249.20

Dust cover | Not shown

219800426

$27.66

Three Pin Joint | Not shown

219800433

$32.28

Circlip | Not shown

219800427

$1.26

O-Ring | Not shown

219800429

$6.45

Ball Bearing Ass'y

705403522

$46.12

Snap Ring

293370098

$3.11

Hex. Flange Screw M10 X 20

207502046

$1.74

RH Front CV Joint Ass'y | Includes 40 to 40f2

705403007

$233.82

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

Circlip Joint | Not shown

705401349

$5.38

Boot Kit, Wheel Side

705401345

$41.51

Oetiker Clamp

715900282

$4.39

Oetiker Clamp, Small

715900283

$4.39

Boot Kit, Différential Side

705401355

$41.51

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Large

715900262

$7.84

LH Front CV Joint Ass'y | Includes 50 to 50f2

705403008

$233.82

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

Circlip Joint | Not shown

705401349

$5.38

Boot Kit, Wheel Side

705401345

$41.51

Oetiker Clamp

715900282

$4.39

Oetiker Clamp, Small

715900283

$4.39

Boot Kit, Différential Side

705401355

$41.51

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Large

715900262

$7.84

Ball Bearing

293350150

$51.93

Circlip

293370019

$4.98

Wheel Hub

705502338

$115.35

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

Conical Spring Washer M20

250200170

$11.00

Castle Nut M20

250100193

$6.66

Cotter Pin

250400084

$1.79

Hex. Flange Screw M8 X 42

250001050

$0.95

Hex. Elastic Flange Nut M8

233281416

$1.25
