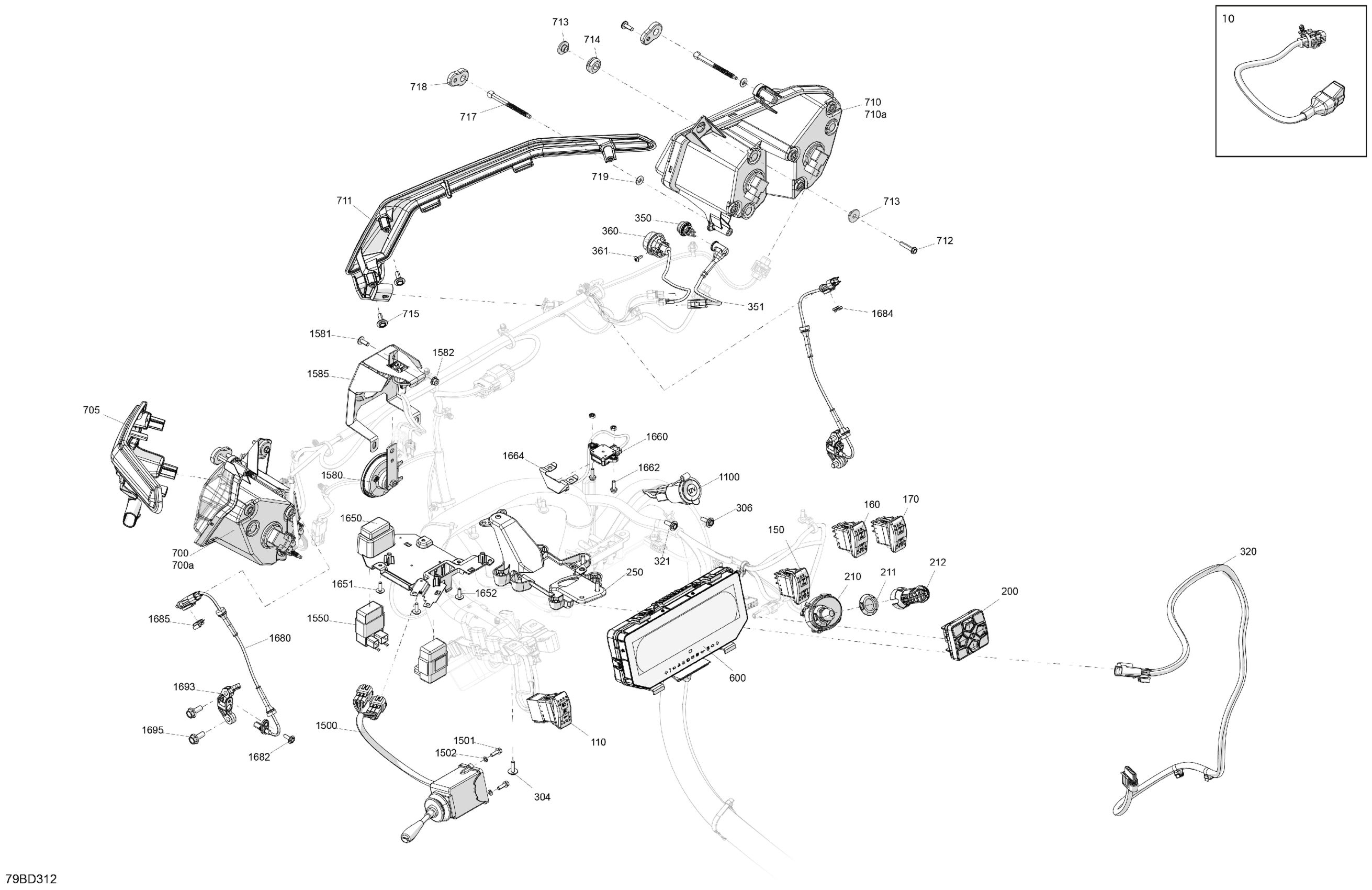

Can-Am CE - Maverick Trail 700 - DPS - 7HRE - Fiery Red Metallic - 50" Width ABS, 2024 Electric - Front Section Diagram

Description

Price

Wiring Harness

710007655

$26.99

110

Hazard Lights Switch

710006107

$19.49

150

Switch 2X4

710005489

$31.99

160

Differential Lock Switch

710005470

$46.49

170

Switch HDC

710006553

$24.99

200

Multifonction Switch

710006650

$87.99

210

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

211

Specialized Nut

278004274

$3.28

212

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

214

Start-Stop Button | Not Shown

710005213

$60.49

250

Housing Support

710005672

$10.49

304

Screw PT Type K-50 X 16

250000959

$2.11

306

Screw PT Type K-50 X 16

250000959

$2.11

320

Trottle Pedal Harness

710005929

$239.99

321

Screw PT Type K-50 X 16

250000959

$2.11

350

Day Light | Europe

710001726

$35.99

351

Position Light Harness

710005676

$15.49

360

Flasher | Europe

710002964

$35.99

361

Torx Truss Screw M6 X 16

250000721

$1.69

600

MID Multifunction Gauge

710008295

$379.99

700

LH Headlamp | Includes 700 to 700a

710008230

$199.99

700a

Bulb 12V 55W

715900141

$41.49

705

LH Fascia Trim

705011485

$43.99

710

RH Headlamp | Includes 710 to 710a

710008231

$199.99

710a

Bulb 12V 55W

715900141

$41.49

711

RH Fascia Trim

705011486

$43.99

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

713

Shoulder Bushing

710004749

$2.69

714

Overmolded Grommet

293720130

$4.69

715

Screw PT Type K-50 X 16

250000959

$2.11

717

Ajustment Screw

710005837

$6.35

718

Ball Socket

293900157

$9.59

719

O-Ring

293300192

$4.92

1100

12V Power Outlet

710005374

$33.99

1500

Turn Signal | Europe

710001721

$209.99

1501

Hex. Forming Screw M5 X 16

210251650

$1.15

1502

Lock Washer 5 mm | Europe

234151401

$0.55

1550

Flasher Unit

710003239

$78.49

1580

Horn

710004791

$38.99

1581

Torx Truss Screw M6 X 16

250000721

$1.69

1582

Hex. Flange Elastic Nut M6

233261494

$1.58

1585

Horn Bracket

710006055

$65.99

1650

Support Connector

710006056

$6.49

1651

Screw PT Type K-50 X 16

250000959

$2.11

1652

Screw PT Type K-50 X 16

250000959

$2.11

1660

Yaw Rate Sensor

710005658

$179.99

1662

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

1664

Yaw Sensor Support

710006501

$34.99

1680

Speed Sensor

710006981

$83.99

1682

Screw PT Type K-50 X 16

250000959

$2.11

1684

Clip Bracket Connector (edge)

409210100

$2.09

1685

Clip

710001038

$5.39

1693

ABS Sensor Support

710008185

$10.49

1695

Hex Screw Washer Head M8 X 20

207582054

$3.17
