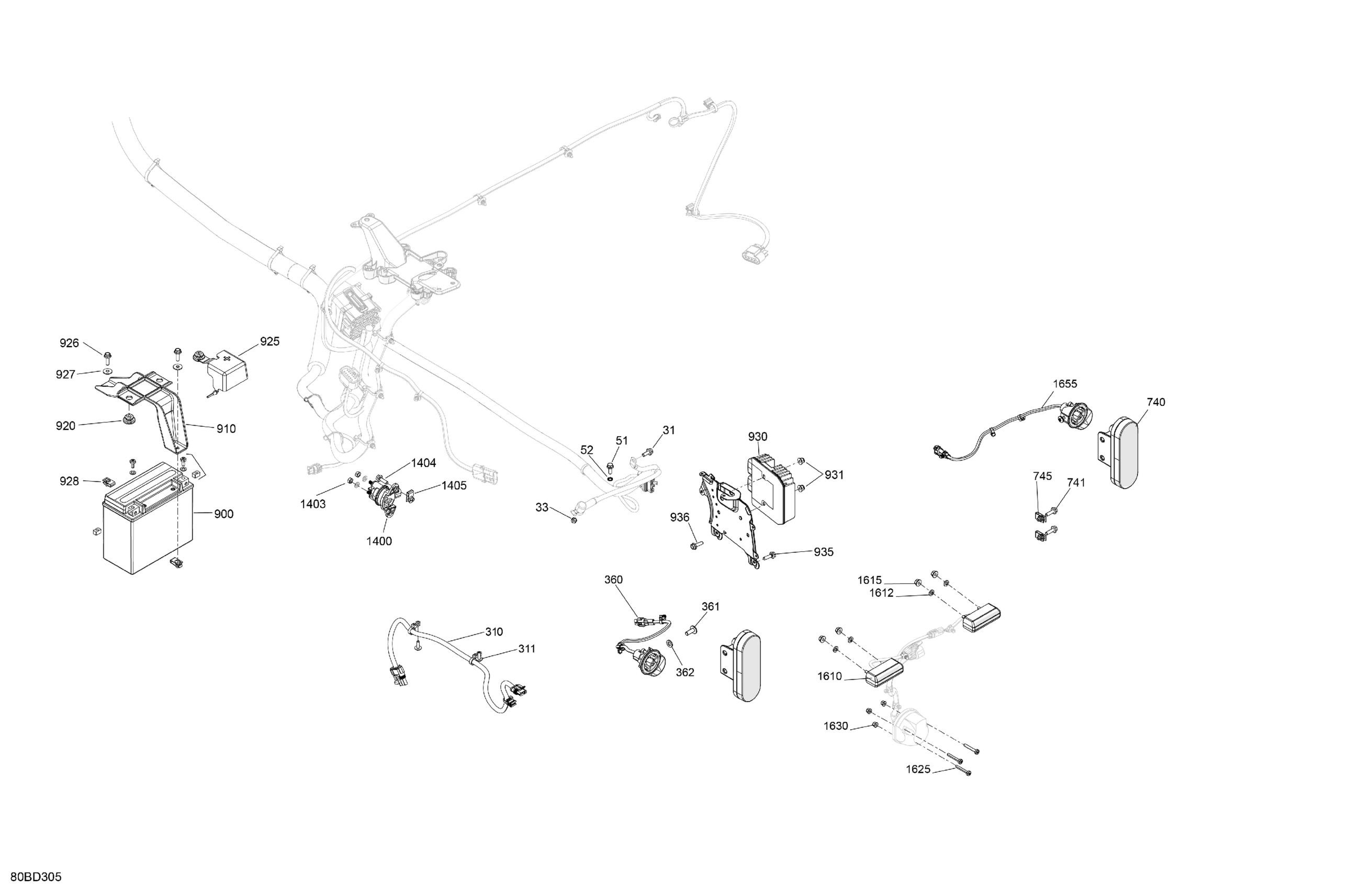

Can-Am CE - Maverick Trail 700 - BASE - 7RRC - Catalyst Gray - 50" Width, 2024 Electric - Rear Section Diagram

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

Elastic Stop Nut M6, Brass

232561200

$4.19

Elastic Stop Nut M6, Brass

232561200

$4.19

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

External Serrated Lock Washer 6 mm

234461608

$1.49

Rear Harness

710006551

$43.99

Screw PT Type K-50 X 16

250000959

$2.19

Flasher | Europe

710002964

$34.30

Torx Truss Screw M6 X 16

250000721

$1.69

Flat Washer 6 mm

234061410

$1.49

Tail Light

710004257

$91.99

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.19

Panel Nut M6 X 1.0

250100198

$2.19

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

$149.95

Washer | Not Shown

710009082

$0.99

Screw | Not Shown

710009084

$1.48

Fixation Plate

710005673

$13.49

Stopper Rubber

705014429

$6.09

Battery Cable Cap

710005930

$10.49

Hex. Flange Screw M6 X 20

207662054

$1.49

Stainless Steel Flat Washer

234062670

$2.19

Panel Nut M6 X 1.0

250100198

$2.19

Voltage Regulator

710005842

$189.99

Hex. Flange Elastic Nut M6

233261494

$1.59

Rear Accessory Support | Not Shown

710008760

$34.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

Hex Screw Washer Head M8 X 20

207582054

$3.29

Starter Relay

278003012

$43.99

Elastic Stop Nut M6, Brass

232561200

$4.19

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.19

Panel Nut M6 X 1.0

250100198

$2.19

Light | Includes 220j to 220j1

710008467

$59.67

Lock Washer Helical M6

234161601

$1.49

Hex. Elastic Flange Nut M6

233161464

$1.49

Phillips Screw M5 X 35

208653560

$2.12

Flange Elastic Nut M5

233251434

$2.09

Trailer Wiring Harness

710007067

$119.99
