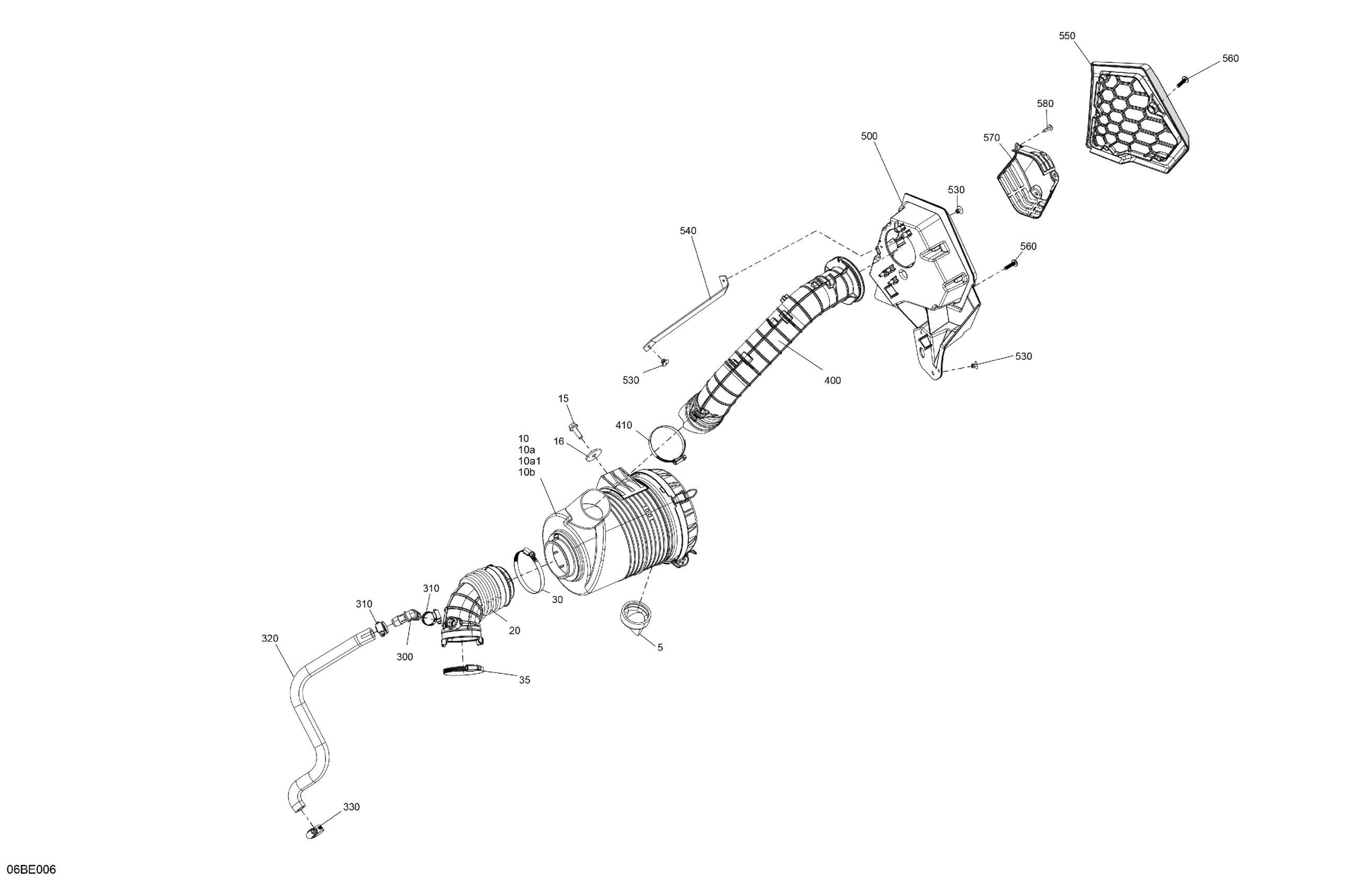

Can-Am CE - Maverick Trail - 1000 - DPS SAS - 7FSJ - Timeless Black Metallic - 50" Width, 2025 Engine - Air Intake Diagram

Description

Price

Duct Bill Valve

715003114

$12.91

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$175.35

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$87.66

10a1

O-Ring

715900514

$17.66

10b

Air Filter

715900394

$50.34

Hex. Flange Screw M8 X 25

207682544

$0.90

Flat Washer M8

250200158

$1.74

Air Intake Adapter

707800715

$27.66

Norma Clamp

293650096

$3.09

Norma Clamp

293650091

$4.60

300

Elbow Fitting 90

293710155

$8.45

310

Tridon Gear Clamp

293650173

$2.46

320

Formed Crankcase Hose

707801106

$27.66

330

Tridon Gear Clamp

293650173

$2.46

400

Inlet Hose

707800717

$46.12

410

Norma Clamp

293650091

$4.60

500

Air Intake Box

707800865

$36.89

530

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

540

Duct Support

707801109

$5.52

550

Air Intake Grid

707800751

$46.12

560

Hex. Screw Pt K60 X 25

250000980

$1.74

570

Baffle

707800762

$16.89

580

Torx Screw K50 X 16

250000720

$1.39
