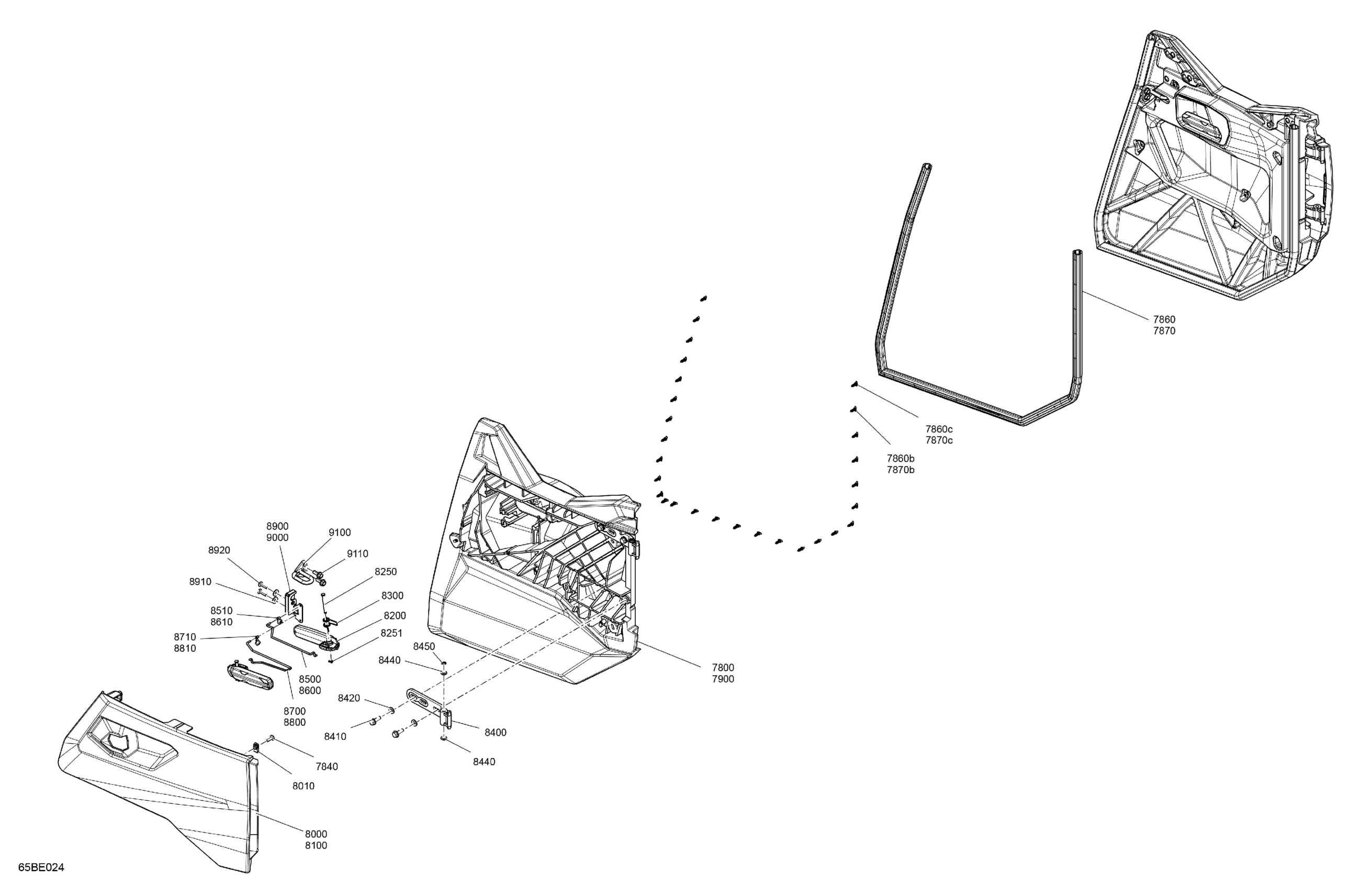

Can-Am CE - Maverick Sport Max - 1000R EFI - DPS SAS - 9JSC - Timeless Black Metallic - 60" Width, 2025 Enclosure Cab - Doors Diagram

Description

Price

7800

LH Rear Door Ass'y

715009733

$199.97

7840

Torx Screw M6 X 20

250000722

$1.34

7860

LH Rear Door Gasket Ass'y | Includes 7860 to 7860c

293250505

$78.43

7860b

Natural Color, Dart

293730081

$2.75

7860c

Red, Dart

293730082

$2.75

7870

RH Rear Door Gasket Ass'y | Includes 7870 to 7870c

293250506

$78.43

7870b

Natural Color, Dart

293730081

$2.75

7870c

Red, Dart

293730082

$2.75

7900

RH Rear Door Trim Ass'y

715009734

$373.82

8000

Timeless Black, LH Rear Door Panel

705015618

$229.20

8010

Panel Nut M6 X 1.0

250100198

$1.73

8100

Timeless Black, RH Rear Door Panel

705015619

$232.28

8200

Door Handle

705017152

$13.52

8250

Handle Axle

705207440

$11.54

8251

External Retaining Ring

705601875

$4.06

8300

Handle Spring

705013062

$13.83

8400

Hinge

705013228

$27.66

8410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

8420

Washer

503192494

$3.11

8440

Flat Washer 8 mm, Nylon

234081100

$1.00

8450

Circlip | RS STD

705601030

$4.12

8500

LH Rear Door Upper Locking Rod

705207152

$23.05

8510

RH Tie Rod Clip

708300202

$2.31

8600

RH Rear Door Upper Locking Rod

705207153

$23.05

8610

RH Tie Rod Clip

708300202

$2.31

8700

LH Rear Door Lower Locking Rod

705207154

$23.05

8710

RH Tie Rod Clip

708300202

$2.31

8800

RH Rear Door Lower Locking Rod

705207155

$23.05

8810

RH Tie Rod Clip

708300202

$2.31

8900

LH Latch

705013758

$55.35

8910

Stainless Steel Flat Washer

234062670

$1.74

8920

Torx Truss Screw M6 X 25

250000807

$1.74

9000

RH Latch

705013759

$55.35

9100

LH Door Striker

705211581

$27.66

9110

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39
