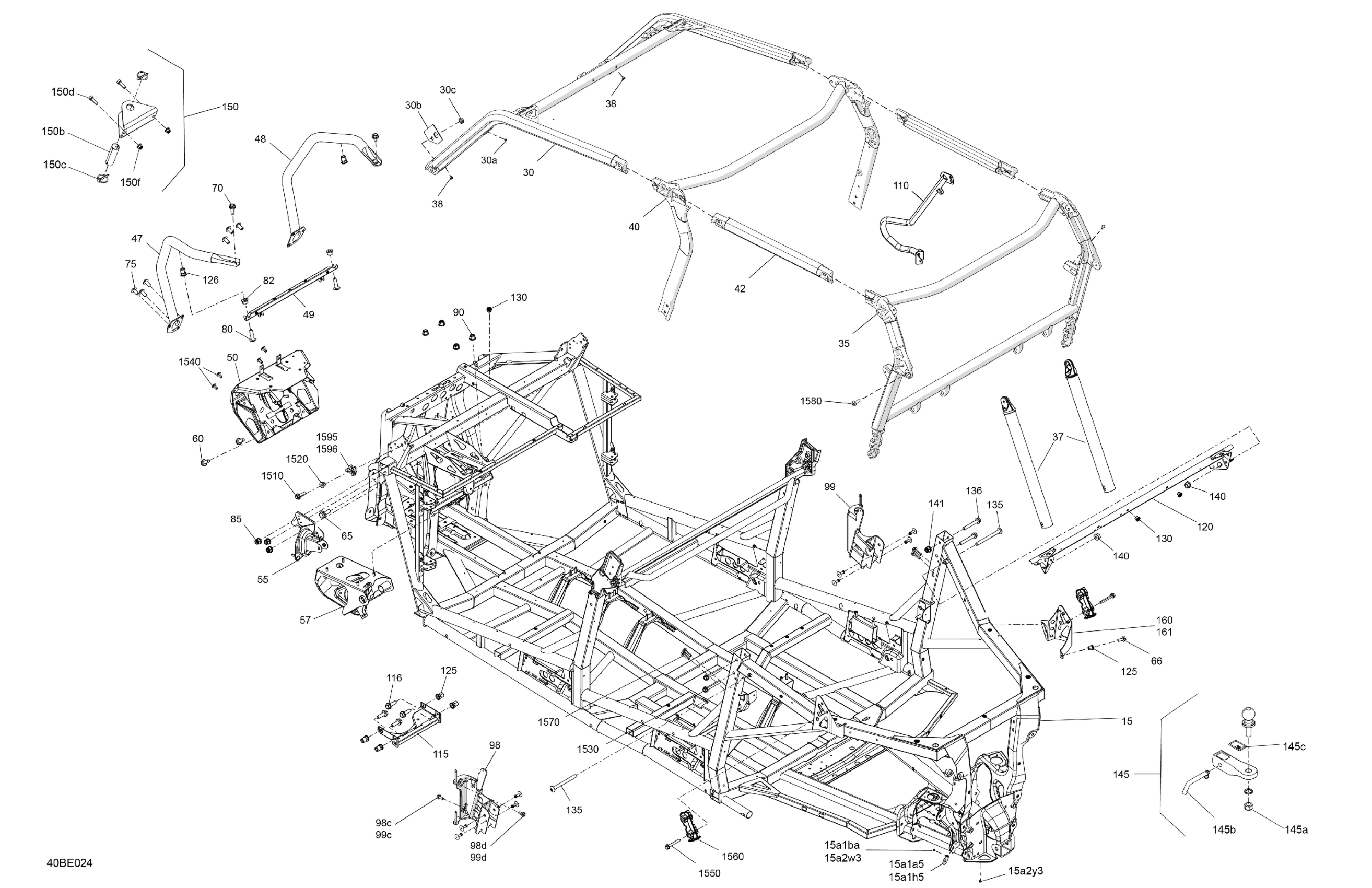

Can-Am CE - Maverick Sport Max - 1000R EFI - DPS SAS - 9JSC - Timeless Black Metallic - 60" Width, 2025 Frame - System Diagram

#

Description
Price

15

Chassis Ass'y | Includes 15 to 15a2y3

715008770

$2,969.99

15a1a5

Shim

705209479

$3.05

15a1h5

Shim

705209479

$3.05

15a1ba

Pop Rivet 3/16 X ,425

293150293

$0.26

15a2w3

Pop Rivet 3/16 X ,425

293150293

$0.26

15a2y3

Pop Rivet 3/16 X ,425

293150293

$0.26

30

Deep Black, Front Cage Kit | Includes 30 to 30c

715009362

$619.99

30a

Pop Rivet 3/16 X ,425

293150293

$0.26

30b

Shim

705210164

$11.83

30c

Bushing

705210165

$36.89

35

Deep Black, Rear Cage Ass'y

715009349

$619.99

37

Deep Black, Rear Cage Extension

705211125

$44.99

38

Insert Half Hex Body M6 x 1.0

250100199

$2.54

40

Mid Cage Max

703501203

$519.99

42

Deep Black, Cage Extension

705209848

$41.99

47

LH Front Bumper

705206303

$110.74

48

RH Front Bumper

705206308

$110.74

49

Cross Member

705206313

$36.89

50

Deep Black, Front Bumper

705209043

$474.58

55

Brake Support

705206217

$50.74

57

DPS Support

705206294

$66.12

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

66

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

75

Torx Truss Screw M8 X 16

250000746

$2.78

80

Hex Torx Truss M8 X30

250000745

$3.05

82

Bushing

705207229

$11.54

85

Hex. Elastic Flange Nut M8

233281416

$1.25

90

Hex. Elastic Flange Nut M8

233281416

$1.25

98

LH Male Door Hinge Ass'y | Includes 98 to 98d

705211564

$444.58

98c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

98d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

99

RH Male Door Hinge Ass'y | Includes 99 to 99d

705211565

$444.58

99c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

99d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

110

RH Protector Tube (Sandtex Black)

705207629

$69.20

115

Bearing Support

705211563

$45.35

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

120

Central Tube

705209434

$146.89

125

Insert Half Hex Body M8 x 1.25

293450307

$2.03

126

Insert Half Hex Body M8 x 1.25

293450307

$2.03

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Torx Truss M8 X 90

250000806

$6.15

136

Torx Screw M6 X 70

250000954

$1.56

140

Hex. Flange Nut

233081436

$1.63

141

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

145

Drawbar Ass'y | Includes 230 to 230c

705208230

$156.89

145a

Elastic Flange Nut M20

250100104

$9.71

145b

Hitch Pin

705204490

$54.58

145c

Hitch Approval Decal

704906897

$16.89

150

Front Anchorage Strap Ass'y | Includes 150 to 150f

705211695

$44.58

150b

Deep Black, Tube

705211696

$14.98

150c

Pin

605456518

Unavailable

150d

Socket Screw M10 x 30 | XT

205003044

$2.61

150f

Hex. Flange Elastic Nut M10

233201414

$1.26

160

LH Rear Anchorage Support

705211569

$18.43

161

RH Rear Anchorage Support

705211571

$18.43

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Flange Elastic Nut M10

233201466

$2.63

1530

Hex. Flange Screw M10 X 70

207607056

$3.38

1540

Torx Truss Screw M8 X 16

250000746

$2.78

1550

Hex. Flange Screw M8 x 60

207686044

$2.56

1560

Sleeve

705210648

$9.29

1570

Hex. Flange Screw M10 X 25

207502546

$1.74

1580

Torx Truss M/S M8 X 20

250000953

$1.74

1595

LH Front Anchorage

705209913

$35.35

1596

RH Front Anchorage

705209914

$35.35
