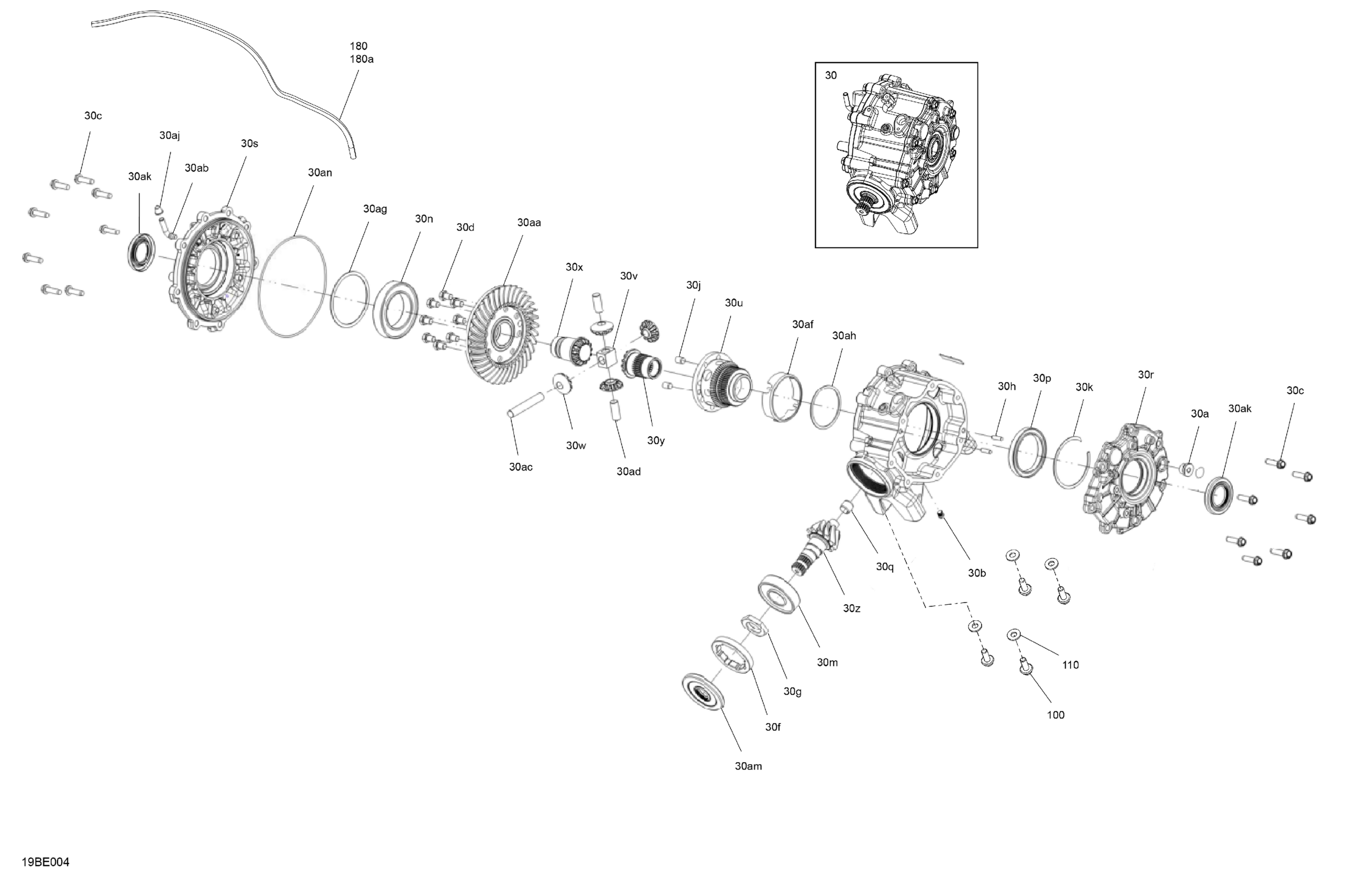

Can-Am CE - Maverick Sport - 1000R EFI - DPS SAS - 9GSE - Timeless Black Metallic - 60" Width, 2025 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30an

705403424

$1,197.73

30a

Fill Level Plug

705501889

$18.63

30b

Fill Level Plug M10

715900563

$25.34

30c

Bolt

705501886

$6.30

30d

Hex Screw 3/8 X 0.500

715900561

$12.64

30f

Nut M75 X 1.5

705401819

$22.36

30g

Nut M27 X 1.5

705401820

$19.37

30h

Dowel Pin

715900559

$6.16

30j

Dowell Pin

715900618

$17.88

30k

Retainin Ring

715900558

$23.85

30m

Ball Bearing

705401821

$29.82

30n

Ball Bearing 60 X 95 X 18

715900556

$40.27

30p

Ball Bearing 65 X 85 X 10

715900554

$87.28

30q

Plain Bearing 1615 DP4

715500495

$81.31

30r

RH Cover

715900685

$118.63

30s

LH Cover

715900686

$118.63

30u

Housing

715900617

$112.66

30v

Coupler, Pin

715900541

$60.42

30w

Pinion 10T

715900548

$82.06

30x

Gear 14T

715900546

$79.82

30y

Gear 14T

715900545

$79.82

30z

LH Pinion, 10T Spiral, Bevel

715500493

$183.55

30aa

Spiral Bevel Gear, 36T

715500494

$364.15

30ab

Vent Valve

705401935

$13.43

30ac

Pinion Pin 0.5 X 3.000

715900542

$17.88

30ad

Pinion Pin 0.5 X 1.250

715900543

$17.88

30af

Cross Pin Retainer

715900535

$26.09

30ag

Shim 74.50 X 66.00

715900539

$160.42

30ah

Shim 3.735 X 3.300

715900538

$246.99

30aj

Vent Cap 5/16

715900533

$6.30

30ak

Oil Seal

715900531

$24.60

30am

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$17.13

30an

O-Ring

715900530

$10.94

100

Hex. Flange Screw M10 X 25

207502546

$2.00

110

Conical Spring Washer 10 mm

234201474

$1.60

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

180a

Not Available As Spare Parts

XXX

Unavailable
