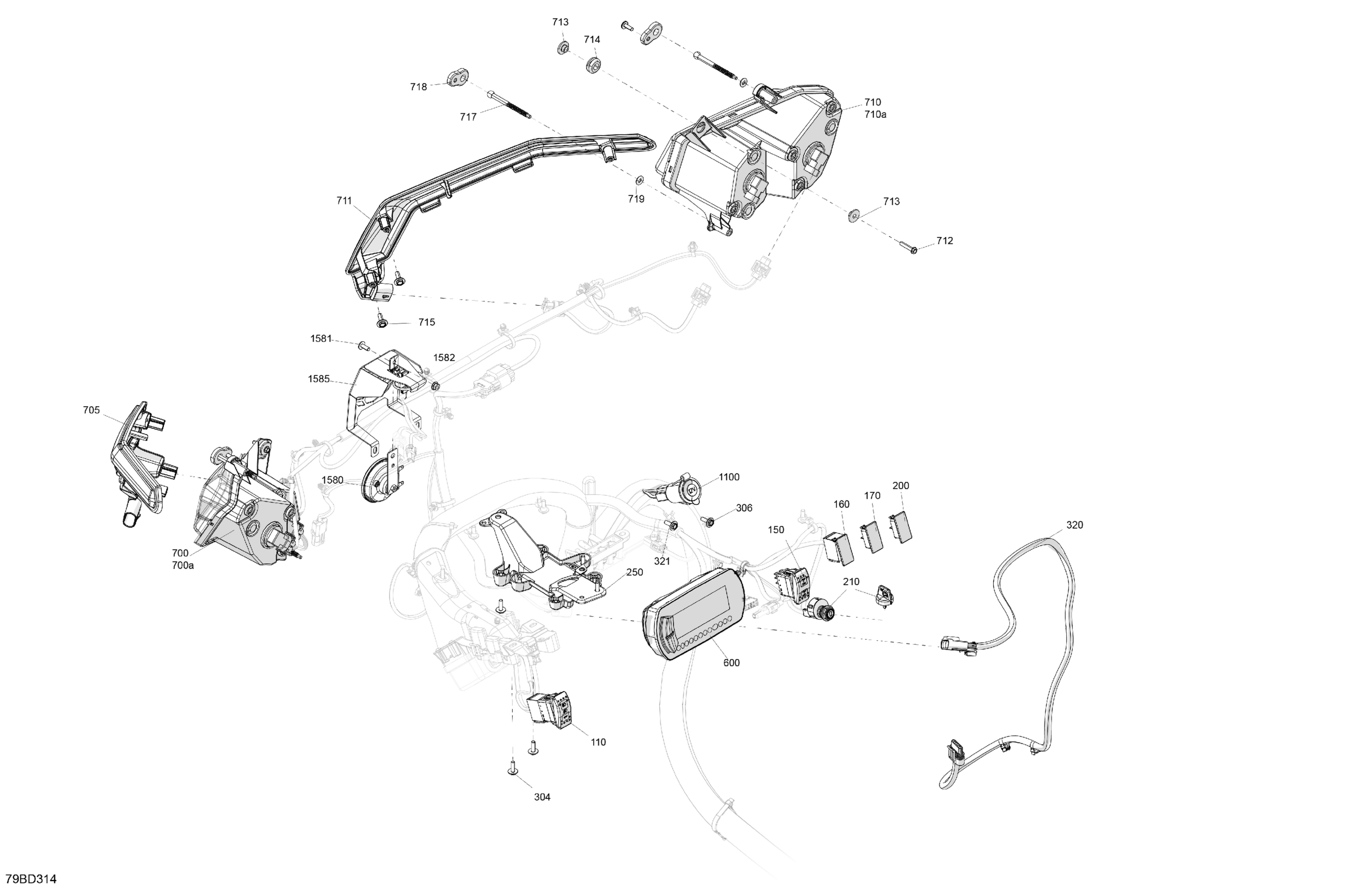

Can-Am CE - Maverick Sport 1000R - DPS - 9GRF - Fiery Red Metallic - 60" Width, 2024 Electric - Front Section Diagram

Description

Price

110

Light Switch

710004492

$44.00

150

Switch 2X4

710005489

$29.82

160

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

200

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

205

Specialized Nut

710007923

$1.99

210

Ignition Switch | Includes 210 to 210b

710007324

$61.16

250

Housing Support

710005672

$7.81

304

Screw PT Type K-50 X 16

250000959

$2.00

306

Screw PT Type K-50 X 16

250000959

$2.00

320

Trottle Pedal Harness

710005929

$211.91

321

Screw PT Type K-50 X 16

250000959

$2.00

600

Multifunction Compact Gauge

710008296

$362.66

700

LH Headlamp | Includes 700 to 700a

710008230

$177.58

700a

Bulb 12V 55W

715900141

$38.78

705

LH Fascia Trim

705011485

$39.52

710

RH Headlamp | Includes 710 to 710a

710008231

$177.58

710a

Bulb 12V 55W

715900141

$38.78

711

RH Fascia Trim

705011486

$39.52

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

713

Shoulder Bushing

710004749

$2.69

714

Overmolded Grommet

293720130

$4.25

715

Screw PT Type K-50 X 16

250000959

$2.00

717

Ajustment Screw

710005837

$5.90

718

Ball Socket

293900157

$7.88

719

O-Ring

293300192

$3.81

1100

12V Power Outlet

710005374

$31.31

1580

Horn

710004791

$36.54

1581

Torx Truss Screw M6 X 16

250000721

$1.60

1582

Hex. Flange Elastic Nut M6

233261494

$1.45

1585

Horn Bracket

710006055

$58.93
