Description

Price

10

English Operator Guide

219002317

Unavailable

20

Tool Kit | Includes 20 to 20h

704700179

$70.99

20c

Socket Wrench 14/16MM

529000085

$6.55

20g

Screw Driver

529000021

$3.19

20h

Torx Key T30

708200340

$8.94

35

Adjustment Wrench

529000057

$4.29

100

Front Fascia

705011317

$241.01

110

Torx Truss Screw M6 X 16

250000721

$1.60

120

Panel Nut M6 X 1.0

250100198

$1.99

150

Torx Screw M6 X 45

250000748

$1.79

200

Fascia Removable Grid

705011318

$196.99

210

Clip

517306478

$1.03

500

LH Headlamp Structure

705011319

$206.69

510

Torx Screw M6 X 20

250000722

$1.54

530

Panel Nut M6 X 1.0

250100198

$1.99

540

Screw PT Type K-50 X 16

250000959

$2.00

600

RH Headlamp Structure

705011320

$206.69

700

Fiery Red, LH Front Fender

705018104

$184.30

710

Torx Truss Screw M6 X 16

250000721

$1.60

730

Panel Nut M6 X 1.0

250100198

$1.99

740

Clip

517306478

$1.03

750

Flat Washer M6.6 X 22

250200162

$2.19

760

Support Plate

705003841

$0.91

770

Torx Screw M6 X 20

250000722

$1.54

800

Fiery Red, RH Front Fender

705018105

$368.63

900

Removable Hood

705011322

$95.49

910

Clip

517306478

$1.03

930

Torx Truss Screw M6 X 25

250000807

$2.00

940

Bushing

705502616

$8.24

1000

LH Front Mudguard

705011323

$52.96

1010

Torx Screw M6 X 20

250000712

$2.00

1020

Hex. Flange Elastic Nut M6

233261494

$1.45

1040

Torx Truss Screw M6 X 16

250000721

$1.60

1050

Clip

517306478

$1.03

1070

Tuflok Plastic Rivet

293150230

$1.39

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

1085

Stainless Steel Flat Washer

234062670

$2.00

1090

Panel Nut M6 X 1.0

250100198

$1.99

1100

RH Front Mudguard

705011324

$52.96

1200

LH Front Rocker Panel

705019026

$71.61

1210

Panel Nut M6 X 1.0

250100198

$1.99

1220

Pop Rivet 3/16”

293150101

$2.00

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

1250

Flat Washer M6.6 X 22

250200162

$2.19

1300

RH Front Rocker Panel

705019027

$71.61

3800

LH Front Mud Guard

705019029

$52.96

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

3820

Tuflok Plastic Rivet

293150230

$1.39

3900

RH Front Mud Guard

705019028

$12.75

4200

Hinge Cover

705012703

$13.09

9300

Front Mud Flap Model T

705012793

$52.21

9310

Tuflok Plastic Rivet

293150230

$1.39

9600

LH Front Flasher Support Model T

705012791

$54.45

9610

Tuflok Plastic Rivet

293150230

$1.39

9640

Stainless Steel Flat Washer

234082670

$2.00

9700

RH Front Flasher Support Model T

705012792

$54.45

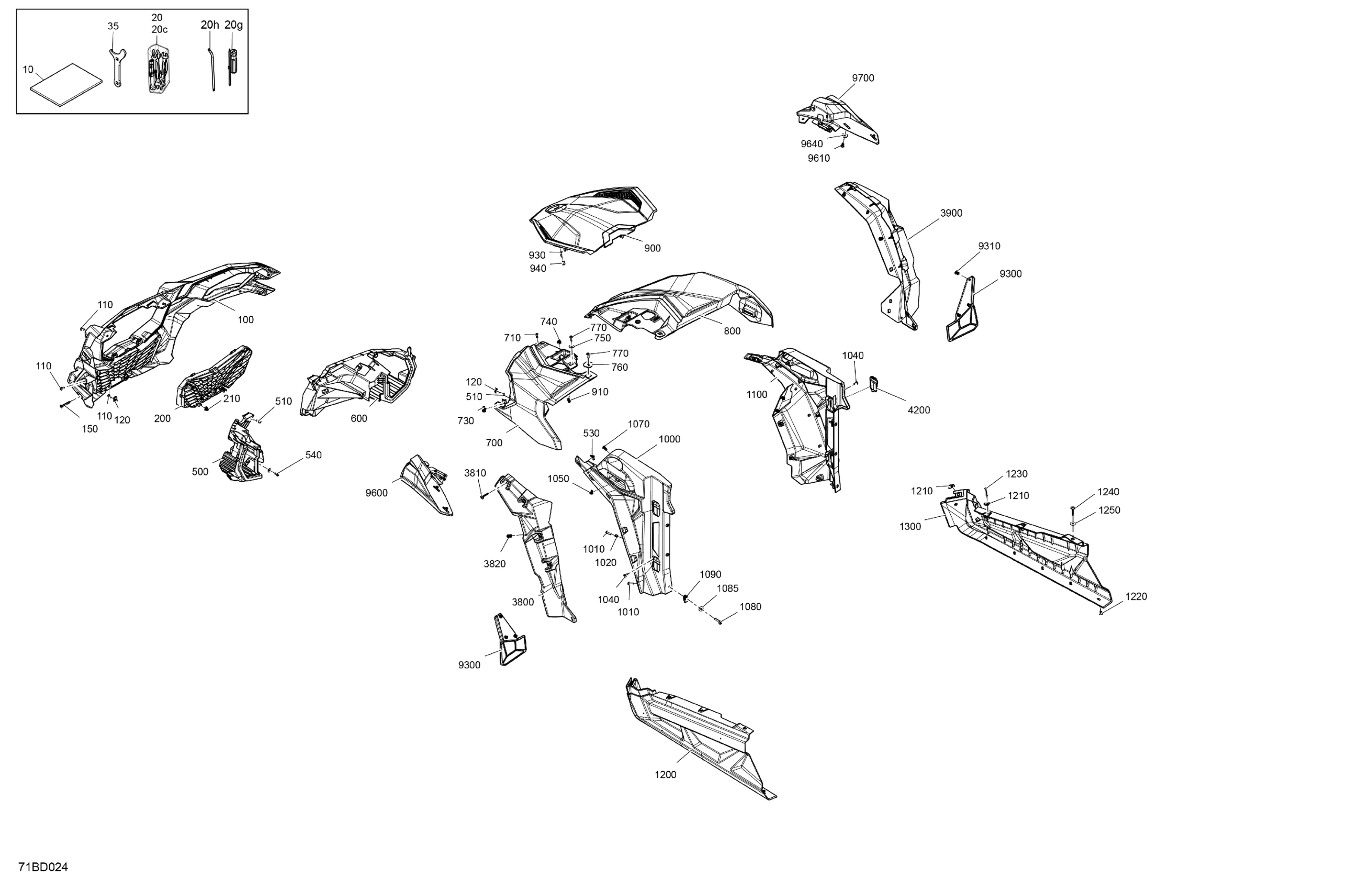

Can-Am CE - Maverick Sport 1000R - DPS - 9GRE - Fiery Red Metallic - 60" Width ABS, 2024 Body - Front Section Diagram

English Operator Guide

Tool Kit | Includes 20 to 20h

Socket Wrench 14/16MM

Screw Driver

Torx Key T30

Adjustment Wrench

Front Fascia

Torx Truss Screw M6 X 16

Panel Nut M6 X 1.0

Torx Screw M6 X 45

Fascia Removable Grid

Clip

LH Headlamp Structure

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Screw PT Type K-50 X 16

RH Headlamp Structure

Fiery Red, LH Front Fender

Torx Truss Screw M6 X 16

Panel Nut M6 X 1.0

Clip

Flat Washer M6.6 X 22

Support Plate

Torx Screw M6 X 20

Fiery Red, RH Front Fender

Removable Hood

Clip

Torx Truss Screw M6 X 25

Bushing

LH Front Mudguard

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Torx Truss Screw M6 X 16

Clip

Tuflok Plastic Rivet

Torx Truss Hex. Screw M6X35, Nylon Patch

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

RH Front Mudguard

LH Front Rocker Panel

Panel Nut M6 X 1.0

Pop Rivet 3/16”

Torx Truss Hex. Screw M6X35, Nylon Patch

Torx Truss Screw Head PT.K50 X 40

Flat Washer M6.6 X 22

RH Front Rocker Panel

LH Front Mud Guard

Torx Truss Screw Head PT.K50 X 40

Tuflok Plastic Rivet

RH Front Mud Guard

Hinge Cover

Front Mud Flap Model T

Tuflok Plastic Rivet

LH Front Flasher Support Model T

Tuflok Plastic Rivet

Stainless Steel Flat Washer

RH Front Flasher Support Model T
