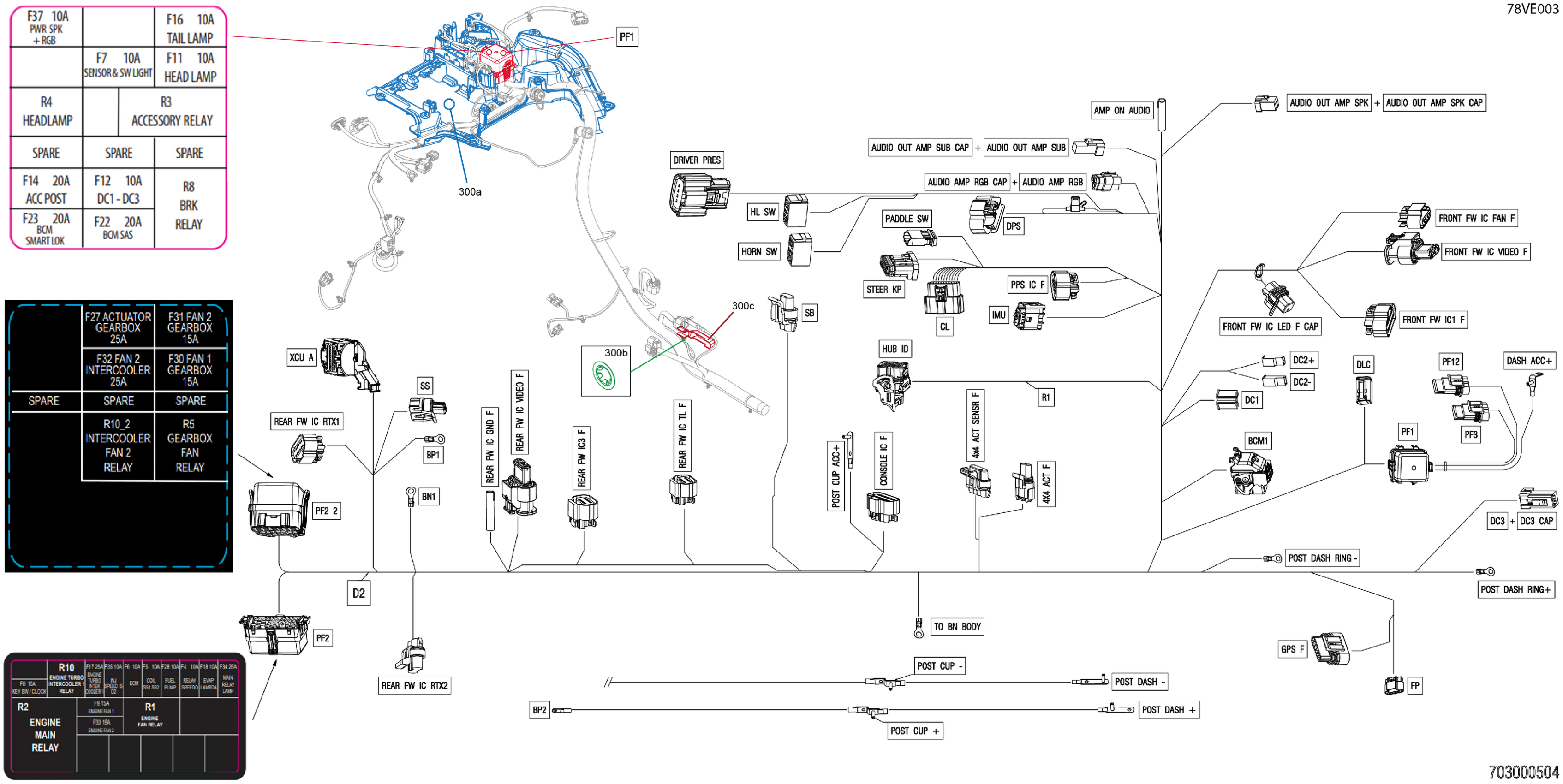

300

Main Wiring Harness Long

710009624

$876.89

300a

Fuse Holder Support

710007735

$50.74

300b

Push Lock Washer

710008059

$12.91

300c

Battery Cable Cap

710008942

$6.45

4X4 ACT SENSR F

Female Terminal Housing, 3 Circuits

278003442

$8.29

4X4 ACT SENSR F

Lock

710005868

$3.68

4X4 ACT SENSR F

Wire Seal

710001163

$5.10

4X4 ACT SENSR F

Female Terminal

710001164

$5.92

4X4 ACT F

Male Connector, 2 Circuits

278000220

$11.02

4X4 ACT F

Wire Seal

278001065

$6.03

4X4 ACT F

Female Terminal

278000223

$2.55

AMP ON AUDIO

Insulated Sheath

278000770

$7.60

AMP ON AUDIO

Female Terminal

710000421

$5.46

AMP ON AUDIO

Female Terminal

710000421

$5.46

AUDIO AMP RGB

Female Terminal Housing, 3 Circ.

710000153

$10.14

AUDIO AMP RGB

Wire Seal

710000402

$4.42

AUDIO AMP RGB

Female Terminal

409012100

$3.73

AUDIO AMP RGB CAP

Cap

710000080

$6.48

AUDIO OUT AMP SPK

Connector_JST Female 8 Cavities

710007945

$17.66

AUDIO OUT AMP SPK

Female Terminal

515177185

$8.35

AUDIO OUT AMP SUB

Housing

515177179

$12.32

AUDIO OUT AMP SUB

Female Terminal

515177185

$8.35

AUDIO OUT AMP SUB CAP

Housing

515177178

$13.68

BCM1 LT

Seal Joint

710007620

$6.52

BCM1 LT

Seal Joint

710007619

$6.52

BCM1 LT

Femal Terminal

710007658

$5.78

BCM1 LT

Femal Terminal

710007623

$2.23

BCM1 MT

Plug

710001593

$2.12

BCM1 MT

Female Terminal

710001727

$2.55

BCM1 ST

Cover, 48 positions

710001591

$10.05

BCM1 ST

Front PT Housing

710007627

$23.05

BCM1 ST

Plug

710001592

$2.12

BCM1 ST

Terminal

710001728

$5.91

BCM1 ST

Female Terminal

710001589

$1.79

BN1

Open Barrel Terminal

278001392

$4.12

BP1

Shrink Tubing, 6 mm

515177246

$1.02

BP1

Open Barrel Terminal

278001392

$4.12

BP2

Cap Battery Cable

710007033

$6.45

CL

Female Molex Connector 20 Cavities

515179227

$15.23

CL

Sealing Cap

278002860

$1.42

CL

Female Terminal 22 AWG

515178349

$1.82

CONSOLE IC F

Housing

710001226

$11.83

CONSOLE IC F

Lock Connector

710007935

$10.14

CONSOLE IC F

Lock

710001222

$1.68

CONSOLE IC F

Cap

710001225

$7.27

CONSOLE IC F

Seal

710001233

$2.55

CONSOLE IC F

Terminal

710001229

$3.02

D2

Diode

409012700

$10.83

DASH ACC+

Folded Terminal Eyelet

710006749

$10.14

DC1

Housing

710005373

$4.62

DC1

Terminal

710005518

$1.37

DC2-

Female Terminal Housing, 1 Circuit

409010400

$7.48

DC2-

Female Terminal

409010100

$5.46

DC2+

Female Terminal Housing, 1 Circuit

409010400

$7.48

DC2+

Female Terminal

409010100

$5.46

DC3

Female Housing, 2 Circuits

515175658

$15.35

DC3

Female Terminal

515175231

$4.12

DC3 CAP

Male Housing, 2 Circuits

710000667

$7.48

DLC

Female Housing 6 Circuits

710002706

$16.22

DLC

Lock

710002705

$3.61

DLC

Female Terminal

710005439

$4.28

DLC

Female Terminal

710005438

$4.00

DPS

Female Housing

710004989

$7.22

DPS

Lock | PACKARD 15430900

710005098

$1.54

DPS

Lock

710001222

$1.68

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal

710003153

$0.94

DPS

Female Terminal

278002187

$5.04

DPS

Terminal

710001873

$2.02

DRIVER PRES

Female Housing

515178474

$33.05

DRIVER PRES

Female Terminal 22 AWG

515178349

$1.82

FL-1

Fuse Link 41-50AMP

715002538

$23.05

FL-2

Fuse Link

710004228

Unavailable

FL-3

Fuse

710004226

Unavailable

FP

Male Housing, 4 Circuits

278002185

$5.86

FP

Lock

710001222

$1.68

FP

Lock

710006214

$0.75

FP

Wire Seal

278002186

$4.51

FP

Seal

710003153

$0.94

FP

Female Terminal

278002187

$5.04

FP

Terminal

710001873

$2.02

FRONT FW IC FAN F

Male Housing, 4 Circuits

278002185

$5.86

FRONT FW IC FAN F

Lock

710001222

$1.68

FRONT FW IC FAN F

Lock

710006214

$0.75

FRONT FW IC FAN F

Wire Seal

278002186

$4.51

FRONT FW IC FAN F

Female Terminal

278002187

$5.04

FRONT FW IC LED F CAP

Connector Guard

710007680

$9.23

FRONT FW IC LED F CAP

Housing

710001132

$9.60

FRONT FW IC LED F CAP

Lock

710001133

$4.12

FRONT FW IC LED F CAP

Seal

278001482

$2.55

FRONT FW IC LED F CAP

Female Terminal

710001134

$6.03

FRONT FW IC VIDEO F

Connector_TYCO Female 3 Cavities

710008501

$15.35

FRONT FW IC VIDEO F

Wire Seal

710001118

$1.19

FRONT FW IC VIDEO F

Female Terminal

710005876

$1.54

FRONT FW IC1 F

Housing

710001226

$11.83

FRONT FW IC1 F

Lock Connector

710007935

$10.14

FRONT FW IC1 F

Lock

710001222

$1.68

FRONT FW IC1 F

Cap

710001225

$7.27

FRONT FW IC1 F

Seal

710001233

$2.55

FRONT FW IC1 F

Seal Wire

710001332

$2.72

FRONT FW IC1 F

Terminal

710001229

$3.02

FRONT FW IC1 F

Terminal

710001228

$2.72

GPS F

Female Housing

710005295

$32.28

GPS F

Plug

515175812

$1.70

GPS F

Female Terminal

710001119

$4.32

HL SW

Housing

710002000

$5.86

HL SW

Terminal

710003047

$3.68

HL SW

Female Terminal

710005491

$1.54

HORN SW

Housing

710002000

$5.86

HORN SW

Female Terminal

710005491

$1.54

HORN SW

Terminal

710003047

$3.68

HUB ID LT

Plug

710007617

$15.35

HUB ID LT

Seal Joint

710007620

$6.52

HUB ID LT

Seal Joint

710007619

$6.52

HUB ID LT

Femal Terminal

710007658

$5.78

HUB ID LT

Femal Terminal

710007623

$2.23

HUB ID MT

Plug

710001593

$2.12

HUB ID MT

Female Terminal

710001727

$2.55

HUB ID ST

Cover

710007650

$35.35

HUB ID ST

Female Terminal Housing 53 Circuit

710007651

$46.12

HUB ID ST

Plug

710001592

$2.12

HUB ID ST

Female Terminal

710001589

$1.79

HUB ID ST

Terminal

710001728

$5.91

IMU

Housing

710003730

$14.75

IMU

Wire Seal

710001118

$1.19

IMU

Female Terminal

710010230

$8.35

IMU

Femal Terminal

710008356

$10.14

PADDLE SW

Male Housing, 4 Circuits

515177442

$11.89

PF1

Fuse Cover

278003553

$3.79

PF1

Fuses Decal

710010368

Unavailable

PF1

Fuse Base Ass'y

278003448

$26.62

PF1

Wire Seal

278000216

$2.55

PF1

Seal

293300198

$2.31

PF1

Wire Seal

278000218

$3.48

PF1

Wire Seal

710000048

$5.10

PF1

Wire Seal

278001065

$6.03

PF1

Female Terminal

515177177

$5.11

PF1

Female Terminal

710000918

$5.10

PF1

Female Terminal

278002578

$0.86

PF1 SP1

Little Fuse, 10 Amperes

710000744

$7.24

PF1 SP2

Little Fuse, 20 Amperes

710000746

$6.77

PF1 SP3

Little Fuse, 20 Amperes

710000746

$6.77

PF12

Fuse Holder

278001325

$8.57

PF12

Female Terminal

710000113

$6.03

PF12-F29

Fuse, 20 Amperes

409003900

$3.22

PF1-F11

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F12

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F14

Little Fuse, 20 Amperes

710000746

$6.77

PF1-F16

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F23

Little Fuse, 20 Amperes

710000746

$6.77

PF1-F7

Little Fuse, 10 Amperes

710000744

$7.24

PF1-R3

Relay, 30 AMP

515176774

$19.20

PF1-R4

Relay

715900824

$16.22

PF1-R8

Relay

715900824

$16.22

PF2

Cover

710007491

$17.66

PF2

Fuses Decal

710010349

Unavailable

PF2

Fusebox Ass'y

710005623

$46.12

PF2

Wire Seal

278000216

$2.55

PF2

Cap

710001631

$1.37

PF2

Seal

293300198

$2.31

PF2

Wire Seal

278000218

$3.48

PF2

Wire Seal

278001065

$6.03

PF2

Female Terminal

710000918

$5.10

PF2

Female Terminal

278002578

$0.86

PF2

Female Terminal

710000890

$3.73

PF2 2

Fuse Cover

278003553

$3.79

PF2 2

Fuses Decal

710008310

Unavailable

PF2 2

Fuse Base Ass'y

278003448

$26.62

PF2 2

Wire Seal

278000216

$2.55

PF2 2

Seal

293300198

$2.31

PF2 2

Wire Seal

278000218

$3.48

PF2 2

Wire Seal

278001065

$6.03

PF2 2

Female Terminal

710000918

$5.10

PF2 2

Female Terminal

278002578

$0.86

PF2 2

Female Terminal

710000890

$3.73

PF2 2 SP1

Little Fuse, 25 Ampere

278002389

$4.42

PF2 2 SP2

Little Fuse, 15 Ampere

710000745

$6.77

PF2 2 SP3

Little Fuse, 15 Ampere

710000745

$6.77

PF2 2-F27

Little Fuse, 25 Ampere

278002389

$4.42

PF2 2-F30

Little Fuse, 15 Ampere

710000745

$6.77

PF2 2-F31

Little Fuse, 15 Ampere

710000745

$6.77

PF2 2-F32

Little Fuse, 25 Ampere

278002389

$4.42

PF2 2-R10 2

Relay

715900824

$16.22

PF2 2-R5

Relay

715900824

$16.22

PF2 LT

Seal Joint

710003132

$0.85

PF2 LT

Terminal Joint

710001905

$1.83

PF2 LT

Terminal

710001636

$3.98

PF2 LT

F Terminal

710003125

$3.68

PF2 SP1

Little Fuse, 10 Amperes

710000744

$7.24

PF2 SP2

Little Fuse, 15 Ampere

710000745

$6.77

PF2 SP3

Little Fuse, 10 Amperes

710000744

$7.24

PF2 SP4

Little Fuse, 10 Amperes

710000744

$7.24

PF2 SP5

Little Fuse, 25 Ampere

278002389

$4.42

PF2-F17

Little Fuse, 25 Ampere

278002389

$4.42

PF2-F18

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F28

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F33

Little Fuse, 15 Ampere

710000745

$6.77

PF2-F34

Little Fuse, 25 Ampere

278002389

$4.42

PF2-F35

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F4

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F5

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F6

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F8

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F9

Little Fuse, 15 Ampere

710000745

$6.77

PF2-R1

Relay, 30 AMP

515176774

$19.20

PF2-R10

Relay

715900824

$16.22

PF2-R2

50 Amps Relay

710003143

$13.83

PF3

Fuse Holder

278001325

$8.57

PF3

Female Terminal

710000113

$6.03

PF3-F2

Fuse

710001613

$7.24

POST CUP -

Terminal

710007939

$15.35

POST CUP +

Terminal

710007939

$15.35

POST CUP ACC+

Terminal Eyelet

710008805

$73.82

POST DASH -

Terminal

710008716

$23.05

POST DASH +

Terminal

710008715

$8.29

POST DASH RING-

Open Barrel Terminal

278001392

$4.12

POST DASH RING+

Open Barrel Terminal

278001392

$4.12

PPS IC F

Housing

710001951

$12.91

PPS IC F

Lock

710001222

$1.68

PPS IC F

Lock

710006361

$0.75

PPS IC F

Cap

710001225

$7.27

PPS IC F

Seal

710001233

$2.55

PPS IC F

Terminal

710001229

$3.02

R1

Shrink Tubing, 6 mm

515177246

$1.02

R1

Resistor

710010264

Unavailable

REAR FW IC GND F

Insulated Sheath

278001007

$3.22

REAR FW IC GND F

Female Terminal | DS 650 X

278001009

$2.55

REAR FW IC RTX1

Housing

710001226

$11.83

REAR FW IC RTX1

Lock Connector

710007935

$10.14

REAR FW IC RTX1

Lock

710001222

$1.68

REAR FW IC RTX1

Cap

710001225

$7.27

REAR FW IC RTX1

Seal

710001233

$2.55

REAR FW IC RTX1

Seal Wire

710001332

$2.72

REAR FW IC RTX1

Terminal

710001229

$3.02

REAR FW IC RTX1

Terminal

710001228

$2.72

REAR FW IC RTX2

Connector_DELPHI Female 2 Cavities

710007586

$16.89

REAR FW IC RTX2

Lock Connector

710007583

$10.14

REAR FW IC RTX2

Seal Joint

710007584

$10.14

REAR FW IC RTX2

Terminal

710007585

$3.68

REAR FW IC TL F

Housing

710001928

$14.97

REAR FW IC TL F

Lock

710001222

$1.68

REAR FW IC TL F

Lock

710006181

$3.98

REAR FW IC TL F

Cap

710001225

$7.27

REAR FW IC TL F

Seal

710001233

$2.55

REAR FW IC TL F

Terminal

710001229

$3.02

REAR FW IC VIDEO F

Connector_TYCO Female 3 Cavities

710008501

$15.35

REAR FW IC VIDEO F

Wire Seal

710001118

$1.19

REAR FW IC VIDEO F

Female Terminal

710005876

$1.54

REAR FW IC3 F

Connector_DELPHI Female 8 Cavities

710007831

$16.89

REAR FW IC3 F

Lock

710007836

$13.83

REAR FW IC3 F

Lock

710001222

$1.68

REAR FW IC3 F

Wire Seal

278002186

$4.51

REAR FW IC3 F

Female Terminal

278002187

$5.04

SB

Housing

710002177

$3.98

SB

Lock

710002043

$0.85

SB

Seal

278001482

$2.55

SB

Female Terminal

710001134

$6.03

SS

Female Housing, 2 Circuits

515177192

$6.32

SS

Lock

710001152

$3.48

SS

Wire Seal

710001163

$5.10

SS

Female Terminal

710001164

$5.92

STEER KP

Female Housing

515177441

$16.89

STEER KP

Female Terminal

278002857

$0.74

TO BN BODY

Shrink Tubing, 6 mm

515177246

$1.02

TO BN BODY

Open Barrel

278000992

$1.79

XCU A

Cover

515178602

$4.80

XCU A

Housing 56 Circuits

515178618

Unavailable

XCU A

Plate

515178604

$3.63

XCU A

Plug

515178599

$2.60

XCU A

Plug

515178600

$2.60

XCU A

Plate

515178603

$3.63

XCU A

Terminal

515178596

$3.30

XCU A LT

Terminal

515178666

$4.60
