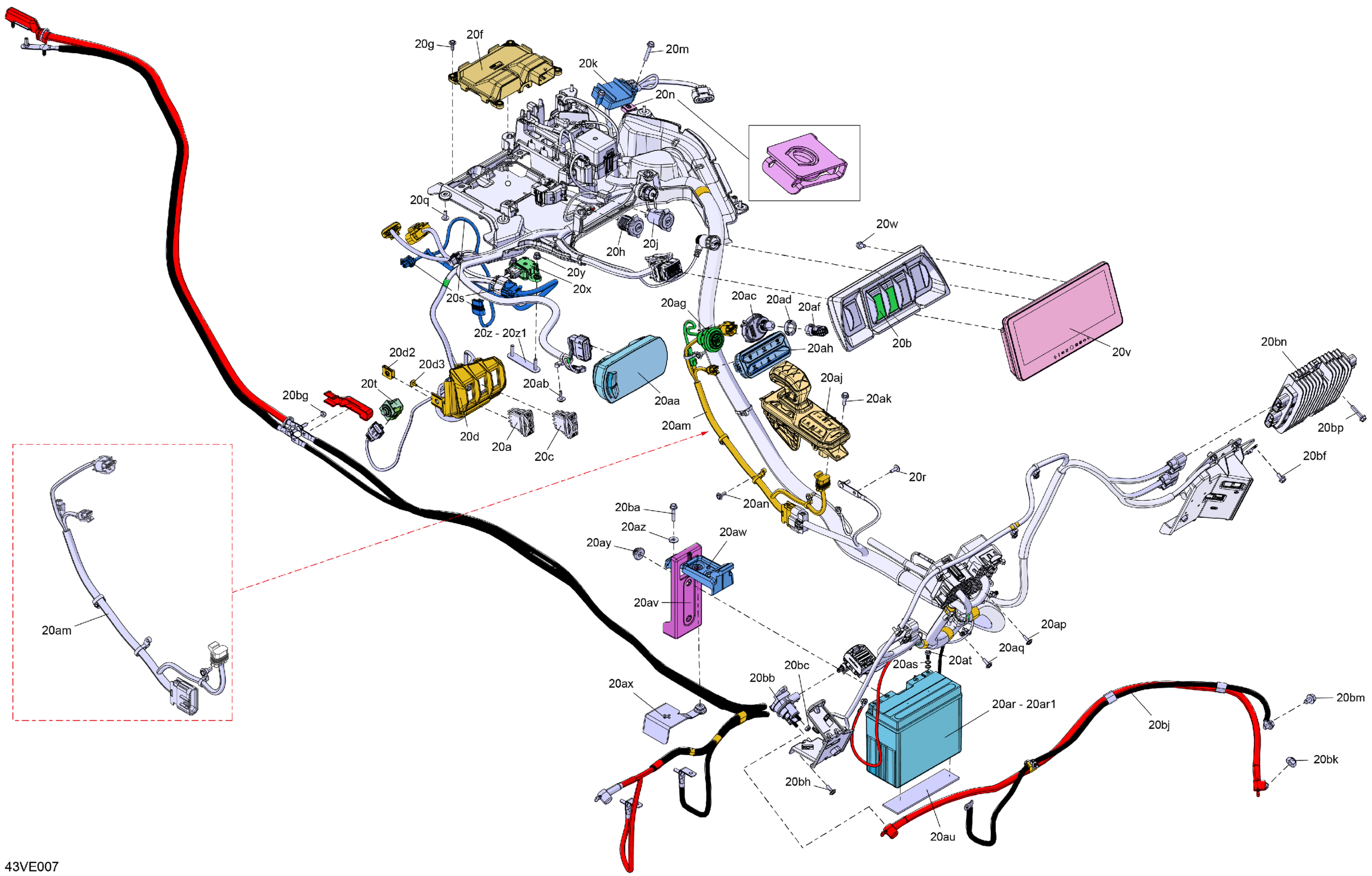

Can-Am CE - Maverick R MAX - 996NT2 - XRS STD - 7DSM - Timeless Black Metallic - 77" Width, 2025 Electric - Central Electric Diagram

Description

Price

20a

Light Switch

710007663

$46.12

20b

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

20c

Horn Switch

710007664

$23.05

20d

Switch Support Ass'y | Includes 20d to 20d3

710009476

$16.12

20d2

Panel Nut M6 X 1.0

250100208

$1.07

20d3

Plastite Screw M4 X 10

250000805

$1.74

20f

BCM Module OPT #2

710007494

$979.99

20g

Screw PT Type K-50 X 16

250000959

$1.74

20h

USB Outlet

219400510

$40.92

20j

12V Power Outlet

710005374

$27.27

20k

GPS

278004506

$85.77

20m

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74

20n

Panel Nut M6 X 1.0

250100208

$1.07

20q

Screw PT Type K-50 X 16

250000959

$1.74

20r

Screw PT Type K-50 X 16

250000959

$1.74

20s

Accelerator Pedal Wiring Harness

710008927

$216.89

20t

Door Switch

710010023

$73.82

20u

Screw PT Type K-50 X 16

250000959

$1.74

20v

Multifunction Gauge 10

710010375

$2,074.58

20w

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

20x

Inertial Sensor

710010113

$391.51

20y

Hex. Flange Elastic Nut M6

233261494

$1.26

20z

Sensor Support | Includes 1825 to 1825a

710009676

$15.22

20z1

Sensor Support ED

710009651

$15.22

20aa

Multifunction Compact Gauge

710008298

$364.58

20ab

Screw M4 X 16

250000725

$2.87

20ac

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

20ad

Specialized Nut

278004274

$2.72

20af

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

20ag

Start-Stop Button | Not Shown

710005213

$59.97

20ah

Multifunction Switch

710010056

$124.58

20aj

Electronic Gear Shift Lever

710007338

$304.58

20ak

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

20am

Console Wiring Harness

710007667

$96.89

20an

Screw PT Type K-50 X 16

250000959

$1.74

20ap

Screw M4 X 16

250000725

$2.87

20aq

Screw PT Type K-50 X 16

250000959

$1.74

20ar

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

20ar1

Battery Bolt Kit

250000282

$2.95

20as

Washer | Not Shown

710009082

$1.02

20at

Screw | Not Shown

710009084

$1.52

20au

Rubber Pad

293830126

$11.01

20av

Fixation Plate

710004788

$9.77

20aw

Battery Support

710009128

$6.92

20ax

Battery Cable Cap

710006471

$2.75

20ay

Stopper Rubber

705014429

$6.09

20az

Flat Washer 6 mm

234062410

$0.64

20ba

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

20bb

Starter Relay

278003012

$35.07

20bc

Elastic Stop Nut M6, Brass

232561200

$3.51

20bf

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

20bg

Elastic Stop Nut M6, Brass

232561200

$3.51

20bh

Screw PT Type K-50 X 16

250000959

$1.74

20bj

Starter Wiring Harness

710010036

$67.66

20bk

Elastic Stop Nut M6, Brass

232561200

$3.51

20bm

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

20bn

Voltage Regulator

710007558

$350.74

20bp

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74
